Craftsman 502.25417
The Craftsman 502.25417 is a tractor produced by Craftsman Lawn Tractors. It is equipped with a 357 cc 21.82 ci engine. The rated power output is 10 hp 7.5 kW. Transmission: 5 forward and 1 reverse. Operating weight: 360 lbs*Weight with bagger. 163 kg.
Engine Power
10 hp
7.5 kW
Fuel & Capacities
0.75 gal
2.8 L
Transmission
5 forward and 1 reverse
Operating Weight
360 lbs*Weight with bagger.
163 kg
Craftsman Lawn Tractors Craftsman 502.25417 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1989
Riding lawn mowerMurray built |
|---|---|
1989 | |
Riding lawn mower | |
Murray built | |
1989 | |
|---|---|
Riding lawn mower | |
Murray built |
Production | |
|---|---|
Distributor | Craftsman (a part of Sears) |
Manufacturer | Murray |
Riding lawn mower | |
Original price was $1,077 in 1989 | |
Craftsman 502.25417 Engine | |
|---|---|
10HP Tecumseh 357cc 1-cyl gasoline | |
Fuel tank | 0.75 gal
2.8 L |
Engine details ...  | |
Craftsman 502.25417 Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 360 lbs
163 kg |
Front tire | 11x4.0 |
Rear tire | 15x6.0 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Craftsman Lawn and Garden Riding Equipment and Attachments published in 1989, by Sears |
Engine
| 1989
Riding lawn mowerMurray built |
|---|---|
1989 | |
Riding lawn mower | |
Murray built | |
1989 | |
|---|---|
Riding lawn mower | |
Murray built |
Engine Detail — 357 cc / 21.82 ci Gasoline
Manufacturer | Tecumseh TVM220 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 357 cc
21.82 ci |
Bore/Stroke | 3.312x2.532 inches
84 x 64 mm |
Power (gross) | 10 hp
7.5 kW |
Starter | electric |
Starter volts | 12 |

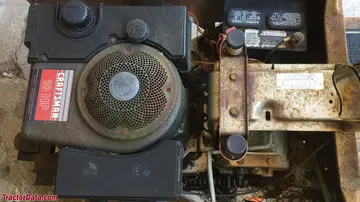

Craftsman 502.25417 Engine | |
|---|---|
 | |
Image courtesy of Todd Matthews |
Transmission
| 1989
Riding lawn mowerMurray built |
|---|---|
1989 | |
Riding lawn mower | |
Murray built | |
1989 | |
|---|---|
Riding lawn mower | |
Murray built |
Transmission — 5 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 5 forward and 1 reverse |
Dimensions
| 1989
Riding lawn mowerMurray built |
|---|---|
1989 | |
Riding lawn mower | |
Murray built | |
1989 | |
|---|---|
Riding lawn mower | |
Murray built |
Craftsman 502.25417 Tires | |
|---|---|
Lawn/turf front | 11x4.0 |
Lawn/turf rear | 15x6.0 |
Dimensions | |
|---|---|
Weight | 360 lbs*Weight with bagger.
163 kg |
Attachments
| 1989
Riding lawn mowerMurray built |
|---|---|
1989 | |
Riding lawn mower | |
Murray built | |
1989 | |
|---|---|
Riding lawn mower | |
Murray built |
30" Mower deck | |
|---|---|
Type | mid-mount Craftsman |
1-blade | |
Cutting width | 30 inches
76 cm |
Photos
Craftsman 502.25417
Craftsman 502.25417
Craftsman 502.25417
Craftsman 502.25417
Craftsman Lawn Tractors Craftsman 502.25417 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Craftsman Lawn Tractors Craftsman 502.25417.
Converted Equivalents:
Horsepower (HP)10 hp
Kilowatts (kW)7.5 kW
Metric Horsepower (PS / CV)10.1 PS
