craftsman lawn tractors 536 25767
 | 1994 - 1995
Lawn tractorMurray built | 1994 - 1995 | Lawn tractor | Murray built |
|---|---|---|---|---|
1994 - 1995 | ||||
Lawn tractor | ||||
Murray built | ||||
1994 - 1995 | |
|---|---|
Lawn tractor | |
Murray built |
Production | |
|---|---|
Distributor | Craftsman (a part of Sears) |
Manufacturer | Murray |
Lawn tractor | |
Craftsman 536.25767 Engine | |
|---|---|
15HP Briggs & Stratton 655cc 2-cyl gasoline | |
Fuel tank | 2 gal
7.6 L |
Engine details ...  | |
Craftsman 536.25767 Transmission | |
|---|---|
6-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual four-wheel steering | |
Open operator station. |
Photos | |
|---|---|
 | |

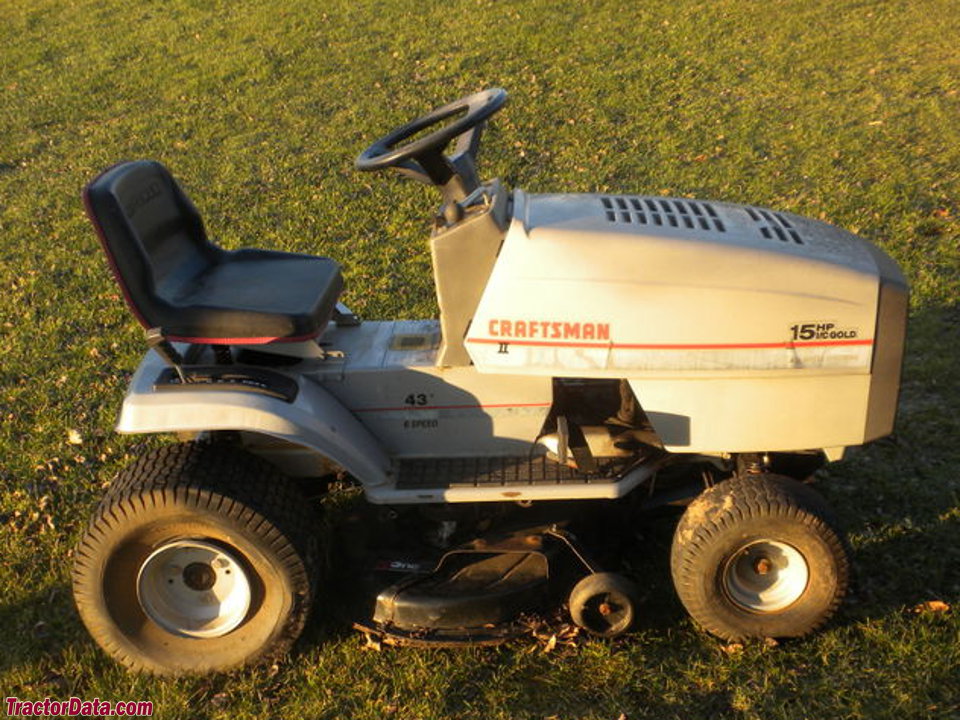

Craftsman 536.25767 photos...  |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | mechanical |
Dimensions & Tires | |
|---|---|
Front tire | 15x6x6 |
Rear tire | 20x10x8 |
Full dimensions and tires ...  | |
Craftsman 536.25767 attachments | |
|---|---|
43" mid-mount mower deck | |
Attachment details ...  |
536.25767 Serial Numbers | |
|---|---|
Location: | Serial number plate under the tractor's seat. |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 2.4 |
Battery volts | 12 |
References | |
|---|---|
 | |
Craftsman Lawn and Garden Rding Equipment published in 1994, by Sears |
