Craftsman 917.20391 T3200

The Craftsman 917.20391 T3200 is a tractor produced by Craftsman Lawn Tractors. It is equipped with a 724 cc 44.18 ci engine. The listed engine power is Gasoline (gross): 22 hp / 16.4 kW. Transmission: General Transmission RS800.

Engine Power

Gasoline (gross): 22 hp / 16.4 kW

Fuel & Capacities

3 gal 11.4 L

Transmission

General Transmission RS800

Overview

	2014 T3000 SeriesLawn tractorHusqvarna built T3000 Series Lawn tractor Husqvarna built

Production
Distributor	Craftsman (a part of Sears)
Manufacturer	Husqvarna
Lawn tractor
Original price was $2300 in 2014

Variants
20392	California emissions

Craftsman 917.20391 Engine
22HP Briggs & Stratton 724cc 2-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Craftsman 917.20391 Transmission
CVT
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	48 inches 121 cm
Front tire	15X6-6
Rear tire	20X8-8
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	15
Battery CCA	230
Battery volts	12
Battery AH	28
Battery Group	U1R

Engine

Engine Detail — 724 cc / 44.18 ci Gasoline

Fuel Type	Gasoline
Configuration	2-cylinder 4-valve, air-cooled vertical-shaft V-Twin
Briggs & Stratton Intek Platinum
Displacement	724 cc 44.18 ci
Bore/Stroke	3.12x2.89 inches 79 x 73 mm
Power (gross)	22 hp 16.4 kW
Starter	electric
Starter volts	12
Sparkplug	Champion RC12YC
Sparkplug gap	0.030 inches 0.762 mm
Oil capacity	2 qts 1.9 L
Oil change	50 h

Transmission

Transmission — General Transmission RS800

Transmission	General Transmission RS800
Type	belt-driven CVT
Gears	infinite forward and reverse
Oil change	sealed unit, owner service is not recommended

Dimensions

Craftsman 917.20391 Tires
Lawn/turf front	15X6-6
Lawn/turf rear	20X8-8

Dimensions
Wheelbase	48 inches 121 cm
Length	72.75 inches 184 cm
Width	49.5 inches 125 cm
Height	46 inches 116 cm
Front axle	Cast-iron

Attachments

Attachment overview
48" mid-mount mower deck
Snowblower
Blade

48" Mower deck
Type	mid-mount Craftsman
	3-blade with Hydraulic lift
Cutting width	48 inches 121 cm
Cut height	1 to 4 inch 2 to 10 cm
Cut positions	6

Photos

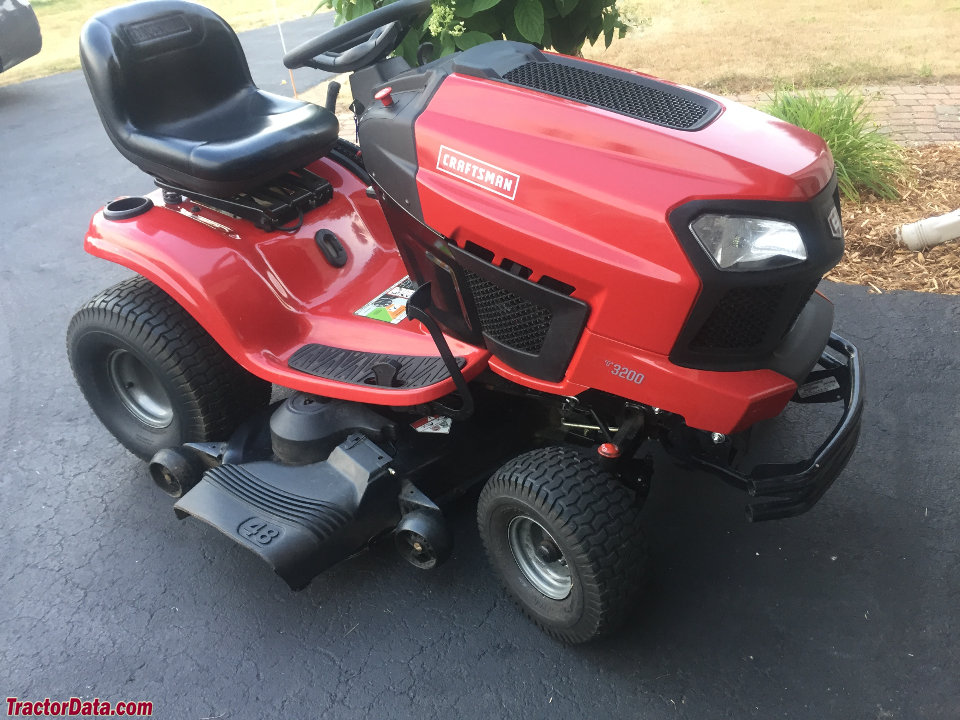

Craftsman 917.20391 T3200

Recommended Implements & Sizing Guide

Engineering recommendations for Craftsman Lawn Tractors Craftsman 917.20391 T3200 based on its 22 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.
Disc HarrowSecondary Tillage	5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)	Light Duty	Small acreage soil break-up and secondary aeration.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Craftsman Lawn Tractors Craftsman 917.20391 T3200.

Estimated Continuous Field Runtime: 2.6 hrs

Approximately 2.6 hours of continuous field operation at ~75% rated power on a full tank (3 gal / 11.4 L).

Estimated 75% Load Fuel Burn~1.1 gal/hr (4.3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Craftsman Lawn Tractors Craftsman 917.20391 T3200 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Craftsman Lawn Tractors Craftsman 917.20391 T3200.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)22 hp

Kilowatts (kW)16.4 kW

Metric Horsepower (PS / CV)22.3 PS
