Craftsman 917.25545
The Craftsman 917.25545 is a tractor produced by Craftsman Lawn Tractors. It is equipped with a 398 cc 24.3 ci engine. The rated power output is 14 hp 10.4 kW. Transmission: Dana 4360. Operating weight: 562 lbs 254 kg.
Engine Power
14 hp
10.4 kW
Fuel & Capacities
3.5 gal
13.2 L
Transmission
Dana 4360
Operating Weight
562 lbs
254 kg
Craftsman Lawn Tractors Craftsman 917.25545 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1993 - 1994
LT4000 SeriesLawn tractorAYP built |
|---|---|
1993 - 1994 | |
LT4000 Series | |
Lawn tractor | |
AYP built | |
1993 - 1994 | |
|---|---|
LT4000 Series | |
Lawn tractor | |
AYP built |
Production | |
|---|---|
Distributor | Craftsman (a part of Sears) |
Manufacturer | AYP |
Lawn tractor | |
Original price was $1,799 in 1993 | |
Craftsman 917.25545 Engine | |
|---|---|
14HP Kohler 398cc 1-cyl gasoline | |
Fuel tank | 3.5 gal
13.2 L |
Engine details ...  | |
Craftsman 917.25545 Transmission | |
|---|---|
6-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual idler pulley |
Dimensions & Tires | |
|---|---|
Weight | 562 lbs
254 kg |
Front tire | 15x6.00-6 |
Rear tire | 20x10.00-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 3 (battery) |
5 (lights) | |
Battery volts | 12 |
References | |
|---|---|
 | |
Lawn & Garden Catalog published in 1993, by Sears | |
1993 Spring/Summer Annual published by Sears |
Engine
| 1993 - 1994
LT4000 SeriesLawn tractorAYP built |
|---|---|
1993 - 1994 | |
LT4000 Series | |
Lawn tractor | |
AYP built | |
1993 - 1994 | |
|---|---|
LT4000 Series | |
Lawn tractor | |
AYP built |
Engine Detail — 398 cc / 24.3 ci Gasoline
Manufacturer | Kohler CV14S |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 398 cc
24.3 ci |
Bore/Stroke | 3.43x2.64 inches
87 x 67 mm |
Power | 14 hp
10.4 kW |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RC12YC |
Sparkplug gap | 0.030 inches
0.762 mm |
Oil capacity | 2 qts
1.9 L |

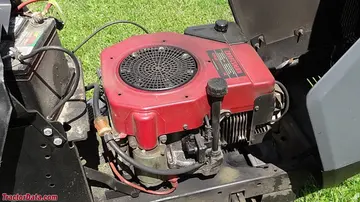

Craftsman 917.25545 Engine | |
|---|---|
 | |
Image courtesy of Larry Long |
Transmission
| 1993 - 1994
LT4000 SeriesLawn tractorAYP built |
|---|---|
1993 - 1994 | |
LT4000 Series | |
Lawn tractor | |
AYP built | |
1993 - 1994 | |
|---|---|
LT4000 Series | |
Lawn tractor | |
AYP built |
Transmission — Dana 4360
Transmission | Dana 4360 |
Type | belt-driven gear |
Gears | 6 forward and 1 reverse |
 | |
Dimensions
| 1993 - 1994
LT4000 SeriesLawn tractorAYP built |
|---|---|
1993 - 1994 | |
LT4000 Series | |
Lawn tractor | |
AYP built | |
1993 - 1994 | |
|---|---|
LT4000 Series | |
Lawn tractor | |
AYP built |
Craftsman 917.25545 Tires | |
|---|---|
Lawn/turf front | 15x6.00-6 |
Lawn/turf rear | 20x10.00-8 |
Dimensions | |
|---|---|
Shipping weight | 562 lbs
254 kg |
Attachments
| 1993 - 1994
LT4000 SeriesLawn tractorAYP built |
|---|---|
1993 - 1994 | |
LT4000 Series | |
Lawn tractor | |
AYP built | |
1993 - 1994 | |
|---|---|
LT4000 Series | |
Lawn tractor | |
AYP built |
42" Mower deck | |
|---|---|
Type | mid-mount Craftsman |
2-blade with manual lift | |
Cutting width | 42 inches
106 cm |
Photos
Craftsman 917.25545
Craftsman 917.25545
Craftsman 917.25545 showing engine.
Craftsman 917.25545 with 486.24412 snow blade.
Craftsman Lawn Tractors Craftsman 917.25545 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Craftsman Lawn Tractors Craftsman 917.25545.
Converted Equivalents:
Horsepower (HP)14 hp
Kilowatts (kW)10.4 kW
Metric Horsepower (PS / CV)14.2 PS
