Craftsman 917.25554
The Craftsman 917.25554 is a tractor produced by Craftsman Lawn Tractors. It is equipped with a 480 cc 29.3 ci engine. The rated power output is 14 hp 10.4 kW. Transmission: Dana 4360-7. Operating weight: 559 lbs 253 kg.
Engine Power
14 hp
10.4 kW
Fuel & Capacities
2 gal
7.6 L
Transmission
Dana 4360-7
Operating Weight
559 lbs
253 kg
Craftsman Lawn Tractors Craftsman 917.25554 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1991
LT 4000 SeriesLawn tractorAYP built |
|---|---|
1991 | |
LT 4000 Series | |
Lawn tractor | |
AYP built | |
1991 | |
|---|---|
LT 4000 Series | |
Lawn tractor | |
AYP built |
Production | |
|---|---|
Distributor | Craftsman (a part of Sears) |
Manufacturer | AYP |
Lawn tractor | |
Original price was $1,597 in 1991 | |
Craftsman 917.25554 Engine | |
|---|---|
14HP Vanguard 480cc 2-cyl gasoline | |
Fuel tank | 2 gal
7.6 L |
Engine details ...  | |
Craftsman 917.25554 Transmission | |
|---|---|
6-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Mid PTO Type | pulley |
Dimensions & Tires | |
|---|---|
Weight | 559 lbs
253 kg |
Front tire | 15x6-6 |
Rear tire | 18x9.5-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 16 |
Battery volts | 12 |
Engine
| 1991
LT 4000 SeriesLawn tractorAYP built |
|---|---|
1991 | |
LT 4000 Series | |
Lawn tractor | |
AYP built | |
1991 | |
|---|---|
LT 4000 Series | |
Lawn tractor | |
AYP built |
Engine Detail — 480 cc / 29.3 ci Gasoline
Manufacturer | Vanguard 303777 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 480 cc
29.3 ci |
Power (gross) | 14 hp
10.4 kW |
Air cleaner | 2.68x2.60 |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RJ-19LM |
Sparkplug gap | 0.030 inches
0.762 mm |
Oil capacity | 1.75 qts
1.7 L |
Oil change | 50 h |

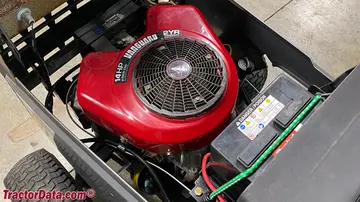

Craftsman 917.25554 Engine | |
|---|---|
 | |
Image courtesy of Christopher Antonellis |
Transmission
| 1991
LT 4000 SeriesLawn tractorAYP built |
|---|---|
1991 | |
LT 4000 Series | |
Lawn tractor | |
AYP built | |
1991 | |
|---|---|
LT 4000 Series | |
Lawn tractor | |
AYP built |
Transmission — Dana 4360-7
Transmission | Dana 4360-7 |
Type | belt-driven gear |
Gears | 6 forward and 1 reverse |
 | |
Dimensions
| 1991
LT 4000 SeriesLawn tractorAYP built |
|---|---|
1991 | |
LT 4000 Series | |
Lawn tractor | |
AYP built | |
1991 | |
|---|---|
LT 4000 Series | |
Lawn tractor | |
AYP built |
Craftsman 917.25554 Tires | |
|---|---|
Lawn/turf front | 15x6-6 |
Lawn/turf rear | 18x9.5-8 |
Dimensions | |
|---|---|
Weight | 559 lbs
253 kg |
Attachments
| 1991
LT 4000 SeriesLawn tractorAYP built |
|---|---|
1991 | |
LT 4000 Series | |
Lawn tractor | |
AYP built | |
1991 | |
|---|---|
LT 4000 Series | |
Lawn tractor | |
AYP built |
38" Mower deck | |
|---|---|
Type | mid-mount Craftsman |
2-blade with manual lift | |
Cutting width | 38 inches
96 cm |
Belt | AYP 106085X |
Cut height | 1.5 to 4 inch
3 to 10 cm |
Photos
Sears Craftsman 917.255540, right side.
Sears Craftsman 917.255540, left side.
Sears Craftsman 917.255540, rear view.
Craftsman Lawn Tractors Craftsman 917.25554 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Craftsman Lawn Tractors Craftsman 917.25554.
Converted Equivalents:
Horsepower (HP)14 hp
Kilowatts (kW)10.4 kW
Metric Horsepower (PS / CV)14.2 PS
