Craftsman 917.27310
The Craftsman 917.27310 is a tractor produced by Craftsman Lawn Tractors. It is equipped with a 624 cc 38.1 ci engine. The rated power output is 22 hp 16.4 kW. Transmission: Hydro-Gear 222-3010.
Engine Power
22 hp
16.4 kW
Fuel & Capacities
3.5 gal
13.2 L
Transmission
Hydro-Gear 222-3010
Craftsman Lawn Tractors Craftsman 917.27310 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2000
Garden tractorAYP built |
|---|---|
2000 | |
Garden tractor | |
AYP built | |
2000 | |
|---|---|
Garden tractor | |
AYP built |
Production | |
|---|---|
Distributor | Craftsman (a part of Sears) |
Manufacturer | AYP |
Garden tractor | |
Original price was $3,100 in 2000 | |
Variants | |
|---|---|
27309 | gear |
27310 | hydrostatic |
Craftsman 917.27310 Engine | |
|---|---|
22HP Kohler 624cc 2-cyl gasoline | |
Fuel tank | 3.5 gal
13.2 L |
Engine details ...  | |
Craftsman 917.27310 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 15 |
Battery CCA | 280 |
Battery volts | 12 |
Battery AH | 35 |
Battery Group | U1R |
Engine
| 2000
Garden tractorAYP built |
|---|---|
2000 | |
Garden tractor | |
AYP built | |
2000 | |
|---|---|
Garden tractor | |
AYP built |
Engine Detail — 624 cc / 38.1 ci Gasoline
Manufacturer | Kohler CV22S |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 624 cc
38.1 ci |
Bore/Stroke | 3.03x2.64 inches
77 x 67 mm |
Power (gross) | 22 hp
16.4 kW |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RC12YC |
Sparkplug gap | 0.030 inches
0.762 mm |
Oil capacity | 2.1 qts
2.0 L |
Oil change | 25 h |
Transmission
| 2000
Garden tractorAYP built |
|---|---|
2000 | |
Garden tractor | |
AYP built | |
2000 | |
|---|---|
Garden tractor | |
AYP built |
Transmission — Hydro-Gear 222-3010
Transmission | Hydro-Gear 222-3010 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
Oil change | sealed unit, owner service is not recommended |
 | |
Dimensions
| 2000
Garden tractorAYP built |
|---|---|
2000 | |
Garden tractor | |
AYP built | |
2000 | |
|---|---|
Garden tractor | |
AYP built |
Craftsman 917.27310 Tires |
|---|
Dimensions |
|---|
Attachments
| 2000
Garden tractorAYP built |
|---|---|
2000 | |
Garden tractor | |
AYP built | |
2000 | |
|---|---|
Garden tractor | |
AYP built |
50" Mower deck | |
|---|---|
Type | mid-mount Sears |
3-blade | |
Cutting width | 50 inches
127 cm |
Photos

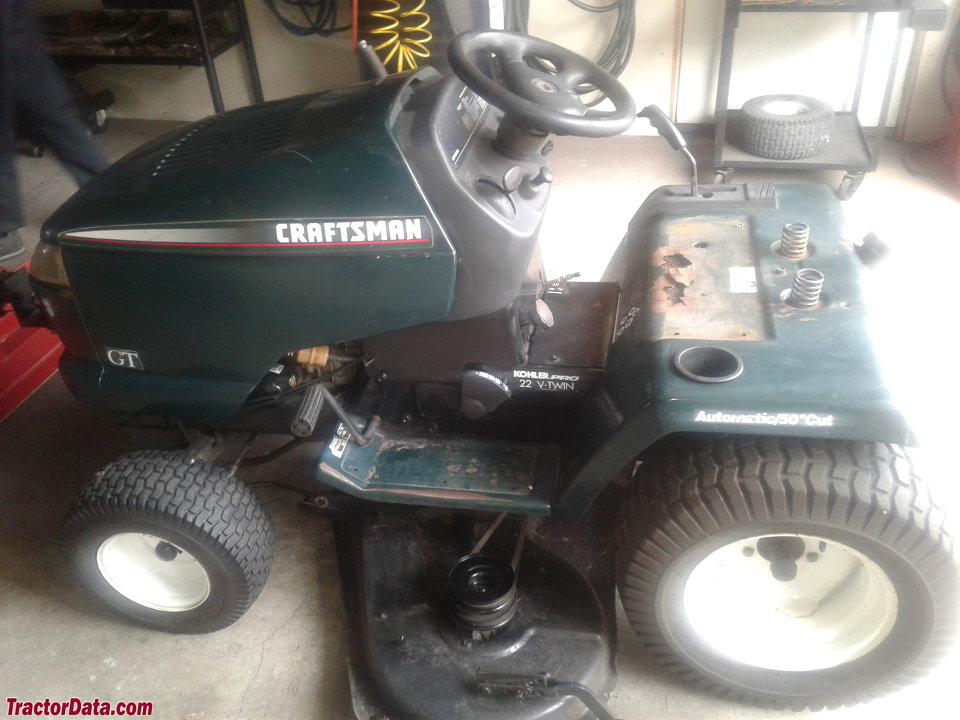

Craftsman 917.27310
Craftsman Lawn Tractors Craftsman 917.27310 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Craftsman Lawn Tractors Craftsman 917.27310.
Converted Equivalents:
Horsepower (HP)22 hp
Kilowatts (kW)16.4 kW
Metric Horsepower (PS / CV)22.3 PS
