Craftsman T105 CMXGRAM7821242
The Craftsman T105 CMXGRAM7821242 is a tractor produced by Craftsman Lawn Tractors. It is equipped with a 439 cc 26.79 ci engine. The rated power output is 9.5 hp 7.1 kW. Transmission: 7 forward and reverse. Operating weight: 510 lbs 231 kg.
Engine Power
9.5 hp
7.1 kW
Fuel & Capacities
1.3 gal
4.9 L
Transmission
7 forward and reverse
Operating Weight
510 lbs
231 kg
Craftsman Lawn Tractors Craftsman T105 CMXGRAM7821242 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2019 - 2020
Lawn tractorMTD built |
|---|---|
2019 - 2020 | |
Lawn tractor | |
MTD built | |
2019 - 2020 | |
|---|---|
Lawn tractor | |
MTD built |
Production | |
|---|---|
Distributor | Craftsman (a part of Stanley) |
Manufacturer | MTD |
Lawn tractor | |
Built in Willard, Ohio, USA | |
Craftsman T105 Engine | |
|---|---|
9.5HP Chongqing Zongshen 439cc 1-cyl gasoline | |
Fuel tank | 1.3 gal
4.9 L |
Engine details ...  | |
Craftsman T105 Transmission | |
|---|---|
7-speed CVT | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Weight | 510 lbs
231 kg |
Front tire | 15x6-6 |
Rear tire | 20x8-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
| 2019 - 2020
Lawn tractorMTD built |
|---|---|
2019 - 2020 | |
Lawn tractor | |
MTD built | |
2019 - 2020 | |
|---|---|
Lawn tractor | |
MTD built |
Engine Detail — 439 cc / 26.79 ci Gasoline
Manufacturer | Chongqing Zongshen 7T90HU |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 439 cc
26.79 ci |
Bore/Stroke | 3.54x2.60 inches
90 x 66 mm |
Power | 9.5 hp
7.1 kW |
Starter | electric |
Starter volts | 12 |
Transmission
| 2019 - 2020
Lawn tractorMTD built |
|---|---|
2019 - 2020 | |
Lawn tractor | |
MTD built | |
2019 - 2020 | |
|---|---|
Lawn tractor | |
MTD built |
Transmission — 7 forward and reverse belt-driven CVT
Type | belt-driven CVT |
Gears | 7 forward and reverse |

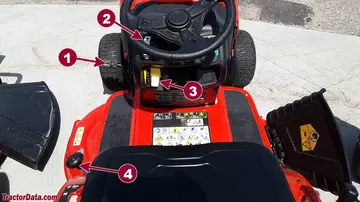

Craftsman T105 Transmission | |
|---|---|
 | |
1 | Clutch/Brake |
2 | Throttle |
3 | Speed set/parking brake |
4 | Forward/reverse |
Dimensions
| 2019 - 2020
Lawn tractorMTD built |
|---|---|
2019 - 2020 | |
Lawn tractor | |
MTD built | |
2019 - 2020 | |
|---|---|
Lawn tractor | |
MTD built |
Craftsman T105 Tires | |
|---|---|
Lawn/turf front | 15x6-6 |
Lawn/turf rear | 20x8-8 |
Dimensions | |
|---|---|
Weight | 510 lbs
231 kg |
Attachments
| 2019 - 2020
Lawn tractorMTD built |
|---|---|
2019 - 2020 | |
Lawn tractor | |
MTD built | |
2019 - 2020 | |
|---|---|
Lawn tractor | |
MTD built |
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
Snowblower | |
Blade |
42" Mower deck | |
|---|---|
Type | mid-mount Craftsman |
2-blade with manual lift | |
Cutting width | 42 inches
106 cm |
Photos
Craftsman T105 CMXGRAM7821242
Craftsman T105 CMXGRAM7821242
Craftsman T105 CMXGRAM7821242
Craftsman T105 CMXGRAM7821242
Craftsman T105 CMXGRAM7821242
Craftsman Lawn Tractors Craftsman T105 CMXGRAM7821242 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Craftsman Lawn Tractors Craftsman T105 CMXGRAM7821242.
Converted Equivalents:
Horsepower (HP)9.5 hp
Kilowatts (kW)7.1 kW
Metric Horsepower (PS / CV)9.6 PS
