Cub Cadet 1002
The Cub Cadet 1002 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 399 cc 24.36 ci engine. The listed engine power is Gasoline (listed): 10 hp / 7.5 kW. Transmission: 8 forward and 1 reverse. Operating weight: 377 lbs 171 kg.
Engine Power
Gasoline (listed): 10 hp / 7.5 kW
Fuel & Capacities
Gasoline
Transmission
8 forward and 1 reverse
Operating Weight
377 lbs
171 kg
Overview
 | 1990 - 1991
Riding lawn mower |
|---|
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Riding lawn mower | |
Cub Cadet 1002 Engine | |
|---|---|
10HP Briggs & Stratton 399cc 1-cyl gasoline | |
Engine details ...  |
Cub Cadet 1002 Transmission | |
|---|---|
8-speed CVT | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Weight | 377 lbs
171 kg |
Front tire | 12x5 |
Rear tire | 16x6.5-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Battery CCA | 125 |
Battery volts | 12 |
References | |
|---|---|
 | |
1991 Product Line published by Cub Cadet | |
Cub Cadet Riding Mowers published in 1991 |
Engine
Engine Detail — 399 cc / 24.36 ci Gasoline
Manufacturer | Briggs & Stratton 256707 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 399 cc
24.36 ci |
Bore/Stroke | 3.44x2.62 inches
87 x 67 mm |
Power | 10 hp
7.5 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 8 forward and 1 reverse belt-driven CVT
Type | belt-driven CVT |
Gears | 8 forward and 1 reverse |
Dimensions
Cub Cadet 1002 Tires | |
|---|---|
Lawn/turf front | 12x5 |
Lawn/turf rear | 16x6.5-8 |
Dimensions | |
|---|---|
Weight | 377 lbs
171 kg |
Front axle | Cast-iron: 0.75 inch diameter
19 mm |
Attachments
32" Mower deck | |
|---|---|
Type | mid-mount Cub Cadet |
2-blade | |
Cutting width | 32 inches
81 cm |
Photos

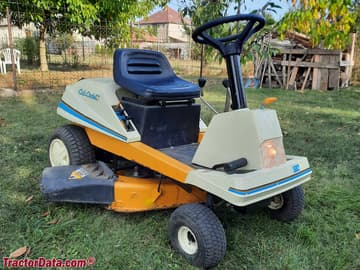

Cub Cadet 1002

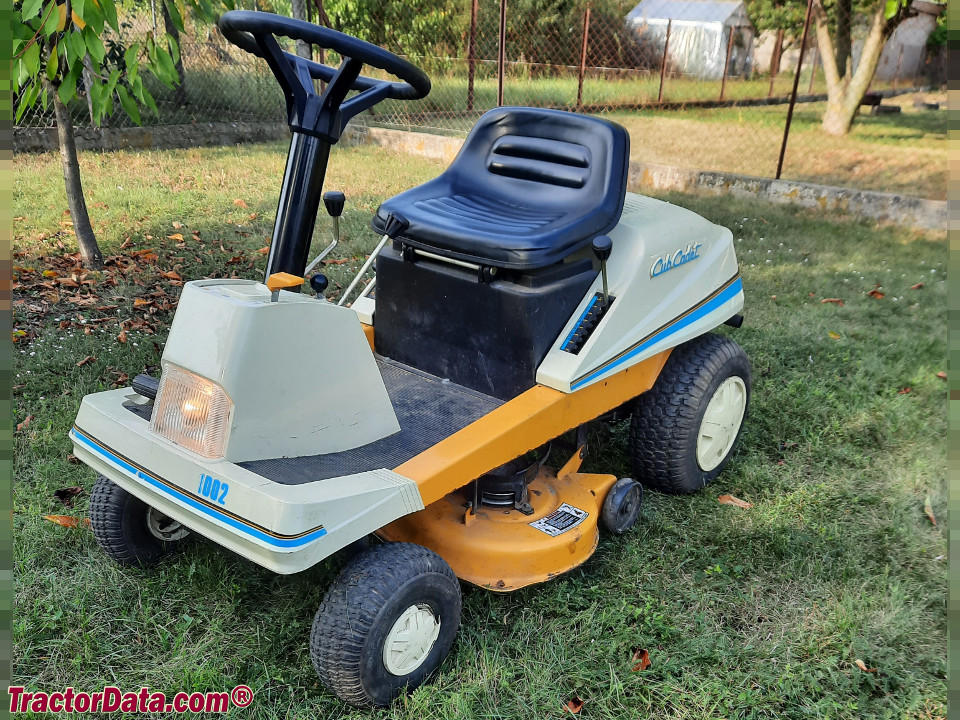

Cub Cadet 1002

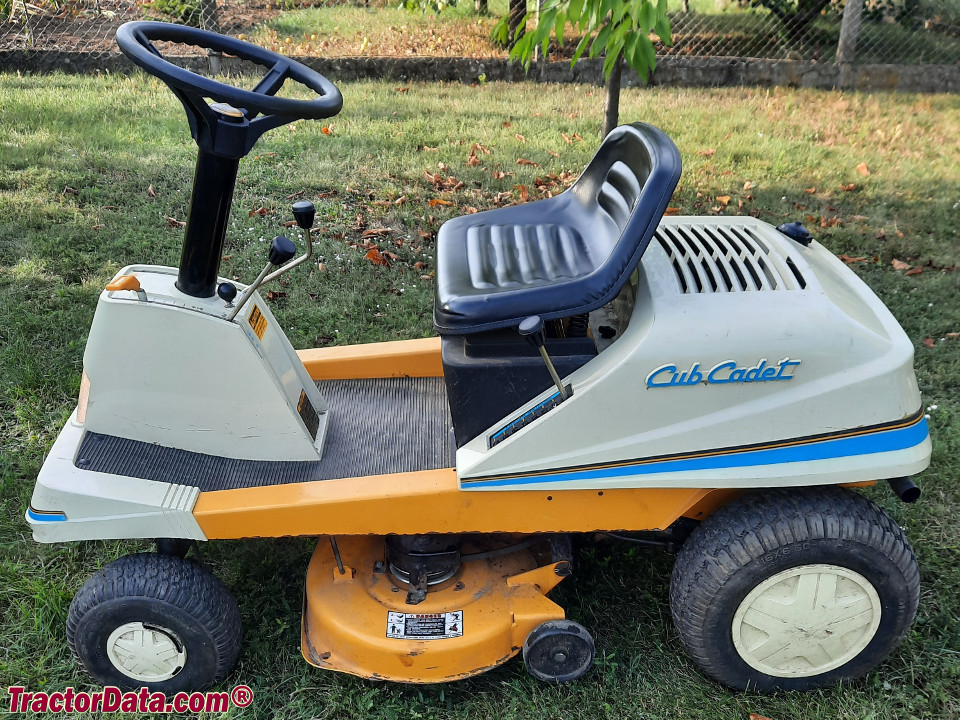

Cub Cadet 1002
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet 1002.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Cub Cadet Lawn Tractors Cub Cadet 1002 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet 1002.
Converted Equivalents:
Horsepower (HP)10 hp
Kilowatts (kW)7.5 kW
Metric Horsepower (PS / CV)10.1 PS
