Cub Cadet 1015
The Cub Cadet 1015 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 399 cc 24.36 ci engine. The rated power output is 10 hp 7.5 kW. Transmission: 5 forward and 1 reverse. Operating weight: 398 to 521 pounds.
Engine Power
10 hp
7.5 kW
Fuel & Capacities
3 gal
11.4 L
Transmission
5 forward and 1 reverse
Operating Weight
521 lbs*Weight with mower deck.
236 kg
Cub Cadet Lawn Tractors Cub Cadet 1015 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1988 - 1991
Lawn tractor |
|---|---|
1988 - 1991 | |
Lawn tractor | |
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Lawn tractor | |
Original price was $2,119 in 1991 | |
Variants | |
|---|---|
1015 | gear-drive |
1020 | hydrostatic |
Cub Cadet 1015 Engine | |
|---|---|
10HP Briggs & Stratton 399cc 1-cyl gasoline | |
Fuel tank | 3 gal
11.4 L |
Engine details ...  | |
Cub Cadet 1015 Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical disc brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Wheelbase | 45 inches
114 cm |
Weight | 398 to 521 pounds |
Front tire | 15x6-6 |
Rear tire | 18x8.5-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Battery volts | 12 |
References | |
|---|---|
 | |
Lawn Tractors & Riding Mowers published in 1989, by Cub Cadet | |
The Rugged Cub Cadet Lawn Tractor published in 1991 | |
1991 Product Line published by Cub Cadet | |
Anniversary Sale Bonanza! published in 1991, by Cub Cadet | |
Service Manual Lawn Tractors (772-3870) published in 1990 |
Engine
Engine Detail — 399 cc / 24.36 ci Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 399 cc
24.36 ci |
Bore/Stroke | 3.44x2.62 inches
87 x 67 mm |
Power (gross) | 10 hp
7.5 kW |
Starter | electric |
Starter volts | 12 |
Sparkplug gap | 0.030 inches
0.762 mm |
Oil capacity | 1.5 qts
1.4 L |
Oil change | 25 h |
Transmission
Transmission — 5 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 5 forward and 1 reverse |
 | |
Dimensions
Cub Cadet 1015 Tires | |
|---|---|
Lawn/turf front | 15x6-6 |
Lawn/turf rear | 18x8.5-8 |
Dimensions | |
|---|---|
Wheelbase | 45 inches
114 cm |
Length | 68.5 inches
173 cm |
Height (steering wheel) | 40 inches
101 cm |
Shipping weight | 398 lbs
180 kg |
Operating weight | 521 lbs*Weight with mower deck.
236 kg |
Attachments
Attachment overview | |
|---|---|
32" mid-mount mower deck | |
Snowblower | |
Blade | |
In addition to the 32-inch mower deck, the Cub Cadet 1015 could be equipped with a 6.5 bushel twin-bag rear bagger. A 32-inch de-thatcher (190-338) and a 32- or 38-inch pull-behind lawn sweeper. |
32" Mower deck | |
|---|---|
Type | mid-mount Cub Cadet |
2-blade with manual lift | |
Cutting width | 32 inches
81 cm |
Cut height | 1.5 to 4 inch
3 to 10 cm |
Photos

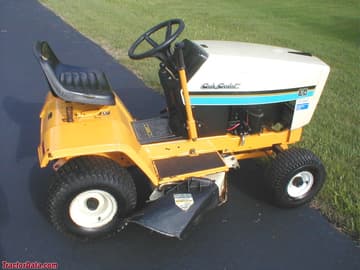

Cub Cadet 1015

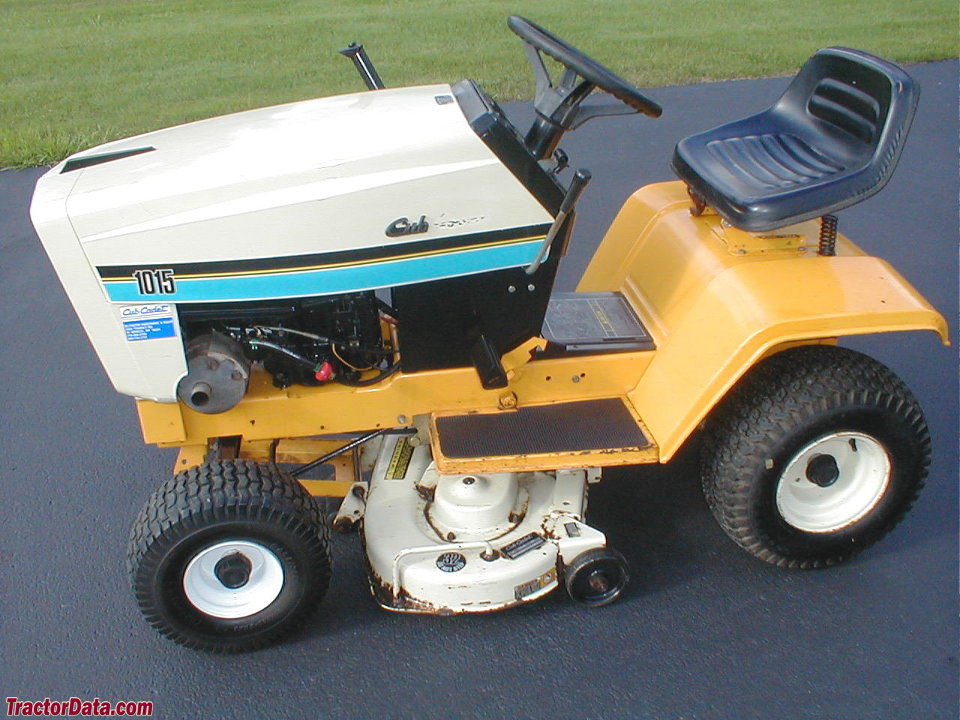

Cub Cadet 1015
