Cub Cadet 102

The Cub Cadet 102 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 391 cc 23.9 ci engine. The listed engine power is Gasoline (listed): 10 hp / 7.5 kW. Transmission: creeper. Operating weight: 605 lbs 274 kg.

Engine Power
Gasoline (listed): 10 hp / 7.5 kW
Fuel & Capacities
1.625 gal 6.2 L
Transmission
creeper
Operating Weight
605 lbs 274 kg

Overview

Cub Cadet 102 tractor photo
1965 - 1967 1X2/1X3 SeriesGarden tractor 1X2/1X3 Series Garden tractor
Production
Manufacturer
Cub Cadet (a part of International Harvester)
Garden tractor
Built in Louisville, Kentucky, USA
Cub Cadet 102 Engine
10HP Kohler 391cc 1-cyl gasoline
Fuel tank
1.625 gal 6.2 L
Engine details ...
Mechanical
Two-wheel drive
Steering
manual
Dry disc brakes
Open operator station.
Power Take-off (PTO)
Rear PTO
transmission
Front PTO
independent
Clutch
mechanical
Dimensions & Tires
Wheelbase
43 inches 109 cm
Weight
605 lbs 274 kg
Front tire
4.80x4.00-8
Rear tire
6-12
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
generator
Battery volts
12
References
102 references literature
International Cub Cadet Lawn and Garden Tractor published in 1964
Operator's Manual Rotary Mowers (1019804R3) published in 1965

Engine

Engine Detail — 391 cc / 23.9 ci Gasoline

Manufacturer
Kohler K241AS
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled
Displacement
391 cc 23.9 ci
Bore/Stroke
3.25x2.875 inches 83 x 73 mm
Power
10 hp 7.5 kW
Compression
7:1
Rated RPM
3600
Starter volts
12

Transmission

Transmission options
3-speed gear
6-speed

Transmission — 3 forward and 1 reverse shaft-driven gear

Type
shaft-driven gear
Gears
3 forward and 1 reverse
Clutch
114.3mm dry disc
102 shaft-driven gear speeds
Transmission
Transmission
creeper
Gears
6 forward and 2 reverse
102 creeper speeds

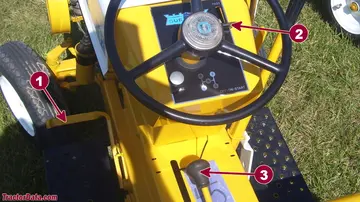

102 Transmission Controls
Cub Cadet 102 transmission controls
1
Clutch/brake
2
Throttle
3
Gear shift

Dimensions

Cub Cadet 102 Tires
Lawn/turf front
4.80x4.00-8
Lawn/turf rear
6-12
Lawn/turf front
16x6.50-8
Lawn/turf rear
23x8.50-12
Dimensions
Wheelbase
43 inches 109 cm
Length
63 inches 160 cm
Width
33.3 inches 84 cm
Height (steering wheel)
40 inches 101 cm
Weight
605 lbs 274 kg
Ground clearance
6 inches 15 cm
Front axle
Cast-iron
Front tread
27 inches 68 cm
Rear tread
27 inches 68 cm

Attachments

Attachment overview
38" mid-mount mower deck
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

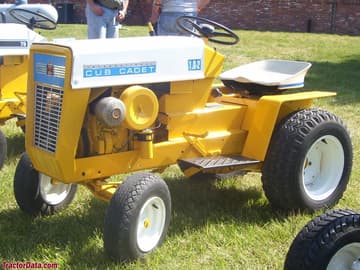

Cub Cadet 102, front-left view

Cub Cadet 102, front-left view

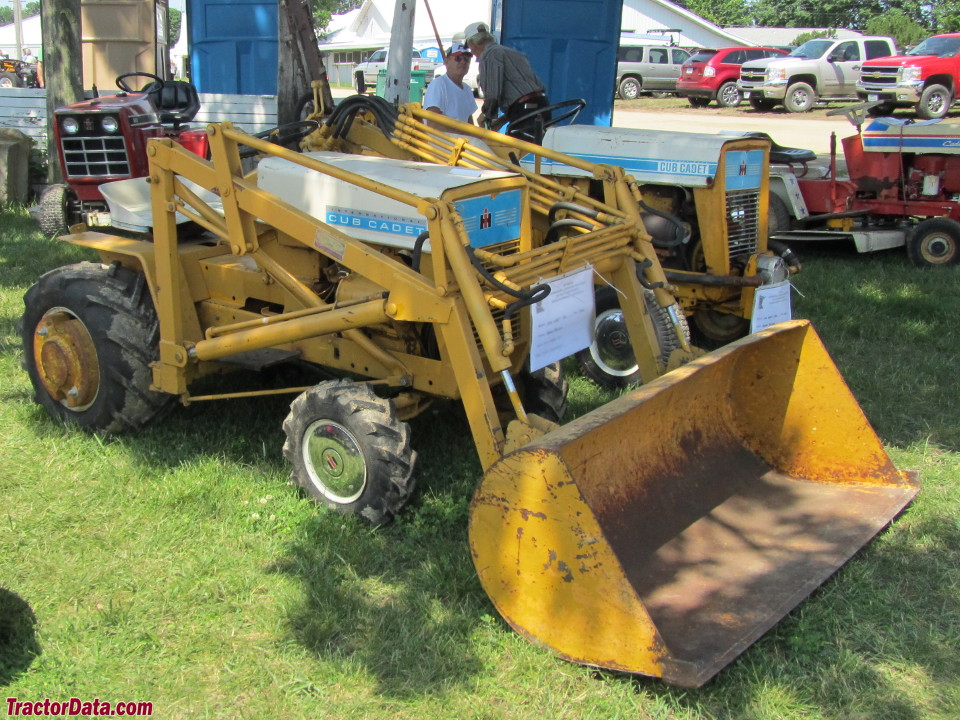

Cub Cadet 102 with Kwik-Way front loader

Cub Cadet 102 with Kwik-Way front loader

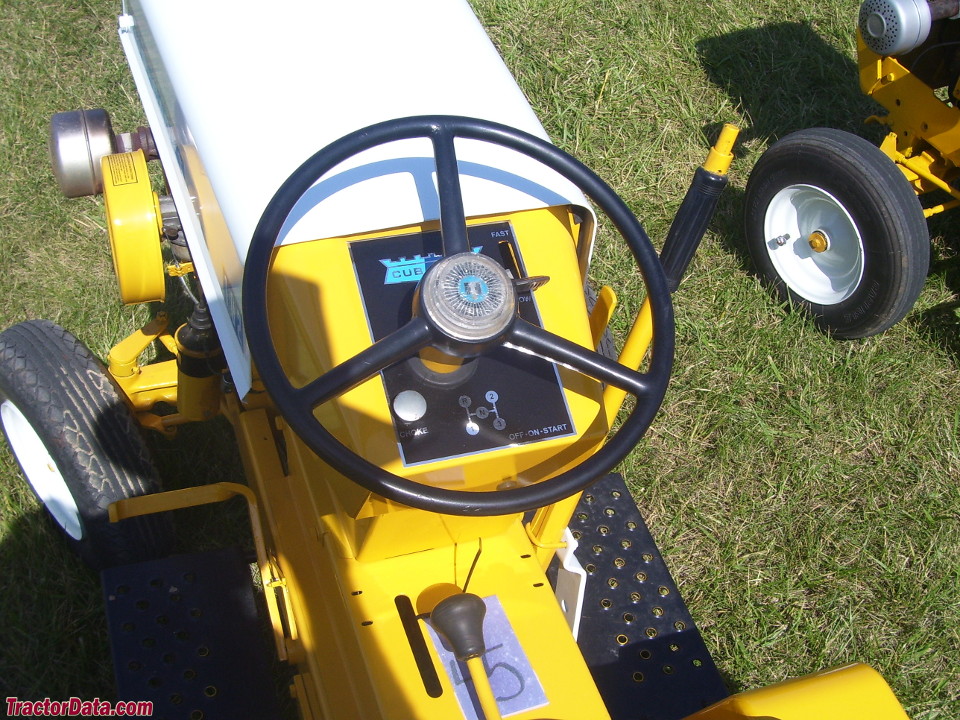

Cub Cadet 102 operator station and controls.

Cub Cadet 102 operator station and controls.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet 102.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Cub Cadet Lawn Tractors Cub Cadet 102 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet 102.

Converted Equivalents:

Horsepower (HP)10 hp
Kilowatts (kW)7.5 kW
Metric Horsepower (PS / CV)10.1 PS
