Cub Cadet 1027
The Cub Cadet 1027 is a tractor produced by Cub Cadet Lawn Tractors. The listed engine power is Gasoline (listed): 9 hp / 6.7 kW. Transmission: infinite forward and reverse. Operating weight: 426 lbs 193 kg.
Engine Power
Gasoline (listed): 9 hp / 6.7 kW
Fuel & Capacities
1 gal
3.8 L
Transmission
infinite forward and reverse
Operating Weight
426 lbs
193 kg
Overview
 | 2000 - 2002
Riding lawn mower |
|---|
Production | |
|---|---|
Manufacturer | Cub Cadet |
Riding lawn mower | |
Cub Cadet 1027 Engine | |
|---|---|
9HP Briggs & Stratton 1-cyl gasoline | |
Fuel tank | 1 gal
3.8 L |
Engine details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 426 lbs
193 kg |
Front tire | 11x4 |
Rear tire | 16x6.5 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Series 1000 Tractors published in 2001, by Cub Cadet | |
Lawn Tractors published in 2000, by Cub Cadet |
Engine
Engine Detail — Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Power | 9 hp
6.7 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — infinite forward and reverse
Gears | infinite forward and reverse |
Dimensions
Cub Cadet 1027 Tires | |
|---|---|
Lawn/turf front | 11x4 |
Lawn/turf rear | 16x6.5 |
Dimensions | |
|---|---|
Weight | 426 lbs
193 kg |
Attachments
27.5" Mower deck | |
|---|---|
Type | mid-mount Cub Cadet |
1-blade with manual lift | |
Cutting width | 27.5 inches
69 cm |
Photos

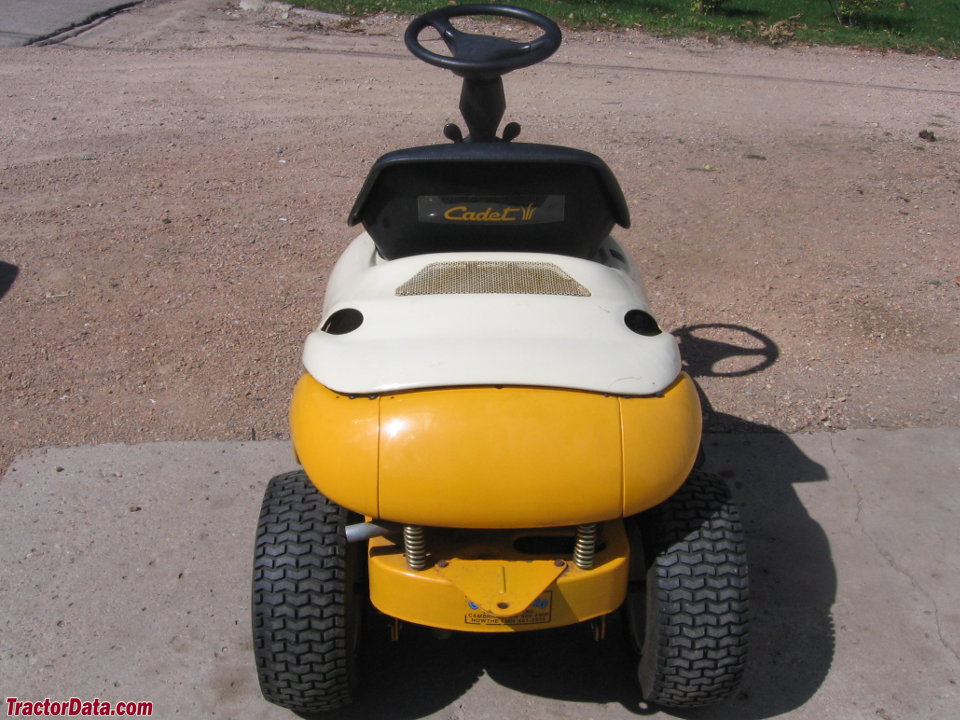

Cub Cadet 1027 rear-engine riding lawn mower.

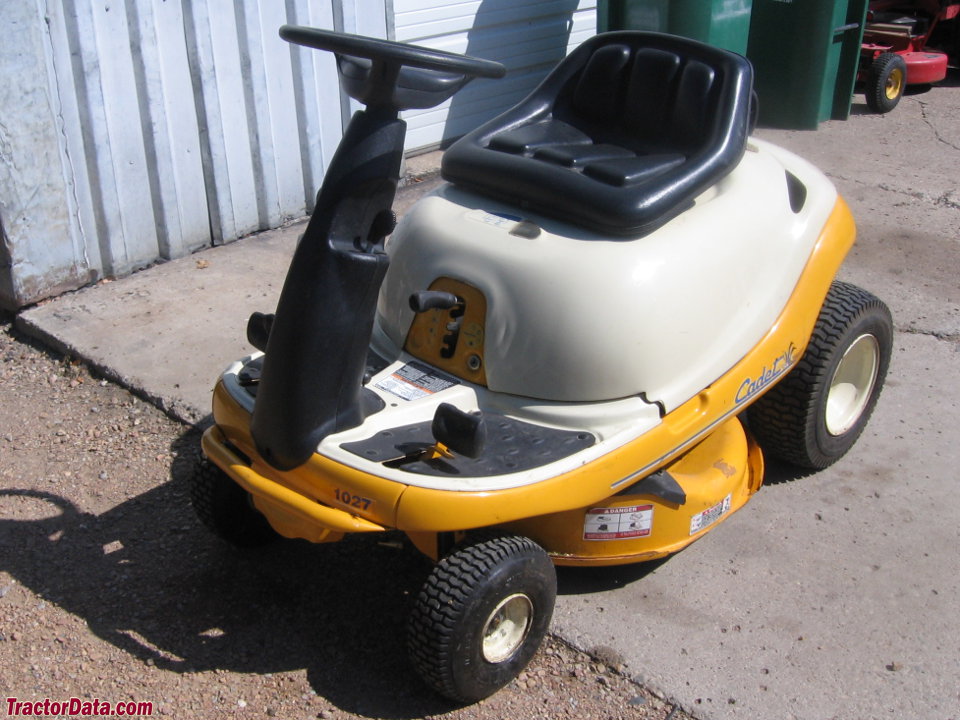

Cub Cadet 1027 rear-engine riding lawn mower.

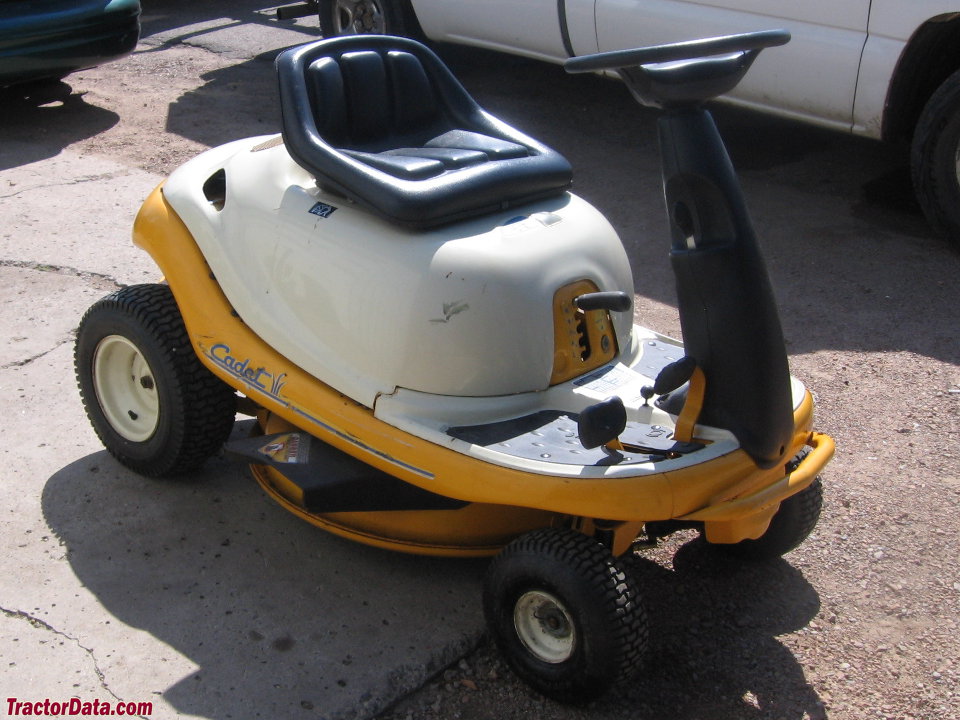

Cub Cadet 1027 rear-engine riding lawn mower.
Cub Cadet 1027 rear-engine riding lawn mower.

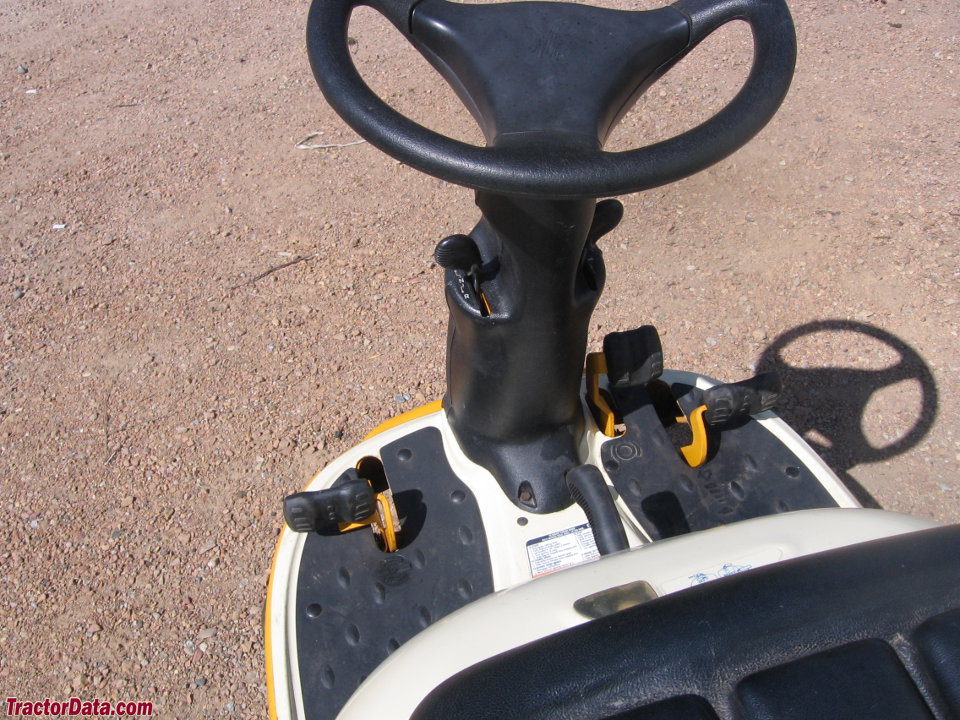

Cub Cadet 1027 operator station and controls.

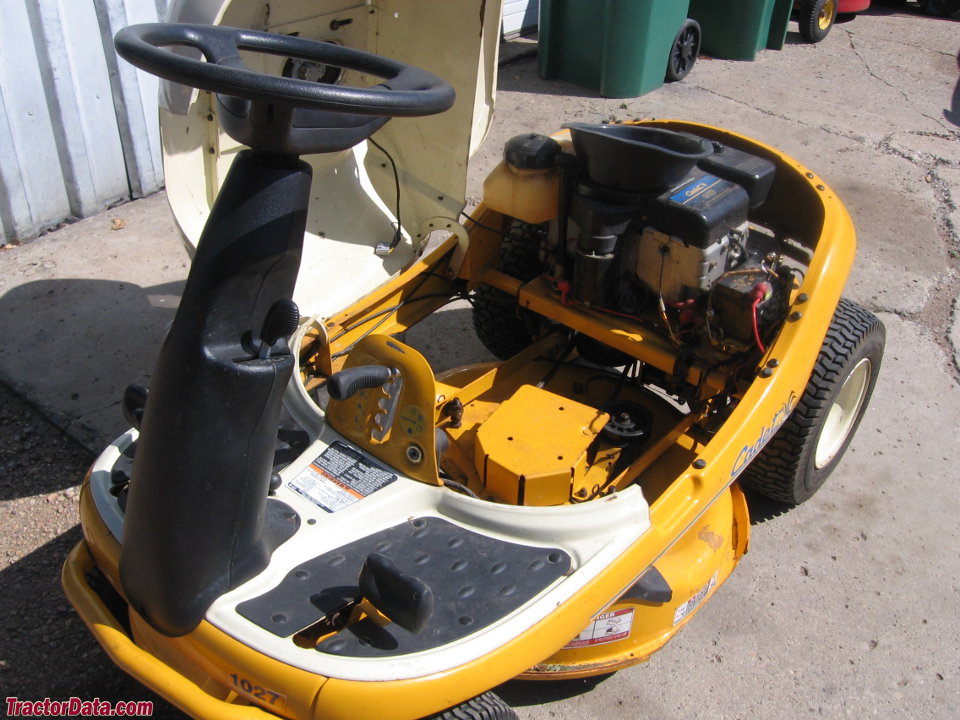

Cub Cadet 1027 with hood raised, showing engine and deck.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet 1027.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Cub Cadet Lawn Tractors Cub Cadet 1027 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet 1027.
Converted Equivalents:
Horsepower (HP)9 hp
Kilowatts (kW)6.7 kW
Metric Horsepower (PS / CV)9.1 PS
