Cub Cadet 1050

The Cub Cadet 1050 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 390 cc 23.85 ci engine. The listed engine power is Gasoline (gross): 10 hp / 7.5 kW. Transmission: Peerless.

Overview

	1989 Garden tractor

Production
Manufacturer	Cub Cadet (a part of MTD)
Garden tractor

Cub Cadet 1050 Engine
10HP Kohler 390cc 1-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Cub Cadet 1050 Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Dual disc brakes
Open operator station.

Tractor hitch
Rear Type	0 OptOptional

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	44 inches 111 cm
Front tire	16x6.50-8
Rear tire	23x8.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	15
Battery volts	12

References
Cub Cadet Garden Tractors published in 1989

Engine

Engine Detail — 390 cc / 23.85 ci Gasoline

Manufacturer	Kohler M10
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	390 cc 23.85 ci
Bore/Stroke	3.25x2.88 inches 83 x 73 mm
Power (gross)	10 hp 7.5 kW
Idle RPM	1800-3600
Starter	electric
Starter volts	12
Sparkplug gap	0.025 inches 0.635 mm
Intake valve clearance	0.009 inches (cold) 0.229 mm
Exhaust valve clearance	0.018 inches (cold) 0.457 mm
Oil capacity	2 qts 1.9 L
Oil change	25 h

Cub Cadet 1050 Engine
Image courtesy of Mike Paul

Transmission

Transmission — Peerless

Transmission	Peerless
Type	gear
Gears	3 forward and 1 reverse
Clutch	dry disc
Oil capacity	4 qts 3.8 L

Dimensions

Cub Cadet 1050 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x8.50-12

Dimensions
Wheelbase	44 inches 111 cm
Length	72 inches 182 cm
Width	37.75 inches 95 cm
Height (steering wheel)	43 inches 109 cm
Ground clearance	6 inches 15 cm
Front tread	29 inches 73 cm
Rear tread	27 inches 68 cm

Attachments

Attachment overview
38" mid-mount mower deck
44" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

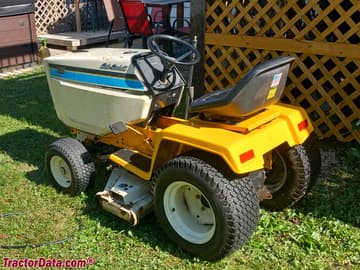

Cub Cadet 1050
