Cub Cadet 107

The Cub Cadet 107 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 391 cc 23.9 ci engine. The listed engine power is Gasoline (listed): 10 hp / 7.5 kW. Transmission: infinite forward and reverse. Operating weight: 630 lbs 285 kg.

Overview

	1969 - 1971 1X6/1X7 SeriesGarden tractor 1X6/1X7 Series Garden tractor

Production
Manufacturer	Cub Cadet (a part of International Harvester)
Garden tractor
Built in Louisville, Kentucky, USA

Cub Cadet 107 Engine
10HP Kohler 391cc 1-cyl gasoline
Fuel tank	1.625 gal 6.2 L
Engine details ...

Cub Cadet 107 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Mechanical disc brakes
Open operator station with padded seat.

Tractor hitch
Type	Cub Cadet three-point (optional)

Power Take-off (PTO)
Clutch	mechanical dry disc
Front PTO Type	3600

Dimensions & Tires
Wheelbase	43 inches 109 cm
Weight	630 lbs 285 kg
Front tire	4.80/4.00-8
Rear tire	6-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	generator
Charging amps	15
Battery volts	12

References
International Cub Cadet Tractors
Operator's Manual 73, 106, 107, 126, 127, and 147 (1 082 899 R1) published in 1969
Operator's Manual 73, 106, 107, 126, 127, and 147 (1 082 899 R2) published in 1972
Spring 1971 Buyer's Guide published by International Harvester

Engine

Engine Detail — 391 cc / 23.9 ci Gasoline

Manufacturer	Kohler K241A
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	391 cc 23.9 ci
Bore/Stroke	3.25x2.875 inches 83 x 73 mm
Power	10 hp 7.5 kW
Compression	7:1
Rated RPM	3600
Idle RPM	1000-3800
Torque	16.2 lb-ft 22.0 Nm
Torque RPM	2200
Starter volts	12
Sparkplug	Champion H-10
Sparkplug gap	0.025 inches 0.635 mm
Point gap	0.020 inches 0.508 mm
Intake valve clearance	0.010 inches (cold) 0.254 mm
Exhaust valve clearance	0.020 inches (cold) 0.508 mm
Oil capacity	1.5 qts 1.4 L

Transmission

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse
Oil capacity	7 qts 6.6 L
Oil type	IH Hy-Tran

	IH Hy-Tran

Dimensions

Cub Cadet 107 Tires
Lawn/turf front	4.80/4.00-8
Lawn/turf rear	6-12

Dimensions
Wheelbase	43 inches 109 cm
Length	64 inches 162 cm
Width	33.25 inches 84 cm
Height (steering wheel)	39.75 inches 100 cm
Shipping weight	630 lbs 285 kg
Ground clearance	6 inches 15 cm
Front axle	Cast-iron
Flange rear axle
Front tread	27 inches 68 cm
Rear tread	27 inches 68 cm

Attachments

Attachment overview
38" mid-mount mower deck
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

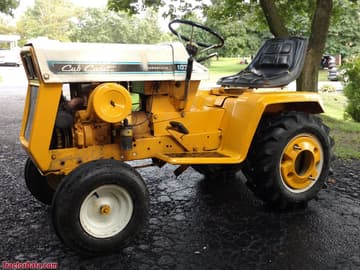

Cub Cadet 107
