cub cadet lawn tractors 108
 | 1971 - 1974
1X8/1X9 SeriesGarden tractor | 1971 - 1974 | 1X8/1X9 Series | Garden tractor |
|---|---|---|---|---|
1971 - 1974 | ||||
1X8/1X9 Series | ||||
Garden tractor | ||||
1971 - 1974 | |
|---|---|
1X8/1X9 Series | |
Garden tractor |
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of International Harvester) |
Garden tractor | |
Built in Louisville, Kentucky, USA | |
Variants | |
|---|---|
109 | hydrostatic |
108 | gear |
Cub Cadet 108 Engine | |
|---|---|
10HP Kohler 391cc 1-cyl gasoline | |
Fuel tank | 2 gal
7.6 L |
Engine details ...  | |
Cub Cadet 108 Transmissions | |
|---|---|
3-speed gear | |
6-speed creeper | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |

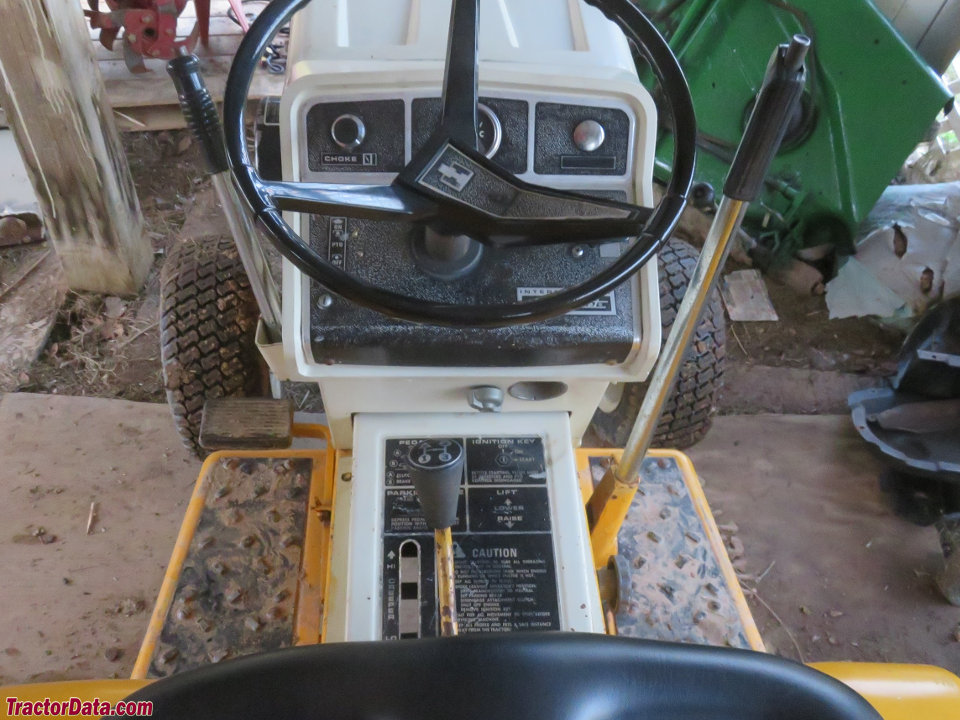

Manual steering | |
Eight-inch mechanical disc brakes | |
Open operator station. |

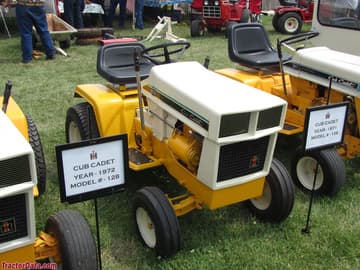

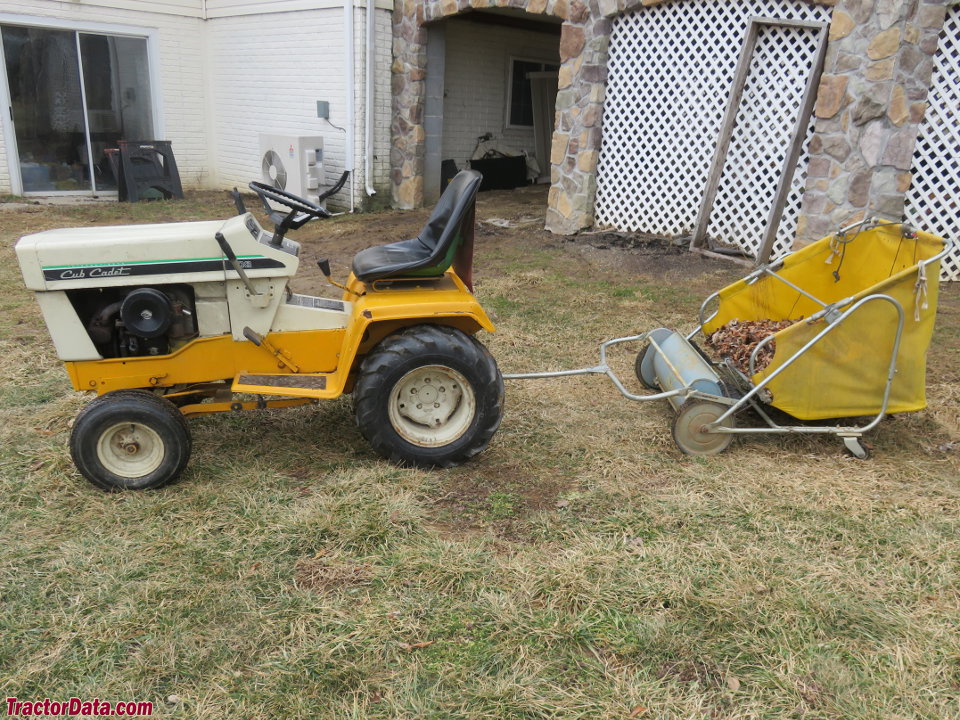

Photos | |
|---|---|
 | |
Cub Cadet 108 photos...  |
Tractor hitch | |
|---|---|
Type | sleeve hitch OptOptional |
Power Take-off (PTO) | |
|---|---|
Rear PTO | transmission OptOptional |
Rear PTO Type | 515 |
Front PTO | independent |
Clutch | mechanical |
Dimensions & Tires | |
|---|---|
Wheelbase | 44 inches
111 cm |
Front tire | 4.80/4.00-8 |
Rear tire | 6-12 |
Full dimensions and tires ...  | |
Cub Cadet 108 attachments | |
|---|---|

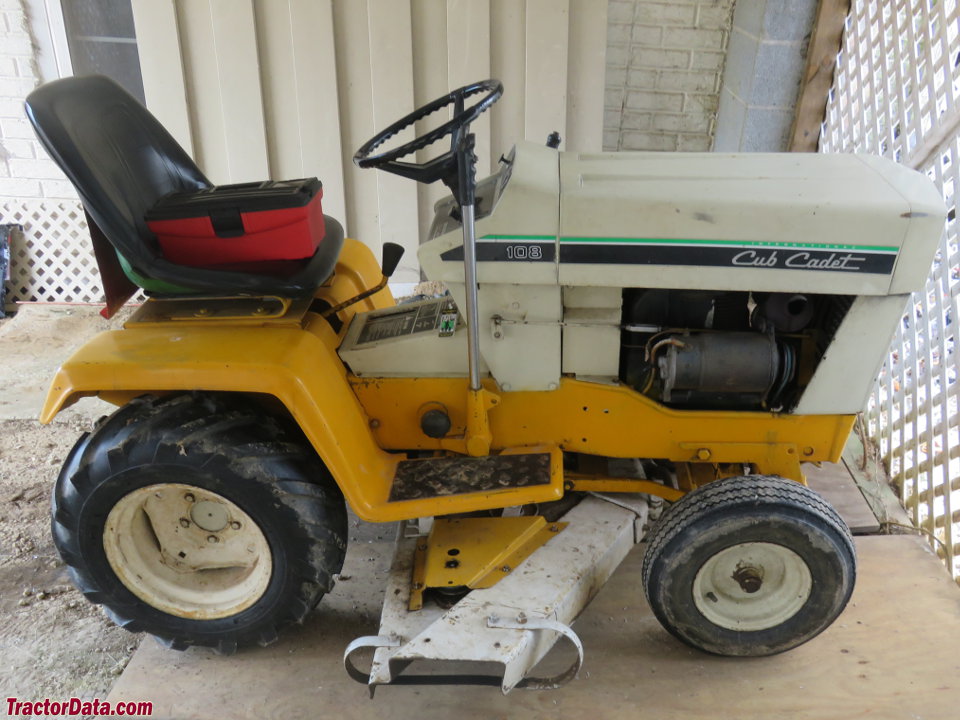

38" mid-mount mower deck | |
44" mid-mount mower deck | |
50" mid-mount mower deck | |

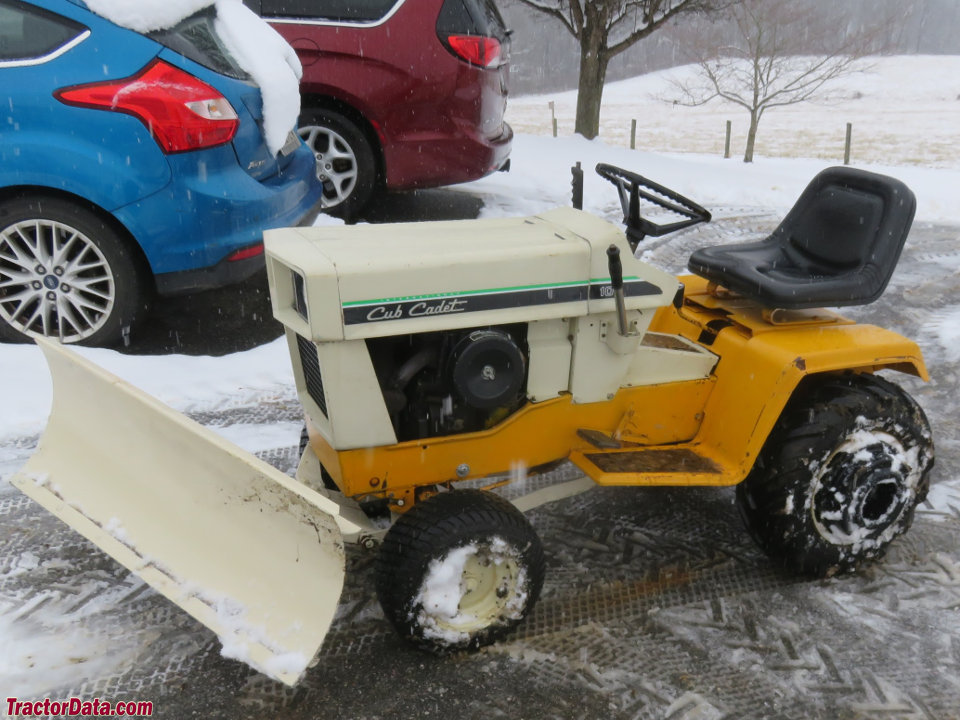

snowblower | |
Attachment details ...  |
108 Serial Numbers | |
|---|---|
Location: | Tractor's rear-drive housing, or the left side of the tractor frame . (after February 1974) |
1971 | 400001 |
1972 | 417643 |
1973 | 457305 |
1974 | 495749 |
Final | 529811 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Charging system | Delco-Remy generator |
Charging amps | 15 |
Battery volts | 12 |
References | |
|---|---|
 | |
for more mower go CUB CADET published in 1971, by Cub Cadet | |
Operator's Manual published in 1974, by Cub Cadet |
