Cub Cadet 109

The Cub Cadet 109 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 391 cc 23.9 ci engine. The rated power output is 10 hp 7.5 kW. Transmission: infinite forward and reverse.

Overview

	1971 - 1974 1X8/1X9 SeriesGarden tractor
1971 - 1974
1X8/1X9 Series
Garden tractor

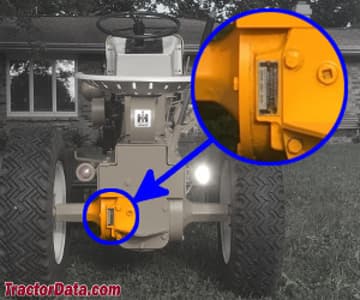

Production
Manufacturer	Cub Cadet (a part of International Harvester)
Garden tractor
Built in Louisville, Kentucky, USA

Variants
109	hydrostatic
108	gear

Cub Cadet 109 Engine
10HP Kohler 391cc 1-cyl gasoline
Fuel tank	2 gal 7.6 L
Engine details ...

Cub Cadet 109 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Mechanical disc brakes
Open operator station.

Tractor hitch
Type	sleeve hitch (optional)

Power Take-off (PTO)
Front PTO	independent
Clutch	mechanical

Dimensions & Tires
Wheelbase	44 inches 111 cm
Front tire	4.80/4.00-8
Rear tire	6-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	Delco-Remy generator
Charging amps	15
Battery volts	12

References
for more mower go CUB CADET published in 1971, by Cub Cadet
Operator's Manual published in 1974, by Cub Cadet

Engine

Engine Detail — 391 cc / 23.9 ci Gasoline

Manufacturer	Kohler K241A
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	391 cc 23.9 ci
Bore/Stroke	3.25x2.875 inches 83 x 73 mm
Power	10 hp 7.5 kW
Air cleaner	dry cartridge
Rated RPM	3600
Idle RPM	1000-3800
Starter volts	12
Sparkplug	Champion H-10
Sparkplug gap	0.025 inches 0.635 mm
Point gap	0.020 inches 0.508 mm
Intake valve clearance	0.010 inches*Cold 0.254 mm
Exhaust valve clearance	0.020 inches*Cold 0.508 mm
Oil capacity	1.5 qts 1.4 L
Oil change	30 h

Transmission

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse
Oil capacity	7 qts 6.6 L
Oil type	IH Hy-Tran

	IH Hy-Tran

Dimensions

Cub Cadet 109 Tires
Lawn/turf front	4.80/4.00-8
Lawn/turf rear	6-12

Dimensions
Wheelbase	44 inches 111 cm
Length	69 inches 175 cm
Width	33 inches 83 cm
Height (steering wheel)	41 inches 104 cm
Ground clearance	6 inches 15 cm
Front tread	27 inches 68 cm
Rear tread	27 inches 68 cm

Attachments

Attachment overview
38" mid-mount mower deck
44" mid-mount mower deck
50" mid-mount mower deck
Snowblower
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

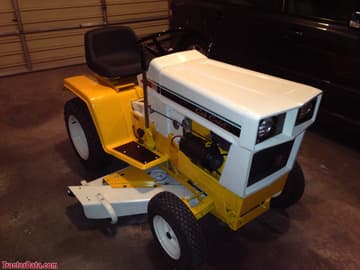

Cub Cadet 109 with mower deck.

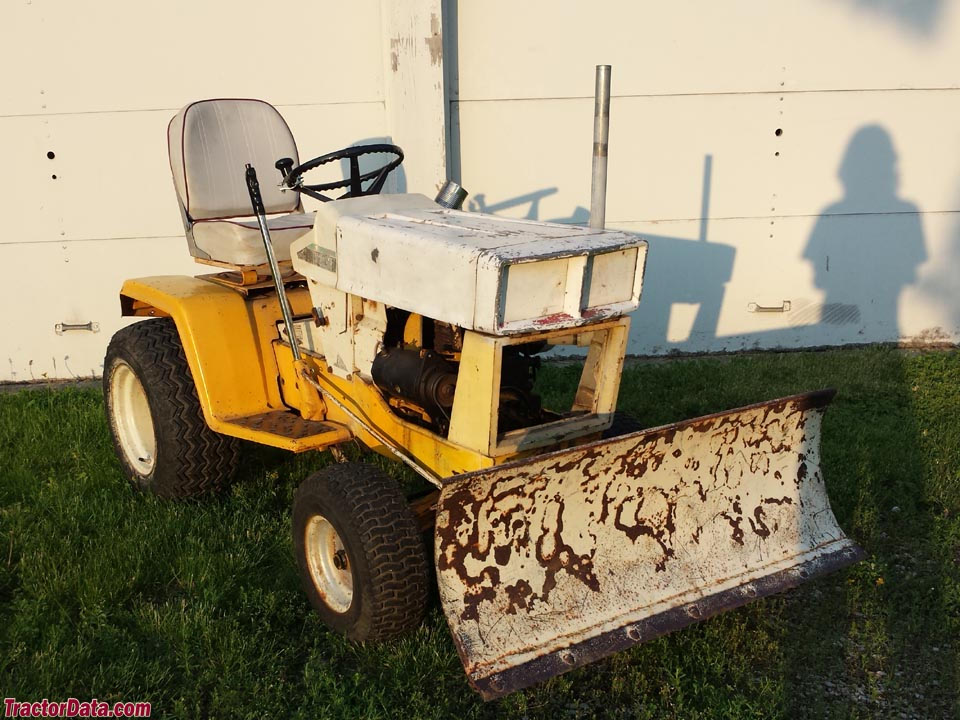

Cub Cadet 109 with front blade.

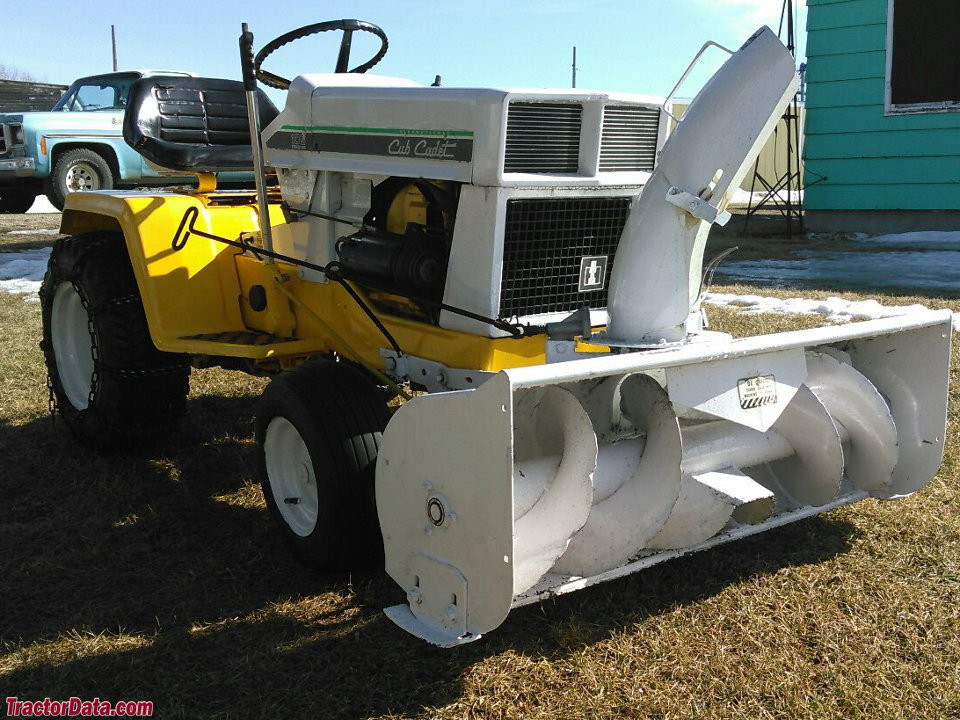

Cub Cadet 109 with snowblower.
