Cub Cadet 71

The Cub Cadet 71 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 262 cc 16 ci engine. The listed engine power is Gasoline (listed): 7 hp / 5.2 kW. Transmission: creeper. Operating weight: 555 lbs 251 kg.

Engine Power
Gasoline (listed): 7 hp / 5.2 kW
Fuel & Capacities
1.25 gal 4.7 L
Transmission
creeper
Operating Weight
555 lbs 251 kg

Overview

Cub Cadet 71 tractor photo
1965 - 1967 1X2/1X3 SeriesGarden tractor 1X2/1X3 Series Garden tractor
Production
Manufacturer
Cub Cadet (a part of International Harvester)
Garden tractor
Built in Louisville, Kentucky, USA
Cub Cadet 71 Engine
7HP Kohler 262cc 1-cyl gasoline
Fuel tank
1.25 gal 4.7 L
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Dry disc brakes
Open operator station with steel pan seat.
Power Take-off (PTO)
Rear PTO
transmission
Front PTO
independent
Clutch
mechanical
Dimensions & Tires
Wheelbase
43 inches 109 cm
Weight
555 lbs 251 kg
Front tire
4.80x4.00-8
Rear tire
6-12
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
generator
Battery volts
12
References
71 references literature
International Cub Cadet Lawn and Garden Tractor published in 1964
Operator's Manual Rotary Mowers (1019804R3) published in 1965

Engine

Engine Detail — 262 cc / 16 ci Gasoline

Manufacturer
Kohler K161
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled
Displacement
262 cc 16 ci
Bore/Stroke
2.875x2.5 inches 73 x 64 mm
Power
7 hp 5.2 kW
Compression
6.2:1
Rated RPM
3600
Starter volts
12
Cub Cadet 71 Engine
Cub Cadet 71 engine image

Transmission

Transmission options
3-speed gear
6-speed

Transmission — 3 forward and 1 reverse shaft-driven gear

Type
shaft-driven gear
Gears
3 forward and 1 reverse
Clutch
114.3mm dry disc
71 shaft-driven gear speeds
Transmission
Transmission
creeper
Gears
6 forward and 2 reverse
71 creeper speeds

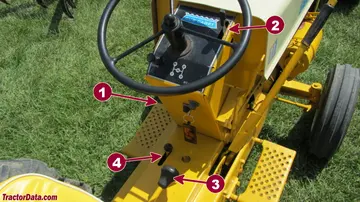

71 Transmission Controls
Cub Cadet 71 transmission controls
1
Clutch/Brake Pedal
2
Throttle
3
Gear Shift
4
Range Shift

Dimensions

Cub Cadet 71 Tires
Lawn/turf front
4.80x4.00-8
Lawn/turf rear
6-12
Lawn/turf front
16x6.50-8
Lawn/turf rear
23x8.50-12
Dimensions
Wheelbase
43 inches 109 cm
Length
63 inches 160 cm
Width
33.3 inches 84 cm
Height (steering wheel)
40 inches 101 cm
Weight
555 lbs 251 kg
Ground clearance
6 inches 15 cm
Front axle
Cast-iron
Front tread
27 inches 68 cm
Rear tread
27 inches 68 cm

Attachments

Attachment overview
38" mid-mount mower deck
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

Cub Cadet 71

Cub Cadet 71

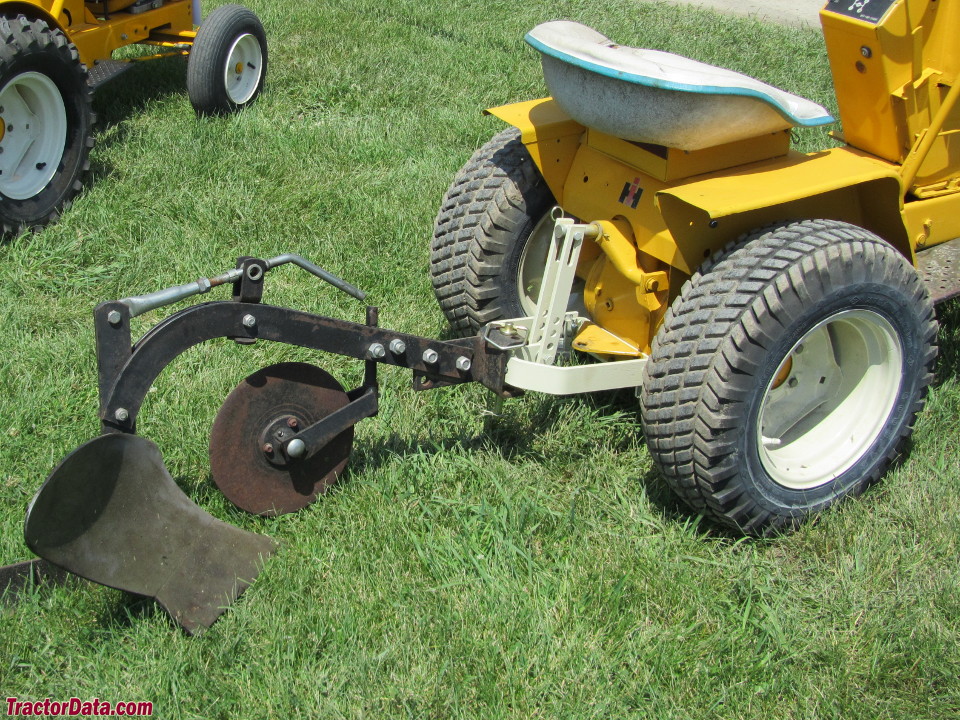

Cub Cadet 71 with rear hitch and plow

Cub Cadet 71 with rear hitch and plow

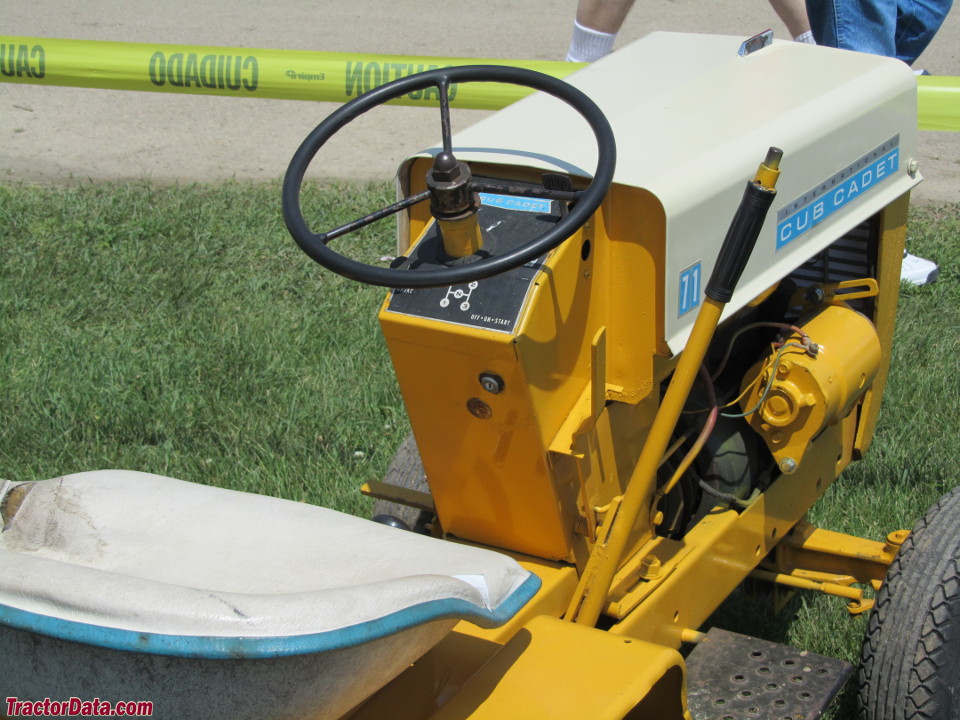

Cub Cadet 71 operator station and controls.

Cub Cadet 71 operator station and controls.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet 71.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Cub Cadet Lawn Tractors Cub Cadet 71 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet 71.

Converted Equivalents:

Horsepower (HP)7 hp
Kilowatts (kW)5.2 kW
Metric Horsepower (PS / CV)7.1 PS
