Deutz D 5505
The Deutz D 5505 is a tractor produced by Deutz. It is equipped with a 207.5 ci 3.4 L engine. The listed engine power is Diesel (listed): 51.3 hp / 38.3 kW. Transmission: 8 forward and 4 reverse. Operating weight: 5423 lbs 2459 kg.
Engine Power
Diesel (listed): 51.3 hp / 38.3 kW
Fuel & Capacities
16.9 gal
64.0 L
Transmission
8 forward and 4 reverse
Operating Weight
5423 lbs
2459 kg
Overview
 | 1965 - 1966
05 SeriesRow-Crop tractor
05 Series
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | Deutz |
Row-Crop tractor | |
Deutz D 5505 Engine | |
|---|---|
Deutz 3.4L 4-cyl diesel | |
Fuel tank | 16.9 gal
64.0 L |
Engine details ...  | |
Deutz D 5505 Transmission | |
|---|---|
8-speed gear | |
Transmission details ...  |
Deutz D 5505 Power | |
|---|---|
Engine | 51.3 hp
38.3 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical drum brakes | |
Open operator station. |
Hydraulics | |
|---|---|
Pump flow | 7.1 gpm
26.9 lpm |
Tractor hitch | |
|---|---|
Rear lift | 4851 lbs
2200 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@2075 |
1000@1970 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 86.6 inches
219 cm |
Weight | 5423 lbs
2459 kg |
Front tire | 6.00-19 |
Rear tire | 11-36 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 207.5 ci / 3.4 L Diesel
Manufacturer | Deutz F4L 812 |
Fuel Type | Diesel |
Configuration | 4-cylinder, air-cooled |
Displacement | 207.5 ci
3.4 L |
Bore/Stroke | 3.74x4.72 inches
95 x 120 mm |
Power | 51.3 hp
38.3 kW |
Rated RPM | 2300 |
Starter volts | 12 |
Oil capacity | 10 qts
9.5 L |
Transmission
Transmission — 8 forward and 4 reverse gear
Type | gear |
Gears | 8 forward and 4 reverse |
 | |
Dimensions
Deutz D 5505 Tires | |
|---|---|
Ag front | 6.00-19 |
Ag rear | 11-36 |
Dimensions | |
|---|---|
Wheelbase | 86.6 inches
219 cm |
Length | 146.9 inches
373 cm |
Width | 70.9 inches
180 cm |
Height (cab) | 96.5 inches
245 cm |
Weight | 5423 lbs
2459 kg |
Ground clearance | 19.9 inches
50 cm |
Front tread | 56.1 to 74.3 inches
142 to 188 cm |
Rear tread | 59.1 to 69.1 inches
150 to 175 cm |
Photos

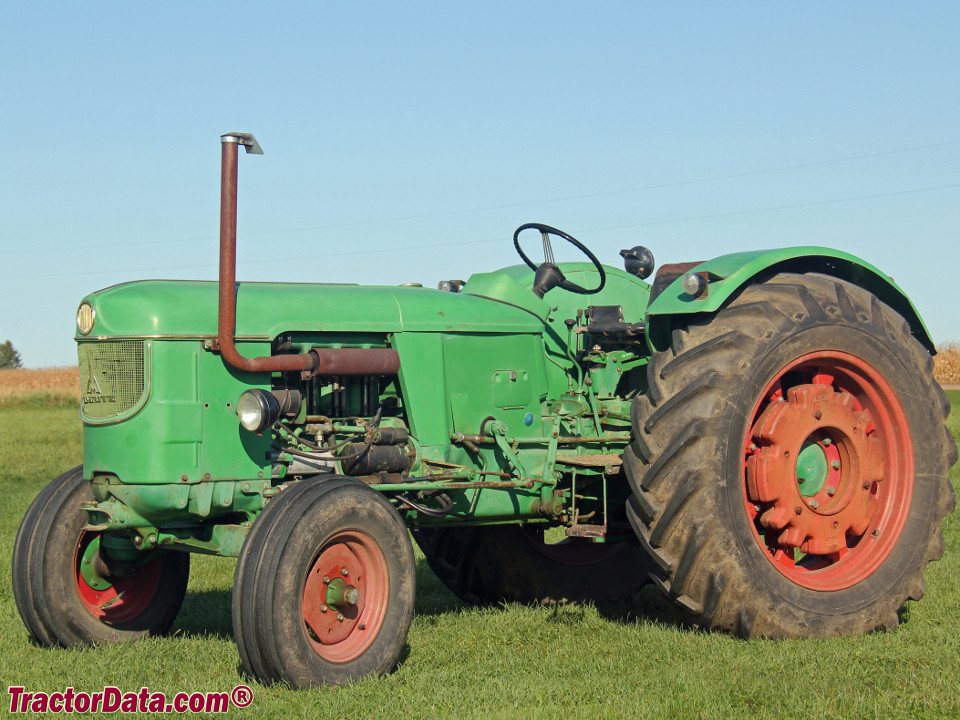

Deutz D 5505
Recommended Implements & Sizing Guide
Engineering recommendations for Deutz D 5505 based on its 51.3 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Deutz D 5505.
Estimated Continuous Field Runtime: 6.3 hrs
Approximately 6.3 hours of continuous field operation at ~75% rated power on a full tank (16.9 gal / 64 L).
Estimated 75% Load Fuel Burn~2.7 gal/hr (10.1 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Deutz D 5505 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Deutz D 5505.
Converted Equivalents:
Horsepower (HP)51.3 hp
Kilowatts (kW)38.3 kW
Metric Horsepower (PS / CV)52 PS
Direct Competitor Comparison
Compare Deutz D 5505 against same-era industry alternatives in the same horsepower class.
Current Model
Deutz
Deutz D 5505
Engine Power:Diesel (listed): 51.3 hp / 38.3 kW
★ Baseline Reference
