Deutz-Allis 1914 Ultima
The Deutz-Allis 1914 Ultima is a tractor produced by Deutz Allis Lawn Tractors. It is equipped with a 511 cc 31.2 ci engine. The rated power output is 14 hp 10.4 kW. Transmission: infinite forward and reverse. Operating weight: 179 lbs 81 kg.
Engine Power
14 hp
10.4 kW
Fuel & Capacities
4.25 gal
16.1 L
Transmission
infinite forward and reverse
Operating Weight
179 lbs
81 kg
Deutz Allis Lawn Tractors Deutz-Allis 1914 Ultima Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1988 - 1990
Ultima SeriesGarden tractorSimplicity built |
|---|---|
1988 - 1990 | |
Ultima Series | |
Garden tractor | |
Simplicity built | |
1988 - 1990 | |
|---|---|
Ultima Series | |
Garden tractor | |
Simplicity built |
Production | |
|---|---|
Distributor | Deutz-Allis |
Manufacturer | Simplicity |
Garden tractor | |
Deutz-Allis 1914 Engine | |
|---|---|
14HP Kohler 511cc 1-cyl gasoline | |
Fuel tank | 4.25 gal
16.1 L |
Engine details ...  | |
Deutz-Allis 1914 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Weight | 955 lbs
433 kg |
Front tire | 16x8.50-8 |
Rear tire | 23x10.5-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Lawn & Garden Riding Equipment published in 1988, by Deutz-Allis |
Engine
| 1988 - 1990
Ultima SeriesGarden tractorSimplicity built |
|---|---|
1988 - 1990 | |
Ultima Series | |
Garden tractor | |
Simplicity built | |
1988 - 1990 | |
|---|---|
Ultima Series | |
Garden tractor | |
Simplicity built |
Engine Detail — 511 cc / 31.2 ci Gasoline
Manufacturer | Kohler M14 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 511 cc
31.2 ci |
Bore/Stroke | 3.50x3.25 inches
89 x 83 mm |
Power (gross) | 14 hp
10.4 kW |
Starter | electric |
Starter volts | 12 |
Transmission
| 1988 - 1990
Ultima SeriesGarden tractorSimplicity built |
|---|---|
1988 - 1990 | |
Ultima Series | |
Garden tractor | |
Simplicity built | |
1988 - 1990 | |
|---|---|
Ultima Series | |
Garden tractor | |
Simplicity built |
Transmission — infinite forward and reverse hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse |
Dimensions
| 1988 - 1990
Ultima SeriesGarden tractorSimplicity built |
|---|---|
1988 - 1990 | |
Ultima Series | |
Garden tractor | |
Simplicity built | |
1988 - 1990 | |
|---|---|
Ultima Series | |
Garden tractor | |
Simplicity built |
Deutz-Allis 1914 Tires | |
|---|---|
Lawn/turf front | 16x8.50-8 |
Lawn/turf rear | 23x10.5-12 |
Dimensions | |
|---|---|
Length | 78 inches
198 cm |
Height (steering wheel) | 47 inches
119 cm |
Weight | 955 lbs
433 kg |
Attachments
| 1988 - 1990
Ultima SeriesGarden tractorSimplicity built |
|---|---|
1988 - 1990 | |
Ultima Series | |
Garden tractor | |
Simplicity built | |
1988 - 1990 | |
|---|---|
Ultima Series | |
Garden tractor | |
Simplicity built |
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
42" Mower deck | |
|---|---|
Type | mid-mount Deutz-Allis |
Cutting width | 42 inches
106 cm |
Weight | 179 lbs
81 kg |
Overall width | 55 inches
139 cm |
Photos

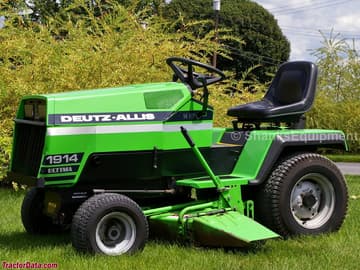

Deutz-Allis 1914 Ultima
