deutz fahr 5105
 | 2017 -
5 SeriesUtility tractor | 2017 - | 5 Series | Utility tractor |
|---|---|---|---|---|
2017 - | ||||
5 Series | ||||
Utility tractor | ||||
2017 - | |
|---|---|
5 Series | |
Utility tractor |
Production | |
|---|---|
Manufacturer | Deutz-Fahr |
Utility tractor | |
Deutz-Fahr 5105 Engine | |
|---|---|
Deutz 3.6L 4-cyl diesel | |
Fuel tank | 35.7 gal
135.1 L |
Exhaust fluid (DEF) | 2.1 gal
7.9 L |
Engine details ...  | |
Deutz-Fahr 5105 Transmissions | |
|---|---|
20-speed partial power shift | |
30-speed partial power shift | |
Transmission details ...  |
Deutz-Fahr 5105 Power | |
|---|---|
Engine (gross) | 103.3 hp
77.0 kW |
Engine (max) | 108.5 hp
80.9 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | electro-hydraulic front and rear |
Power steering | |
Wet disc brakes | |
Trailer brakes | hydraulic OptOptional |
| pneumatic OptOptional |
Cab standard with available air-conditioning. | |

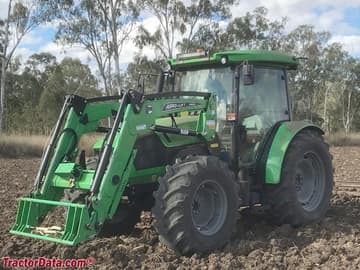

Photos | |
|---|---|
 | |
Deutz-Fahr 5105 photos...  |
Hydraulics | |
|---|---|
Type | open center |
Pump flow | 14.5 gpm
54.9 lpm |
| 15.85 gpmOptOptional
60.0 lpm |
| 23.8 gpmOptOptional
90.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 7540 lbs
3420 kg |
| 10395 lbsOptOptional
4715 kg |
| 11596 lbsOptOptional
5259 kg |
Front lift | 4630 lbs
2100 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic |
Rear PTO Type | 540/540E |
| 1000/1000E OptOptional |
Front PTO | independent OptOptional |
Front PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 91.7 inches
232 cm |
4WD Wheelbase | 93.3 inches
236 cm |
Weight | 9149 lbs
4149 kg |
Front tire | 380/85R24 |
Rear tire | 420/85R34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 150 |
Charging volts | 12 |
Battery CCA | 650 |
Battery volts | 12 |
Battery AH | 100 |
References | |
|---|---|
 | |
5 Series published in 2016, by Deutz-Fahr |
