Deutz-Fahr Agrotron 130

The Deutz-Fahr Agrotron 130 is a tractor produced by Deutz Fahr. It is equipped with a 369.6 ci 6.1 L engine. The listed engine power is Diesel (gross): 139.5 hp / 104.0 kW. Transmission: 40 forward and reverse. Operating weight: 12037 lbs 5459 kg.

Engine Power

Diesel (gross): 139.5 hp / 104.0 kW

Fuel & Capacities

71.3 gal 269.9 L

Transmission

40 forward and reverse

Operating Weight

12037 lbs 5459 kg

Overview

	2005 - 2007 Agrotron SeriesUtility tractor Agrotron Series Utility tractor

Production
Manufacturer	Deutz-Fahr
Utility tractor

Deutz-Fahr Agrotron 130 Engine
Deutz 6.1L 6-cyl diesel
Fuel tank	71.3 gal 269.9 L
Engine details ...

Deutz-Fahr Agrotron 130 Power
Engine (gross)	139.5 hp 104.0 kW

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Cab standard with air-conditioning.

Hydraulics
Type	open center
	closed center OptOptional
Pressure	2901 psi 200.0 bar
Valves	2 to 4
Pump flow	21.9 gpm (open) 82.9 lpm
	31.7 gpm (closed) 120.0 lpm

Tractor hitch
Rear Type	III/II
Rear lift	13669 lbs 6200 kg
	20283 lbsOptOptional 9200 kg
Front Hitch	II OptOptional
Front lift	8818 lbs 3999 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@2200
	540E@1600
	1000@2200
	1000E@1600
Front PTO	independent OptOptional
Clutch	1000:2130
Front PTO Type	1000

Dimensions & Tires
Wheelbase	104.2 inches 264 cm
Weight	12037 lbs 5459 kg
Front tire	16.9R24
Rear tire	18.4R38
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	95
Battery volts	12
Battery AH	143
	170 OptOptional

Engine

Engine Detail — 369.6 ci / 6.1 L Diesel

Manufacturer	Deutz BF6M2012C
Configuration	turbocharged intercooled diesel, 6-cylinder, liquid-cooled
Displacement	369.6 ci 6.1 L
Bore/Stroke	3.98x4.96 inches 101 x 126 mm
Rated Power (gross)	139.5 hp 104.0 kW
Rated RPM	2300
Torque	377.6 lb-ft 512.0 Nm
Torque RPM	1600
Starter	electric
Starter volts	12
Oil capacity	14.8 qts 14.0 L

Transmission

Transmission options
24-speed four-speed power shift
40-speed creeper

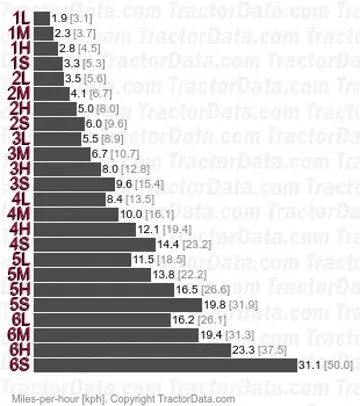

Transmission — 24 forward and reverse four-speed power shift

Type	four-speed power shift
Gears	24 forward and reverse
With 18.4R38 rear tires.

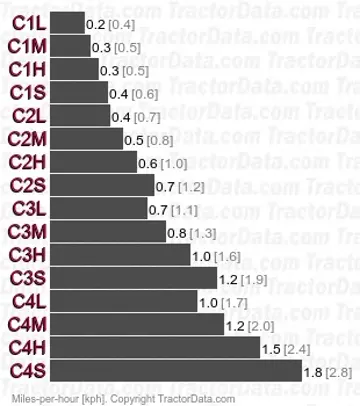

Transmission
Type	creeper
Gears	40 forward and reverse

Dimensions

Deutz-Fahr Agrotron 130 Tires
Standard tires (ag)	Front: 16.9R24. Rear: 18.4R38

Dimensions
Wheelbase	104.2 inches 264 cm
Length	180.6 inches 458 cm
Height (cab)	115 inches 292 cm
Weight	12037 lbs 5459 kg
Max weight	18739 lbs 8500 kg
Front tread	70.9 inches 180 cm
Rear tread	70.9 inches 180 cm

Photos

Deutz-Fahr Agrotron 130 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Deutz Fahr Deutz-Fahr Agrotron 130 based on its 139.5 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Deutz Fahr Deutz-Fahr Agrotron 130.

Estimated Continuous Field Runtime: 9.8 hrs

Approximately 9.8 hours of continuous field operation at ~75% rated power on a full tank (71.3 gal / 269.9 L).

Estimated 75% Load Fuel Burn~7.3 gal/hr (27.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Deutz Fahr Deutz-Fahr Agrotron 130 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Deutz Fahr Deutz-Fahr Agrotron 130.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)139.5 hp

Kilowatts (kW)104 kW

Metric Horsepower (PS / CV)141.4 PS

Direct Competitor Comparison

Compare Deutz-Fahr Agrotron 130 against same-era industry alternatives in the same horsepower class.

Current Model

Deutz Fahr
