Farmhand 100
The Farmhand 100 is a tractor produced by Farmhand Lawn Tractors. It is equipped with a 277 cc 16.94 ci engine. The listed engine power is Gasoline (gross): 7 hp / 5.2 kW. Transmission: 3 forward and 1 reverse.
Engine Power
Gasoline (gross): 7 hp / 5.2 kW
Fuel & Capacities
Gasoline
Transmission
3 forward and 1 reverse
Overview
 | 1962
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Farmhand |
Garden tractor | |
Variants | |
|---|---|
Chief 100 | similar Jacobsen model |
Farmhand 100 Engine | |
|---|---|
7HP Kohler 277cc 1-cyl gasoline | |
Engine details ...  |
Farmhand 100 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 277 cc / 16.94 ci Gasoline
Manufacturer | Kohler K161 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Displacement | 277 cc
16.94 ci |
Bore/Stroke | 2.875x2.50 inches
73 x 64 mm |
Power (gross) | 7 hp
5.2 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 3 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 3 forward and 1 reverse |
Dimensions
Farmhand 100 Tires |
|---|
Dimensions |
|---|
Attachments
36" Mower deck | |
|---|---|
Type | mid-mount Farmhand |
2-blade with manual lift | |
Cutting width | 36 inches
91 cm |
Photos

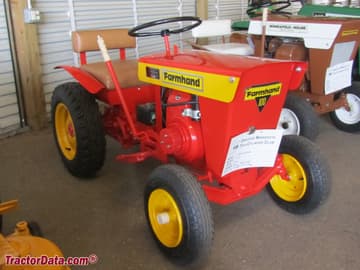

Farmhand 100 garden tractor.
Farmhand 100 operator station and controls.
Two Farmhand 100 tractors with a Farm Handy utility vehicle.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Farmhand Lawn Tractors Farmhand 100.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Farmhand Lawn Tractors Farmhand 100 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Farmhand Lawn Tractors Farmhand 100.
Converted Equivalents:
Horsepower (HP)7 hp
Kilowatts (kW)5.2 kW
Metric Horsepower (PS / CV)7.1 PS
