Fendt 1042 Vario

The Fendt 1042 Vario is a tractor produced by Fendt. It is equipped with a 757.9 ci 12.4 L engine. The listed engine power is Diesel (net): 420 hp / 313.2 kW; Diesel (listed): 9.4 hp / 7.0 kW. Transmission: Vario. Operating weight: 30865 lbs 14000 kg.

Overview

	2015 - 1000 Vario SeriesRow-Crop tractor
2015 -
1000 Vario Series
Row-Crop tractor

Production
Manufacturer	Fendt (a part of AGCO)
Row-Crop tractor

Fendt 1042 Vario Engine
MAN 12.4L 6-cyl diesel
Fuel tank	211.3 gal 799.8 L
Exhaust fluid (DEF)	22.5 gal 85.2 L
Engine details ...

Fendt 1042 Vario Power
Engine (net)	420 hp 313.2 kW
Drawbar (tested)	348.5 hp 259.9 kW
PTO (tested)	410.1 hp 305.8 kW
Performance test details ...

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Cab standard with air-conditioning and mechanical suspension. Available pneumatic suspension system.

Hydraulics
Type	load sensing
Pressure	2900 psi 200.0 bar
Pump flow	43.6 gpm 165.0 lpm
	58.1 gpm*Optional. 219.9 lpm
	113.6 gpm*Dual pump option. 430.0 lpm

Tractor hitch
Rear Type	IV
Front lift	12560 lbs 5697 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000/1000E/1300

Dimensions & Tires
Wheelbase	129.9 inches 329 cm
Weight	30865 lbs 14000 kg
Front tire	650/65R38
Rear tire	750/75R46
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	270
Charging volts	14
Batteries	2
Battery volts	12
Battery AH	180

Engine

Engine Detail — 757.9 ci / 12.4 L Diesel

Manufacturer	MAN
Configuration	turbocharged intercooled diesel, 6-cylinder, liquid-cooled
Displacement	757.9 ci 12.4 L
Bore/Stroke	4.96x6.54 inches 126 x 166 mm
Emissions	Tier IV
Emission control	selective catalytic reduction with diesel oxidation catalyst
Rated Power (net)	420 hp 313.2 kW
Rated RPM	1700
Torque	1549 lb-ft 2100.4 Nm
Torque RPM	1500
Starter	electric
Starter volts	12
Starter power	9.4 hp 7.0 kW
Oil change	500 h

Transmission

Transmission — Vario

Transmission	Vario
Gears	infinite forward and reverse

Dimensions

Fendt 1042 Vario Tires
Standard tires (ag)	Front: 650/65R38. Rear: 750/75R46
Optional tires (ag)	Front: 710/60R38. Rear: 900/65R46

Dimensions
Wheelbase	129.9 inches 329 cm
Length	242.4 inches 615 cm
Width	108.3 inches 275 cm
Height (cab)	135.6 inches 344 cm
	137 inches*With VarioGuide. 347 cm
Weight	30865 lbs 14000 kg
Ground clearance	18.9 inches 48 cm
Front tread	82.7 inches 210 cm
Rear tread	78.7 inches 199 cm

Tests

OCED Tractor Test 3105
Diesel Vario 4WD July 2017 - November 2017, Link: OCED Tractor Test 3105 file
PTO performance
Max power	410.1 hp 305.8 kW
Fuel use	19.4 gal/hour 73.4 l/hour
Power at rated engine speed	409.5 hp 305.4 kW
Fuel use	19.9 gal/hour 75.3 l/hour
Power at rated PTO speed	408.7 hp 304.8 kW
Fuel use	19.6 gal/hour 74.2 l/hour
Drawbar performance
Max power	348.5 hp 259.9 kW
Fuel use	20.1 gal/hour 76.1 l/hour
Pull at 9.10 KPH
Max pull	34110 lbs 15472 kg
Pull at 4.90 KPH

Photos

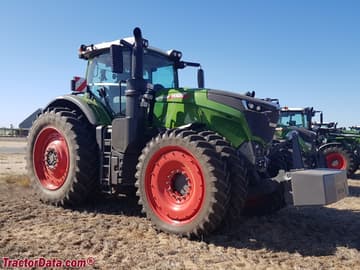

Fendt 1042 Vario
