fendt 209
 | 2003 - 2009
Farmer 200 SeriesUtility tractor | 2003 - 2009 | Farmer 200 Series | Utility tractor |
|---|---|---|---|---|
2003 - 2009 | ||||
Farmer 200 Series | ||||
Utility tractor | ||||
2003 - 2009 | |
|---|---|
Farmer 200 Series | |
Utility tractor |
Production | |
|---|---|
Manufacturer | Fendt (a part of AGCO) |
Utility tractor | |
Variants | |
|---|---|
209S | utility |
209V | ultra-narrow |
209F | narrow |
209P | wide specialty |
Fendt 209 Engine | |
|---|---|
Deutz 4.3L 4-cyl diesel | |
Fuel tank | 15.9 gal
60.2 L |
Engine details ...  | |
Fendt 209 Transmissions | |
|---|---|
21-speed synchromesh | |

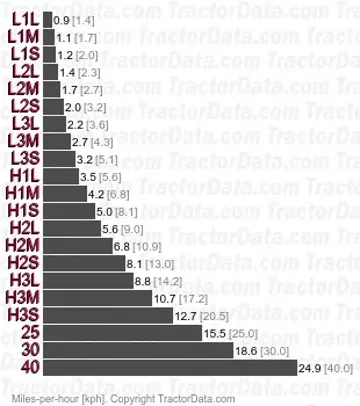

21-speed shuttle | |
Transmission details ...  |
Fendt 209 Power | |
|---|---|
Engine (gross) | 92.5 hp
69.0 kW |
Engine (net) | 88.5 hp
66.0 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Hydraulic disc brakes | |
Cab standard with available heat and air-conditioning. |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2900 psi
200.0 bar |
Valves | 2 or 3 |
Pump flow | 12.4 gpm
46.9 lpm |
| 19.6 gpmOptOptional
74.2 lpm |
Tractor hitch | |
|---|---|
Rear Type | 2 |
Front Hitch | optional |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/750/1000 |
| 540/750/ground OptOptional |
Front PTO | independent OptOptional |
Front PTO Type | 540 |
| 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 87.9 inches
223 cm |
Weight | 6834 lbs
3099 kg |
Front tire | 335/80R18 |
Rear tire | 480/70R30 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 95 |
Charging volts | 14 |
Battery volts | 12 |
Battery AH | 88 |
References | |
|---|---|
 | |
Farmer 206S 207S 208S 209S published in 2006, by Fendt |
