Fendt 943 Vario MT

The Fendt 943 Vario MT is a tractor produced by Fendt. It is equipped with a 598 ci 9.8 L engine. The rated power output is 425.1 hp 317.0 kW. Transmission: Vario ML400T. Drive type: crawler. Operating weight: 33443 to 33667 pounds.

Overview

	2020 - 900 Vario SeriesAgricultural Crawler tractor
2020 -
900 Vario Series
Agricultural Crawler tractor

2020 -
900 Vario Series
Agricultural Crawler tractor

Production
Manufacturer	Fendt (a part of AGCO)
Agricultural Crawler tractor
Built in Jackson, Minnesota, USA

Fendt 943 Vario MT Engine
AGCO Power 9.8L 7-cyl diesel
Engine details ...

Fendt 943 Vario MT Transmission
continuously-variable transmission
Transmission details ...

Fendt 943 Vario MT Power
Engine (gross)	425.1 hp 317.0 kW

Mechanical
Drive	crawler
Cab standard with air-conditioning.

Photos
Fendt 943 Vario MT photos...

Capacity
Fuel	180 gal 681.3 L
	215 galOptOptional 813.8 L
	257 galOptOptional 972.7 L
Exhaust fluid (DEF)	18.8 gal 71.2 L
Hydraulic system	33 gal 124.9 L

Hydraulics
Type	closed center
Capacity	33 gal 124.9 L
Pressure	2900 psi 200.0 bar
Valves	4 to 6
Pump flow	58 gpm 219.5 lpm
	116 gpm*Optional combined flow of dual pumps. 439.1 lpm
SCV flow	37 gpm 140.0 lpm
	45 gpm*Optional, with 0.625 or 0.75 inch couplers. 170.3 lpm

Tractor hitch
Rear Type	IVN/III
Control	position and draft control
Rear lift (at ends)	19000 lbs 8618 kg
Rear lift (at 24"/610mm)	16500 lbs 7484 kg
Drawbar	Cat. 4

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000/1000E (1.75)
Engine RPM	1000@1650
	1000E@1225

Dimensions & Tracks
Wheelbase	101 inches 256 cm
Weight	33443 to 33667 pounds
14-inch tracks
Full dimensions and tracks ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	300 *Dual 150A alternators.
Batteries	2
Battery volts	12
Battery AH	185

References
900 Vario MT Series published in 2020, by Fendt*
*Publication contains known errors.

Engine

	2020 - 900 Vario SeriesAgricultural Crawler tractor
2020 -
900 Vario Series
Agricultural Crawler tractor

2020 -
900 Vario Series
Agricultural Crawler tractor

Engine Detail
AGCO Power
turbocharged diesel
7-cylinder
liquid-cooled
Displacement	598 ci 9.8 L
Bore/Stroke	4.37x5.71 inches 111 x 145 mm
Emissions	Tier IV
Rated Power (gross)	425.1 hp 317.0 kW
Rated RPM	1450
Torque	1416 lb-ft 1920.1 Nm
Torque RPM	1450
Starter	electric
Starter volts	12

Fendt 943 Vario MT Engine

Transmission

	2020 - 900 Vario SeriesAgricultural Crawler tractor
2020 -
900 Vario Series
Agricultural Crawler tractor

2020 -
900 Vario Series
Agricultural Crawler tractor

Transmission
Transmission	Vario ML400T
Type	continuously-variable transmission
Gears	infinite forward and reverse

Dimensions

	2020 - 900 Vario SeriesAgricultural Crawler tractor
2020 -
900 Vario Series
Agricultural Crawler tractor

2020 -
900 Vario Series
Agricultural Crawler tractor

Fendt 943 Vario MT Tracks
Width	14 inches 35 cm
Width	16 inches 40 cm
Width	18 inches 45 cm
Width	20 inches 50 cm
Width	25 inches 63 cm
Width	30 inches 76 cm
Width	34 inches 86 cm

Dimensions
Wheelbase	101 inches 256 cm
Length	241.1 inches 612 cm
Width	98.5 inches (standard) 250 cm
	132 inches (wide axle) 335 cm
Height (cab)	137.6 inches 349 cm
Height (exhaust)	133.9 inches 340 cm
Clearance (drawbar)	19.7 inches 50 cm
Front axle	8 by 100.9 inches 203 by 2562 mm
Front axle	8 by 132.9 inches 203 by 3375 mm
Gauge	72 to 88 inches 182 to 223 cm
Gauge	72 to 120 inches 182 to 304 cm

Fendt 943 Vario MT Weight
	33443 lbs (standard) 15169 kg
	33667 lbs (wide axle) 15271 kg
Max capacity	41000 lbs 18597 kg
Max Drawbar	8000 lbs (extended) 3628 kg
	15000 lbs (short position) 6804 kg

Photos

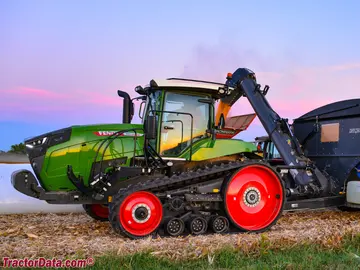

Fendt 943 Vario MT
