Fendt Farmer 105LS

The Fendt Farmer 105LS is a tractor produced by Fendt. It is equipped with a 253.5 ci 4.2 L engine. The listed engine power is Diesel (listed): 59 hp / 44.0 kW. Transmission: 16 forward and 5 reverse. Operating weight: 6636 to 7341 pounds.

Engine Power

Diesel (listed): 59 hp / 44.0 kW

Fuel & Capacities

23.2 gal 87.8 L

Transmission

16 forward and 5 reverse

Operating Weight

6636 to 7341 pounds

Overview

	1977 - 1985 Farmer 100 SeriesRow-Crop tractor Farmer 100 Series Row-Crop tractor

Production
Manufacturer	Fendt
Row-Crop tractor

Variants
105S	basic
105LS	deluxe

Fendt Farmer 105LS Engine
MWM 4.2L 4-cyl diesel
Fuel tank	23.2 gal 87.8 L
Engine details ...

Fendt Farmer 105LS Power
Engine	59 hp 44.0 kW

Mechanical
Two- or four-wheel drive
Power steering
Cab standard with available heater.

Hydraulics
Type	open center
Pressure	2538 psi 175.0 bar
Pump flow	11.6 gpm 43.9 lpm

Tractor hitch
Rear lift	6107 lbs 2770 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
2WD Wheelbase	87.6 inches 222 cm
4WD Wheelbase	88.4 inches 224 cm
Weight	6636 to 7341 pounds
Front tire	7.50-18
2WD Rear tire	13.6/12-36
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	28
Charging volts	14
Battery volts	12
Battery AH	110

References

Farmer Vierzylinder-Turbomatik published in 1977, by Fendt

Engine

Engine Detail — 253.5 ci / 4.2 L Diesel

Manufacturer	MWM D226-4
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	253.5 ci 4.2 L
Bore/Stroke	4.13x4.72 inches 105 x 120 mm
Power	59 hp 44.0 kW
Rated RPM	2175
Starter	electric
Starter volts	12

Transmission

Transmission options
13-speed synchronized
16-speed creeper

Transmission — 13 forward and 4 reverse synchronized

Type	synchronized
Gears	13 forward and 4 reverse

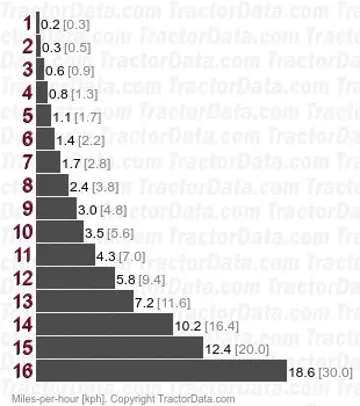

Transmission
Type	creeper
Gears	16 forward and 5 reverse

Dimensions

Fendt Farmer 105LS Tires
2WD Standard tires (ag)	Front: 7.50-18. Rear: 13.6/12-36
4WD Standard tires (ag)	Front: 10.5-20. Rear: 13.6/12-36

Dimensions
2WD Wheelbase	87.6 inches 222 cm
4WD Wheelbase	88.4 inches 224 cm
Length	150.4 inches 382 cm
Width	74.4 inches 188 cm
Height	96.5 inches 245 cm

Fendt Farmer 105LS Weight
2WD	6636 lbs 3010 kg
4WD	7341 lbs 3329 kg
Max capacity	11023 lbs 5000 kg

Photos

Fendt Farmer 105LS

Recommended Implements & Sizing Guide

Engineering recommendations for Fendt Farmer 105LS based on its 59 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	6 ft (72 in)1.8 m	Medium Duty	Medium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep	66 to 72 in165 - 180 cm	Medium Duty	Standard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage	7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙	Medium Duty	Field leveling and clod breaking behind plows.
Hay BalerHay & Forage	Small Square Baler (14x18")小方捆打捆机 (36x46 cm)	Medium Duty	Classic 2-string baler for horse and small livestock hay.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Fendt Farmer 105LS.

Estimated Continuous Field Runtime: 7.6 hrs

Approximately 7.6 hours of continuous field operation at ~75% rated power on a full tank (23.2 gal / 87.8 L).

Estimated 75% Load Fuel Burn~3.1 gal/hr (11.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
