Fendt Farmer 105S
The Fendt Farmer 105S is a tractor produced by Fendt. It is equipped with a 253.5 ci 4.2 L engine. The rated power output is 59 hp 44.0 kW. Transmission: 16 forward and 5 reverse. Operating weight: 6327 to 7033 pounds.
Engine Power
59 hp
44.0 kW
Fuel & Capacities
Diesel
Transmission
16 forward and 5 reverse
Operating Weight
6327 to 7033 pounds
Fendt Farmer 105S Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1972 - 1979
Farmer 100 SeriesRow-Crop tractor |
|---|---|
1972 - 1979 | |
Farmer 100 Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Fendt |
Row-Crop tractor | |
Variants | |
|---|---|
105S | basic |
105LS | deluxe |
Fendt Farmer 105S Power | |
|---|---|
Engine | 59 hp
44.0 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Cab standard. |
Tractor hitch | |
|---|---|
Rear lift | 5688 lbs
2580 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 87.6 inches
222 cm |
4WD Wheelbase | 88.4 inches
224 cm |
Weight | 6327 to 7033 pounds |
Front tire | 7.50-18 |
2WD Rear tire | 13.6/12-36 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 28 |
Charging volts | 14 |
Battery volts | 12 |
Battery AH | 110 |
References | |
|---|---|
 | |
Farmer Vierzylinder-Turbomatik published in 1977, by Fendt |
Engine
Engine options | |
|---|---|
MWM 3.4L 4-cyl diesel | |
MWM 4.2L 4-cyl diesel |
Engine Detail — 207.5 ci / 3.4 L Diesel
Manufacturer | MWM D225-4 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
The D225-4 was the original engine in the Farmer 105S, used through 1974. | |
Displacement | 207.5 ci
3.4 L |
Bore/Stroke | 3.74x4.72 inches
95 x 120 mm |
Power | 59 hp
44.0 kW |
Rated RPM | 2400 |
Starter | electric |
Starter volts | 12 |
Engine Detail — 253.5 ci / 4.2 L Diesel
Manufacturer | MWM D226-4 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
The D226-4 was used beginning in 1975. | |
Displacement | 253.5 ci
4.2 L |
Bore/Stroke | 4.13x4.72 inches
105 x 120 mm |
Power | 59 hp
44.0 kW |
Rated RPM | 2175 |
Transmission
Transmission options | |
|---|---|
13-speed synchronized | |
16-speed creeper |
Transmission — 13 forward and 4 reverse synchronized
Type | synchronized |
Gears | 13 forward and 4 reverse |
 | |

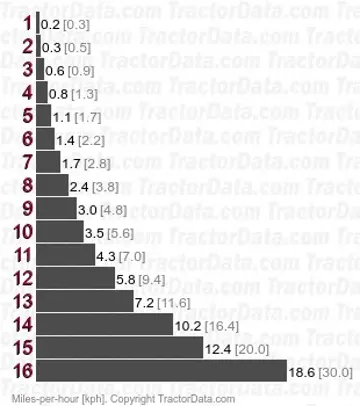

Transmission | |
Type | creeper |
Gears | 16 forward and 5 reverse |
 | |
Dimensions
Fendt Farmer 105S Tires | |
|---|---|
2WD Standard tires (ag) | Front: 7.50-18. Rear: 13.6/12-36 |
4WD Standard tires (ag) | Front: 10.5-20. Rear: 13.6/12-36 |
Dimensions | |
|---|---|
2WD Wheelbase | 87.6 inches
222 cm |
4WD Wheelbase | 88.4 inches
224 cm |
Length | 150.4 inches
382 cm |
Width | 74.4 inches
188 cm |
Height | 96.5 inches
245 cm |
2WD Weight | 6327 lbs
2869 kg |
4WD Weight | 7033 lbs
3190 kg |
