Fendt Farmer 108S

The Fendt Farmer 108S is a tractor produced by Fendt. It is equipped with a 253.5 ci 4.2 L engine. The rated power output is 73.8 hp 55.0 kW. Transmission: 16 forward and 5 reverse. Operating weight: 6967 to 7804 pounds.

Overview

	1974 - 1979 Farmer 100 SeriesRow-Crop tractor
1974 - 1979
Farmer 100 Series
Row-Crop tractor

Production
Manufacturer	Fendt
Row-Crop tractor

Variants
108S	basic
108LS	deluxe

Fendt Farmer 108S Engine
MWM 4.2L 4-cyl diesel
Fuel tank	23.2 gal 87.8 L
Engine details ...

Fendt Farmer 108S Power
Engine	73.8 hp 55.0 kW

Mechanical
Two- or four-wheel drive
Power steering
Cab standard.

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
2WD Wheelbase	87.6 inches 222 cm
4WD Wheelbase	88.4 inches 224 cm
Weight	6967 to 7804 pounds
Front tire	7.50-18
2WD Rear tire	13.6/12-38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	28
Charging volts	14
Battery volts	12
Battery AH	110

References
Farmer Vierzylinder-Turbomatik published in 1977, by Fendt

Engine

Engine Detail — 253.5 ci / 4.2 L Diesel

Manufacturer	MWM D226-4
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	253.5 ci 4.2 L
Bore/Stroke	4.13x4.72 inches 105 x 120 mm
Power	73.8 hp 55.0 kW
Rated RPM	2300
Starter	electric
Starter volts	12

Transmission

Transmission options
13-speed synchronized
16-speed creeper

Transmission — 13 forward and 4 reverse synchronized

Type	synchronized
Gears	13 forward and 4 reverse
Transmission

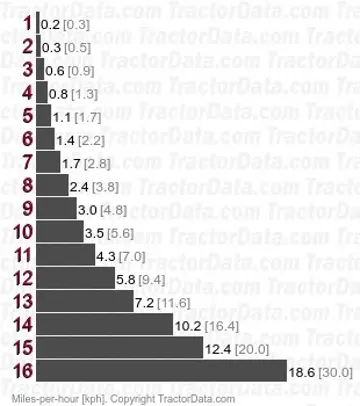

Type	creeper
Gears	16 forward and 5 reverse

Dimensions

Fendt Farmer 108S Tires
2WD Standard tires (ag)	Front: 7.50-18. Rear: 13.6/12-38
4WD Standard tires (ag)	Front: 11.2/10-24. Rear: 13.6/12-38

Dimensions
2WD Wheelbase	87.6 inches 222 cm
4WD Wheelbase	88.4 inches 224 cm
Length	153.5 inches 389 cm
Width	79.1 inches 200 cm
Height	97.6 inches 247 cm
2WD Weight	6967 lbs 3160 kg
4WD Weight	7804 lbs 3539 kg

Photos

Fendt Farmer 108S tractor photo
