Fendt Farmer 260V

The Fendt Farmer 260V is a tractor produced by Fendt. It is equipped with a 187 ci 3.1 L engine. The listed engine power is Diesel (listed): 59 hp / 44.0 kW. Transmission: 20 forward and reverse. Operating weight: 4233 to 4652 pounds.

Engine Power

Diesel (listed): 59 hp / 44.0 kW

Fuel & Capacities

15.85 gal 60.0 L

Transmission

20 forward and reverse

Operating Weight

4233 to 4652 pounds

Overview

	1987 - 2002 Farmer 200 SeriesOrchard/Vineyard tractor Farmer 200 Series Orchard/Vineyard tractor

Production
Manufacturer	Fendt
Orchard/Vineyard tractor

Fendt Farmer 260V Engine
KHD 3.1L 3-cyl diesel
Fuel tank	15.85 gal 60.0 L
Engine details ...

Fendt Farmer 260V Transmission
20-speed
Transmission details ...

Fendt Farmer 260V Power
Engine	59 hp 44.0 kW

Mechanical
Two- or four-wheel drive
Power steering
Mechanical drum brakes
Two-post mid-mount folding ROPS. Cab available with heat and air-conditioning.

Hydraulics
Pressure	2611 psi 180.0 bar
Total flow	12.9 gpm 48.8 lpm

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/750
	540/750/1000 OptOptional

Dimensions & Tires
2WD Wheelbase	77.8 inches 197 cm
4WD Wheelbase	77.5 inches 196 cm
Weight	4233 to 4652 pounds
Front tire	6.00-16
2WD Rear tire	11.2-24
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	55
Charging volts	14
Battery volts	12
Battery AH	88

References

Farmer 250V 260V 270V 280V 280P published in 1996, by Fendt
Innovations for 1988 published by Fendt

Engine

Engine Detail — 187 ci / 3.1 L Diesel

Manufacturer	KHD F3L913
Fuel Type	Diesel
Configuration	3-cylinder, air-cooled
Displacement	187 ci 3.1 L
Bore/Stroke	4.02x4.92 inches 102 x 125 mm
Power	59 hp 44.0 kW
Rated RPM	2400
Torque	149.7 lb-ft 203.0 Nm
Torque RPM	1450
Starter	electric
Starter volts	12

Transmission

Transmission — 20 forward and 6 reverse

Gears

20 forward and 6 reverse

Transmission — 20 forward and reverse

Gears

20 forward and reverse

Dimensions

Fendt Farmer 260V Tires
2WD Standard tires (ag)	Front: 6.00-16. Rear: 11.2-24
4WD Standard tires (ag)	Front: 7.5L15. Rear: 11.2-24
Wide Standard tires (ag)	Front: 11LR16. Rear: 13.6R24

Dimensions
2WD Wheelbase	77.8 inches 197 cm
4WD Wheelbase	77.5 inches 196 cm
Length	135.6 inches 344 cm
Width	41 inches 104 cm
Wide Width	48.9 inches 124 cm
2WD Ground clearance	11.5 inches 29 cm
4WD Ground clearance	8.7 inches 22 cm
Wide Ground clearance	10 inches 25 cm
2WD Front tread	30.3 inches 76 cm
4WD Front tread	31.3 inches 79 cm
Wide Front tread	37.5 inches 95 cm
Rear tread	29.8 inches 75 cm
Wide Rear tread	35.3 inches 89 cm

Fendt Farmer 260V Weight
2WD	4233 lbs 1920 kg
4WD	4564 lbs 2070 kg
4WD Wide	4652 lbs 2110 kg
Max capacity	7716 lbs 3499 kg
Max Drawbar	2205 lbs 1000 kg

Fendt Farmer 260V Height
ROPS	81.3 inches 206 cm
Wide ROPS	82.9 inches 210 cm
Cab	85 inches 215 cm
Wide Cab	86.6 inches 219 cm

Photos

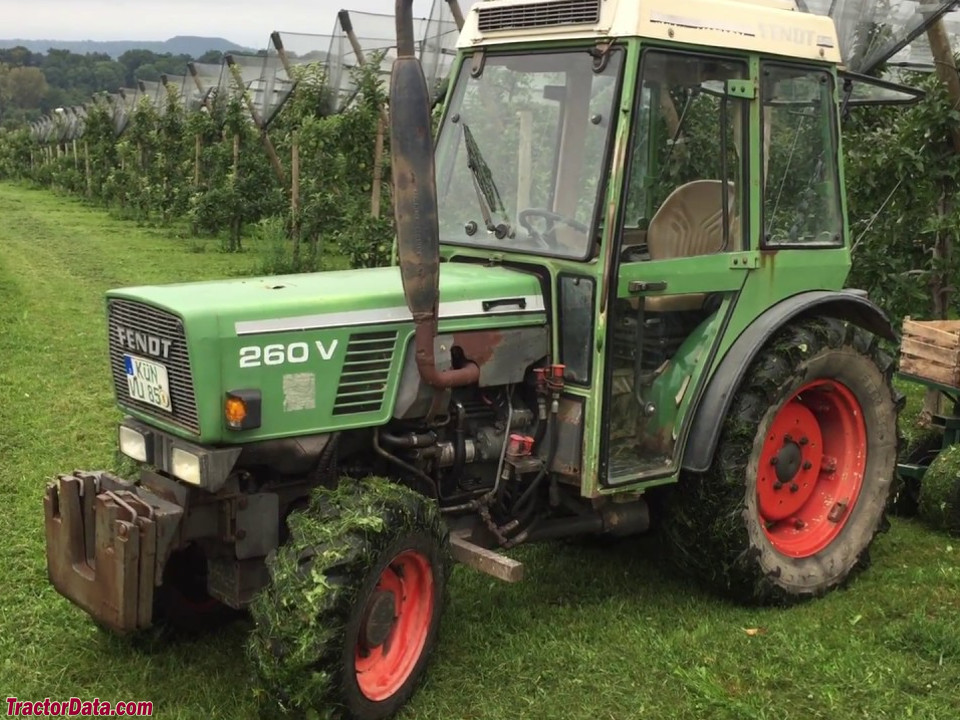

Fendt Farmer 260V

Recommended Implements & Sizing Guide

Engineering recommendations for Fendt Farmer 260V based on its 59 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	6 ft (72 in)1.8 m	Medium Duty	Medium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep	66 to 72 in165 - 180 cm	Medium Duty	Standard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage	7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙	Medium Duty	Field leveling and clod breaking behind plows.
Hay BalerHay & Forage	Small Square Baler (14x18")小方捆打捆机 (36x46 cm)	Medium Duty	Classic 2-string baler for horse and small livestock hay.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Fendt Farmer 260V.

Estimated Continuous Field Runtime: 5.1 hrs

Approximately 5.1 hours of continuous field operation at ~75% rated power on a full tank (15.8 gal / 60 L).

Estimated 75% Load Fuel Burn~3.1 gal/hr (11.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
