Fiat 300

The Fiat 300 is a tractor produced by Fiat. It is equipped with a 95.2 ci 1.6 L engine. The rated power output is 28 hp 20.9 kW. Transmission: 6 forward and 2 reverse. Operating weight: 2358 to 2688 pounds.

Overview

	1971 - 1978 Utility tractor
1971 - 1978
Utility tractor

Production
Manufacturer	Fiat
Utility tractor

Variants
300	2WD
300DT	4WD
300F	narrow
300M	Mountain

Fiat 300 Engine
Fiat 1.6L 2-cyl diesel
Fuel tank	7.6 gal 28.8 L
Engine details ...

Fiat 300 Transmission
6-speed gear
Transmission details ...

Fiat 300 Power
Engine	28 hp 20.9 kW

Mechanical
Two- or four-wheel drive
Final drives	spur gear
Manual steering
Mechanical band brakes
Open operator station.

Hydraulics
Type	open center
Pressure	2132 psi 147.0 bar
Pump flow	2.6 gpm 9.8 lpm

Tractor hitch
Rear Type	I
Control	position and draft control
Rear lift (at ends)	1653 lbs 749 kg

Power Take-off (PTO)
Rear PTO	transmission
Rear PTO Type	540 (1.375)
Engine RPM	540@2120
Engine RPM	994@2250

Dimensions & Tires
2WD Wheelbase	66.9 inches 169 cm
4WD Wheelbase	68.1 inches 172 cm
300F Wheelbase	60 inches 152 cm
Weight	2358 to 2688 pounds
Front tire	5.00-15
2WD Rear tire	11.2/10-24
Full dimensions and tires ...

Belt Pulley
Diameter	8.2 inches 20 cm
Width	4.7 inches 11 cm
RPM	1431

Electrical
Ground	negative
Battery volts	12
Battery AH	88

References
300 published by Fiat-Someca
300 published in 1971, by Fiat
300 DT published in 1971, by Fiat
300 Frutteto published in 1971, by Fiat
Instruction Manual 300 (603.04.798)

Engine

Engine Detail — 95.2 ci / 1.6 L Diesel

Manufacturer	Fiat 8025.02
Fuel Type	Diesel
Configuration	2-cylinder, liquid-cooled
Displacement	95.2 ci 1.6 L
Bore/Stroke	3.74x4.33 inches 95 x 110 mm
Power	28 hp 20.9 kW
Fuel system	direct injection
Compression	17:1
Rated RPM	2400
Starter volts	12

Transmission

Transmission — 6 forward and 2 reverse gear

Type	gear
Gears	6 forward and 2 reverse
Clutch	215.9mm dry disc

Dimensions

Fiat 300 Tires
2WD Standard tires (ag)	Front: 5.00-15. Rear: 11.2/10-24
4WD Standard tires (ag)	Front: 9.5/9-24. Rear: 8.00-20
300F Standard tires (ag)	Front: 5.00-15. Rear: 9.5/9-24

Dimensions
2WD Wheelbase	66.9 inches 169 cm
4WD Wheelbase	68.1 inches 172 cm
300F Wheelbase	60 inches 152 cm
2WD Length	108 inches 274 cm
4WD Length	106.8 inches 271 cm
300F Length	103.8 inches 263 cm
Width	51.2 inches 130 cm
2WD Clearance (front axle)	20.5 inches 52 cm
4WD Clearance (front axle)	13 inches 33 cm
2WD Front tread	41.2 to 64.6 inches 104 to 164 cm
4WD Front tread	51 inches 129 cm
Rear tread	39.3 to 66.8 inches 99 to 169 cm

Fiat 300 Weight
2WD	2358 lbs 1069 kg
4WD	2688 lbs 1219 kg
300F	2530 lbs 1147 kg

Fiat 300 Height
2WD Steering wheel	61.75 inches 156 cm
4WD Steering wheel	60.6 inches 153 cm
300F Steering wheel	53.8 inches 136 cm
2WD Hood	52.56 inches 133 cm
4WD Hood	51.75 inches 131 cm
300F Hood	45.6 inches 115 cm
ROPS	91.3 inches 231 cm

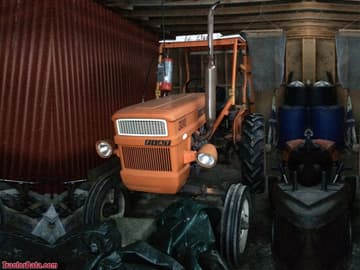

Photos
