Ford 1120
The Ford 1120 is a tractor produced by Ford. It is equipped with a 53.6 ci 0.9 L engine. The rated power output is 14 hp 10.4 kW. Transmission: infinite forward and reverse (2-range). Drive type: shaft. Operating weight: 350 lbs 158 kg.
Engine Power
14 hp
10.4 kW
Drive & Traction
shaft
Fuel & Capacities
4.8 gal
18.2 L
Transmission
infinite forward and reverse (2-range)
Operating Weight
350 lbs
158 kg
Ford 1120 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1987 - 1993
Twenty Compact SeriesCompact Utility tractorShibaura built |
|---|---|
1987 - 1993 | |
Twenty Compact Series | |
Compact Utility tractor | |
Shibaura built | |
1987 - 1993 | |
|---|---|
Twenty Compact Series | |
Compact Utility tractor | |
Shibaura built |
Production | |
|---|---|
Distributor | Ford |
Manufacturer | Shibaura |
Compact Utility tractor | |
Built in Japan | |
Original price was $9,000 in 1993 | |
Ford 1120 Engine | |
|---|---|
Shibaura 0.9L 3-cyl diesel | |
Fuel tank | 4.8 gal
18.2 L |
Engine details ...  | |
Ford 1120 Power | |
|---|---|
Engine (gross) | 14.7 hp
11.0 kW |
Engine (net) | 14 hp
10.4 kW |
Gear PTO (claimed) | 12.5 hp
9.3 kW |
Hydro PTO (claimed) | 12 hp
8.9 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Steering | manual |
Steering | power *Optional, available with hydrostatic transmission after 1989. |
Expanding shoe brakes | |
Two-post ROPS. | |
Hydraulics | |
|---|---|
Type | open center |
Pump flow | 4.7 gpm
17.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift (at ends) | 1406 lbs
637 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | transmission |
live *Optional with hydrostatic transmission | |
Rear PTO Type | 540 |
Mid PTO | optional |
Mid PTO Type | 2000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 55.3 inches
140 cm |
Weight | 1338 to 1429 pounds |
Front tire | 4.00-12 |
2WD Rear tire | 8-16 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Ford Shop Manual by Peter Letourneau | |
Mid-Mount Finishing Mower published in 1988, by Ford | |
12.5 to 34.5 PTO hp Compact Diesels published in 1987, by Ford | |
12.5 to 34.5 PTO hp Compact Diesel Tractors published in 1988, by Ford | |
12.5 to 34.5 PTO hp Compact Diesel Tractors published in 1993, by Ford | |
Tractor Buyer's Guide published in 1989, by Ford |
Engine
| 1987 - 1993
Twenty Compact SeriesCompact Utility tractorShibaura built |
|---|---|
1987 - 1993 | |
Twenty Compact Series | |
Compact Utility tractor | |
Shibaura built | |
1987 - 1993 | |
|---|---|
Twenty Compact Series | |
Compact Utility tractor | |
Shibaura built |
Engine Detail — 53.6 ci / 0.9 L Diesel
Manufacturer | Shibaura S723 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 53.6 ci
0.9 L |
Bore/Stroke | 2.83x2.83 inches
72 x 72 mm |
Power (net) | 14 hp
10.4 kW |
Power (gross) | 14.7 hp
11.0 kW |
Compression | 23:1 |
Rated RPM | 2500 |
Idle RPM | 800-2700 |
Firing order | 1-2-3 |
Starter volts | 12 |
Intake valve clearance | 0.008 inches*Cold
0.203 mm |
Exhaust valve clearance | 0.008 inches*Cold
0.203 mm |
Transmission
| 1987 - 1993
Twenty Compact SeriesCompact Utility tractorShibaura built |
|---|---|
1987 - 1993 | |
Twenty Compact Series | |
Compact Utility tractor | |
Shibaura built | |
1987 - 1993 | |
|---|---|
Twenty Compact Series | |
Compact Utility tractor | |
Shibaura built |
Transmission options | |
|---|---|
9-speed gear | |
hydrostatic |
Transmission — 9 forward and 3 reverse gear
Type | gear |
Gears | 9 forward and 3 reverse |
Transmission — infinite forward and reverse (2-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (2-range) |
Dimensions
| 1987 - 1993
Twenty Compact SeriesCompact Utility tractorShibaura built |
|---|---|
1987 - 1993 | |
Twenty Compact Series | |
Compact Utility tractor | |
Shibaura built | |
1987 - 1993 | |
|---|---|
Twenty Compact Series | |
Compact Utility tractor | |
Shibaura built |
Ford 1120 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 4.00-12. Rear: 8-16 |
4WD Standard tires (ag) | Front: 5-12. Rear: 8-16 |
Lawn/turf front | 20x8.00-10 |
Lawn/turf rear | 29x12.00-15 |
Dimensions | |
|---|---|
Wheelbase | 55.3 inches
140 cm |
Length | 106.3 inches
270 cm |
Width | 40.9 inches
103 cm |
Height (ROPS) | 80.1 inches
203 cm |
2WD Shipping weight | 1338 lbs
606 kg |
4WD Shipping weight | 1429 lbs
648 kg |
2WD Ground clearance | 10.1 inches
25 cm |
4WD Ground clearance | 9.6 inches
24 cm |
2WD Front tread | 33.6 to 35.4 inches
85 to 89 cm |
4WD Front tread | 32.3 inches
82 cm |
Rear tread | 33.5 to 39.3 inches
85 to 99 cm |
Attachments
| 1987 - 1993
Twenty Compact SeriesCompact Utility tractorShibaura built |
|---|---|
1987 - 1993 | |
Twenty Compact Series | |
Compact Utility tractor | |
Shibaura built | |
1987 - 1993 | |
|---|---|
Twenty Compact Series | |
Compact Utility tractor | |
Shibaura built |
Attachment overview | |
|---|---|
48" mid-mount mower deck | |
Snowblower | |
Blade | |
Front-end loader | |
Backhoe |
48" Mower deck | |
|---|---|
Type | mid-mount Ford 914 |
3-blade | |
Cutting width | 48 inches
121 cm |
Drive | shaft |
Weight | 350 lbs
158 kg |
Overall width | 60 inches
152 cm |
Cut height | 1.5 to 4 inch
3 to 10 cm |
Ford 756B Backhoe | |
|---|---|
Backhoe type | Ford 756B Backhoe |
Photos

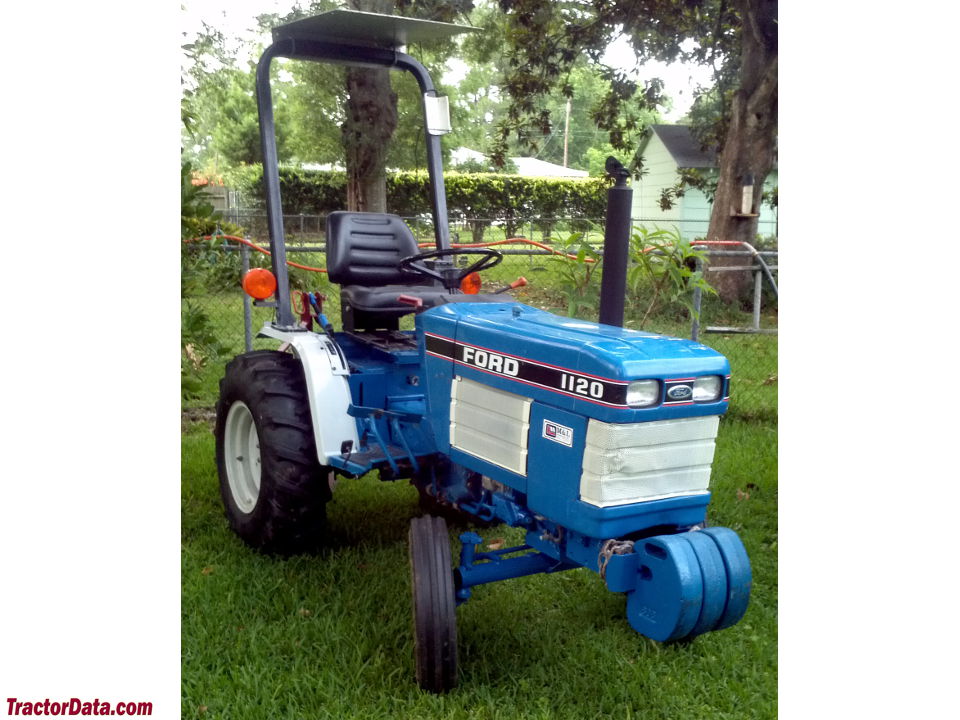

Ford 1120
