Ford 2000
The Ford 2000 is a tractor produced by Ford. It is equipped with a 144 ci 2.4 L engine. The rated power output is 42.7 hp 31.8 kW. Transmission: Over-Under. Operating weight: 3020 to 3362 pounds.
Overview
 | 1962 - 1975
Model year 1962-19651965-1975
Utility tractor |
|---|---|
1962 - 1975 | |
Model year 1962-19651965-1975 | |
Utility tractor | |
1962 - 1975 | |
|---|---|
Model year 1962-19651965-1975 | |
Utility tractor |
Production | |
|---|---|
Manufacturer | Ford |
Utility tractor | |
Built in Highland Park, Michigan, USA | |
The four-cylinder Ford 2000 tractor was very similar to the 601 Workmaster series of Ford tractors. It is entirely different than the later three-cylinder 2000 which replaced it. | |
Variants | |
|---|---|
2000 Offset | cultivating tractor |
Ford 2000 Engines | |
|---|---|
Ford 2.2L 4-cyl gasoline | |
Ford 2.4L 4-cyl diesel | |
Engine details ...  |
Ford 2000 Transmissions | |
|---|---|
4-speed gear | |
5-speed gear | |
10-speed full power shift | |
12-speed gear | |
Transmission details ...  |
Ford 2000 Power | |
|---|---|
Engine (gross) | 48.4 hp
36.1 kW |
Drawbar (claimed) | 28 hp
20.9 kW |
PTO (claimed) | 31 hp
23.1 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Utility Steering | manual |
Row-crop Steering | power |
Open operator station. | |
Photos | |
|---|---|
 | |
Ford 2000 photos...  |
Capacity | |
|---|---|
Fuel | 13 gal
49.2 L |
Hydraulic system | 2 gal
7.6 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 2 gal
7.6 L |
Pressure | 2000 psi
137.9 bar |
Valves | 2 |
Pump flow | 4.0 gpm
15.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift (at ends) | 2360 lbs
1070 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | tranmission |
live *Optional, available with the five-speed transmission. | |
independent *Independent PTO available with the Select-O-Speed transmission. | |
Rear PTO Type | 540 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 74.5 inches
189 cm |
Weight | 3020 to 3362 pounds |
Front tire | 5.50-16 |
Rear tire | 12.4-28 |
Full dimensions and tires ...  | |
Ford 2000 attachments | |
|---|---|
front-end loader | |
Attachment details ...  |

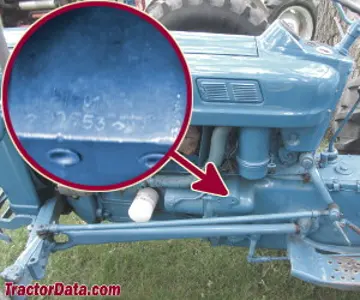

2000 Serial Number Location | |
|---|---|
 | |
Serial number stamped on the top of the starter mount casting, on the left side of the tractor. |
2000 Serial Numbers | |
|---|---|
1962 | 1001 |
1963 | 11949 |
1964 | 38931 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | positive (6V) |
negative (12V) | |
Charging system | generator |
Battery volts | 6 (gas/LP) |
12 (diesel) | |
References | |
|---|---|
 | |
Industrial Tractors and Equipment published in 1964, by Ford | |
Ford 2000 All Purpose Tractor published in 1963 | |
4000 and 2000 published in 1962, by Ford |
Engine
| 1962 - 1975
Model year 1962-19651965-1975
Utility tractor |
|---|---|
1962 - 1975 | |
Model year 1962-19651965-1975 | |
Utility tractor | |
1962 - 1975 | |
|---|---|
Model year 1962-19651965-1975 | |
Utility tractor |
Engine options | |
|---|---|
Ford 2.2L 4-cyl gasoline | |
Ford 2.4L 4-cyl diesel |
Engine Detail | |
|---|---|
Ford | |
gasoline | |
4-cylinder | |
liquid-cooled | |
Displacement | 134 ci
2.2 L |
Bore/Stroke | 3.4375x3.60 inches
87 x 91 mm |
Power (gross) | 48.4 hp
36.1 kW |
Air cleaner | oil bath |
Compression | 7.5:1 |
Rated RPM | 2200 |
Torque | 121.6 lb-ft
164.9 Nm |
Torque RPM | 1600 |
Firing order | 1-2-4-3 |
Starter | electric |
Starter volts | 6 |
Oil capacity | 5 qts
4.7 L |
Coolant capacity | 15 qts
14.2 L |
Engine Detail | |
|---|---|
Ford | |
diesel | |
4-cylinder | |
liquid-cooled | |
Displacement | 144 ci
2.4 L |
Bore/Stroke | 3.56x3.60 inches
90 x 91 mm |
Power (gross) | 42.7 hp
31.8 kW |
Air cleaner | oil bath |
Rated RPM | 2200 |
Torque | 111.3 lb-ft
150.9 Nm |
Torque RPM | 1400 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 5 qts
4.7 L |
Coolant capacity | 15 qts
14.2 L |
Transmission
| 1962 - 1975
Model year 1962-19651965-1975
Utility tractor |
|---|---|
1962 - 1975 | |
Model year 1962-19651965-1975 | |
Utility tractor | |
1962 - 1975 | |
|---|---|
Model year 1962-19651965-1975 | |
Utility tractor |
Transmission options | |
|---|---|
4-speed gear | |
5-speed gear | |
10-speed full power shift | |
12-speed gear |
Transmission | |
|---|---|
Type | gear |
Gears | 4 forward and 1 reverse |
Clutch | 254mm dry disc |
Oil capacity | 6 qts
5.7 L |
Speeds | |
|---|---|
With 12.4-28 rear tires. | |
 |
Transmission | |
|---|---|
Type | gear |
Gears | 5 forward and 1 reverse |
Clutch | 228.6mm dry discs |
Oil capacity | 8 qts
7.6 L |
Speeds | |
|---|---|
With 12.4-28 rear tires. | |
 |
Transmission | |
|---|---|
Transmission | Select-O-Speed |
Type | full power shift |
Gears | 10 forward and 2 reverse |
Oil capacity | 11 qts
10.4 L |
Speeds | |
|---|---|
 |
Transmission | |
|---|---|
Transmission | Over-Under |
Type | gear |
Gears | 12 forward and 3 reverse |
Auxiliary over-under transmission adds additional ranges to the base four-speed transmission. | |
Dimensions
| 1962 - 1975
Model year 1962-19651965-1975
Utility tractor |
|---|---|
1962 - 1975 | |
Model year 1962-19651965-1975 | |
Utility tractor | |
1962 - 1975 | |
|---|---|
Model year 1962-19651965-1975 | |
Utility tractor |
Ford 2000 Tires | |
|---|---|
Ag front | 5.50-16 |
Ag rear | 12.4-28 |
Ag rear | 13.6-28 |
14.9-28 | |
16.9-24 | |
Dimensions | |
|---|---|
Wheelbase | 74.5 inches
189 cm |
Length | 113.6 inches
288 cm |
Width | 87.5 inches
222 cm |
Height (steering wheel) | 57 inches
144 cm |
Utility Weight | 3020 lbs
1369 kg |
Row-crop Weight | 3362 lbs
1525 kg |
Utility Ground clearance | 20.5 inches
52 cm |
Utility Front tread | 52 to 80 inches
132 to 203 cm |
Row-crop Front tread | 52 to 81 inches
132 to 205 cm |
Utility Rear tread | 52 to 76 inches
132 to 193 cm |
Row-crop Rear tread | 56 to 84 inches
142 to 213 cm |
Attachments
| 1962 - 1975
Model year 1962-19651965-1975
Utility tractor |
|---|---|
1962 - 1975 | |
Model year 1962-19651965-1975 | |
Utility tractor | |
1962 - 1975 | |
|---|---|
Model year 1962-19651965-1975 | |
Utility tractor |
Photos
Ford 2000
Ford 2000
Ford 2000
Ford 2000 (4-cylinder) operator station and controls.
