Ford 846

The Ford 846 is a tractor produced by Ford. It is equipped with a 611 ci 10.0 L engine. The rated power output is 230 hp 171.5 kW. Transmission: Versatile Three-by-Five. Operating weight: 18000 to 23000 pounds.

Overview

	1989 - 1993 800 SeriesFour-wheel Drive (4WD) tractor
1989 - 1993
800 Series
Four-wheel Drive (4WD) tractor

Series map: 846876230.0hp280.0hp

Note: the Ford model 846 is the same as the Versatile 846. The following data is from the 846 listing.

Production
Manufacturer	Ford
Four-wheel Drive (4WD) tractor
Built in Winnipeg, Manitoba, Canada

Ford 846 Engine
Cummins 10.0L 6-cyl diesel
Engine details ...

Ford 846 Power
Engine	230 hp 171.5 kW
PTO (claimed)	202 hp 150.6 kW

Mechanical
Four-wheel drive
Final drives	outboard planetary
	inboard planetary (row-crop)
Articulated power steering
Hydraulic disc brakes
Cab standard with air-conditioning.

Capacity
Fuel	246 gal 931.1 L
Hydraulic system	15.3 gal 57.9 L

Hydraulics
Type	closed center load sensing *Steering pump is open center.
Capacity	15.3 gal 57.9 L
Pressure	2250 psi 155.1 bar
Valves	4 to 5
Pump flow	25.2 gpm 95.4 lpm
Steering flow	25.9 gpm 98.0 lpm
Steering press.	2300 psi 158.6 bar

Tractor hitch
Rear Type	III
	III/IVN
Control	position control
Rear lift (at 24"/610mm)	10313 lbs (III) 4677 kg
	13036 lbs (IV/III) 5913 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000 (1.75)

Dimensions & Tires
Wheelbase	130 inches 330 cm
Weight	18000 to 23000 pounds
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	90
Batteries	4
Battery CCA	625
Battery volts	12

References
Versatile 230 to 360 hp 4WD Tractors published in 1989, by Ford
Tractor Buyer's Guide published in 1989, by Ford

Engine

Series map: 846876230.0hp280.0hp

Note: the Ford model 846 is the same as the Versatile 846. The following data is from the 846 listing.

Engine Detail — 611 ci / 10.0 L Diesel

Manufacturer	Cummins L10-A230
Configuration	aftercooled turbocharged diesel, 6-cylinder, liquid-cooled inline
Displacement	611 ci 10.0 L
Bore/Stroke	4.921x5.354 inches 125 x 136 mm
Power	230 hp 171.5 kW
Air cleaner	dual dry element
Pre-heating	ether injection
	block heater
Rated RPM	2100
Torque	748 lb-ft 1014.3 Nm
Torque RPM	1300
Starter volts	12
Oil capacity	28 qts 26.5 L
Coolant capacity	55 qts 52.1 L

Ford 846 Engine

Transmission

Series map: 846876230.0hp280.0hp

Note: the Ford model 846 is the same as the Versatile 846. The following data is from the 846 listing.

Transmission options
12-speed constant mesh
15-speed partially synchronized

Transmission — 12 forward and 4 reverse constant mesh

Type	constant mesh
Gears	12 forward and 4 reverse
Clutch	356mm dry disc
Oil capacity	21.5 qts 20.3 L

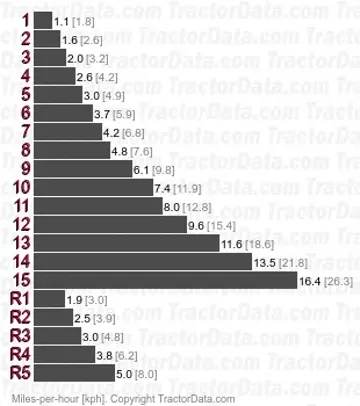

Transmission — Versatile Three-by-Five

Transmission	Versatile Three-by-Five
Type	partially synchronized
Gears	15 forward and 5 reverse
Clutch	228mm hydraulic wet disc
Five synchronized gears in three ranges, plus reverse range.

Dimensions

Series map: 846876230.0hp280.0hp

Note: the Ford model 846 is the same as the Versatile 846. The following data is from the 846 listing.

Ford 846 Tires
Ag front	18.4x38
	18.4x42
	24.5x32
	30.5x32
Ag rear	18.4x38
	18.4x42
	24.5x32
	30.5x32

Dimensions
Wheelbase	130 inches 330 cm
Length	260 inches 660 cm
Ground clearance	16.1 inches 40 cm
Front axle	Bar
Bar rear axle (row-crop)
Front tread	60 to 122 inches 152 to 309 cm (row-crop)
Rear tread	60 to 122 inches 152 to 309 cm (row-crop)

Ford 846 Weight
Shipping	18000 lbs 8164 kg
Operating	23000 lbs 10432 kg
Max capacity	28000 lbs 12700 kg

Ford 846 Height
Steering wheel	102.4 inches 260 cm
Cab	125 inches 317 cm
Exhaust	131 inches 332 cm

Photos

Ford 846
