Ford 100
The Ford 100 is a tractor produced by Ford Lawn Tractors. It is equipped with a 391 cc 23.9 ci engine. The listed engine power is Gasoline (gross): 10 hp / 7.5 kW. Transmission: 4 forward and 1 reverse. Operating weight: 636 lbs 288 kg.
Engine Power
Gasoline (gross): 10 hp / 7.5 kW
Fuel & Capacities
1.25 gal
4.7 L
Transmission
4 forward and 1 reverse
Operating Weight
636 lbs
288 kg
Overview
 | 1966 - 1971
Model year 1966-19681969-1971
Garden tractorJacobsen built
Garden tractor
Jacobsen built |
|---|
Production | |
|---|---|
Distributor | Ford |
Manufacturer | Jacobsen |
Garden tractor | |
Ford 100 Engine | |
|---|---|
10HP Kohler 391cc 1-cyl gasoline | |
Fuel tank | 1.25 gal
4.7 L |
Engine details ...  | |
Ford 100 Transmission | |
|---|---|
4-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Tractor hitch | |
|---|---|
Type | sleeve hitch OptOptional |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Wheelbase | 42 inches
106 cm |
Weight | 636 lbs
288 kg |
Front tire | 6.50-8 |
Rear tire | 8-00-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | starter-generator |
Battery volts | 12 |
References | |
|---|---|
 | |
Tractors For Industrial Use published in 1967, by Ford | |
Industrial Tractors - Equipment published in 1968, by Ford | |
Lawn and Garden Tractors published in 1966, by Ford | |
Lawn and Garden Tractors published in 1967, by Ford | |
Engine Repair Manual (SE 3234) published in 1968 |
Engine
Engine Detail — 391 cc / 23.9 ci Gasoline
Manufacturer | Kohler K241 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 391 cc
23.9 ci |
Bore/Stroke | 3.25x2.875 inches
83 x 73 mm |
Power (gross) | 10 hp
7.5 kW |
Air cleaner | dry |
Starter | electric |
Starter volts | 12 |
Oil capacity | 2.5 qts
2.4 L |
Transmission
Transmission — 4 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 4 forward and 1 reverse |
 | |
Dimensions
Ford 100 Tires | |
|---|---|
Lawn/turf front | 6.50-8 |
Lawn/turf rear | 8-00-12 |
Dimensions | |
|---|---|
Wheelbase | 42 inches
106 cm |
Length | 61 inches
154 cm |
Width | 33 inches
83 cm |
Height (steering wheel) | 39 inches
99 cm |
Weight | 636 lbs
288 kg |
Attachments
Attachment overview | |
|---|---|
36" mid-mount mower deck | |
42" mid-mount mower deck | |
48" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

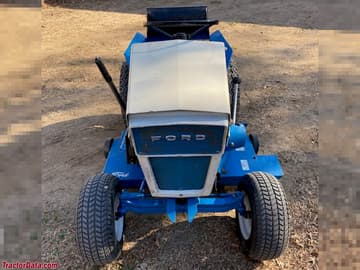

Ford 100
Ford 100
Ford 100
Ford 100
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Ford Lawn Tractors Ford 100.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Ford Lawn Tractors Ford 100 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Ford Lawn Tractors Ford 100.
Converted Equivalents:
Horsepower (HP)10 hp
Kilowatts (kW)7.5 kW
Metric Horsepower (PS / CV)10.1 PS
