Ford LGT-100

The Ford LGT-100 is a tractor produced by Ford Lawn Tractors. It is equipped with a 391 cc 23.9 ci engine. The rated power output is 10 hp 7.5 kW. Transmission: 4 forward and 1 reverse. Operating weight: 755 lbs 342 kg.

Overview

	1972 - 1983 Model year 1972-19761977-1983 LGT SeriesGarden tractorJacobsen built
1972 - 1983
Model year 1972-19761977-1983
LGT Series
Garden tractor
Jacobsen built

1972 - 1983
Model year 1972-19761977-1983
LGT Series
Garden tractor
Jacobsen built

Production
Distributor	Ford
Manufacturer	Jacobsen
Garden tractor
Built in Racine, Wisconsin, USA

Variants
GT-10	similar Jacobsen model

Ford LGT-100 Engine
10HP Kohler 391cc 1-cyl gasoline
Fuel tank	2 gal 7.6 L
Engine details ...

Ford LGT-100 Transmission
4-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Integral mechanical band brakes
Open operator station. All-weather cab optional.

Tractor hitch
Type	sleeve hitch OptOptional

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	46 inches 116 cm
Weight	755 lbs 342 kg
Front tire	16x6.50-8
Rear tire	23x8.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Buyer's Guide '73 published in 1973, by Ford
Lawn and Garden Tractors published in 1972, by Ford
Attachments for Ford Lawn and Garden Tractors published in 1973
Lawn and Garden Tractors published in 1973, by Ford
Lawn and Garden Tractors published in 1974, by Ford
Attachments for Ford Lawn and Garden Tractors published in 1973
LGT Series Repair Manual (SE 3772)

Engine

	1972 - 1983 Model year 1972-19761977-1983 LGT SeriesGarden tractorJacobsen built
1972 - 1983
Model year 1972-19761977-1983
LGT Series
Garden tractor
Jacobsen built

1972 - 1983
Model year 1972-19761977-1983
LGT Series
Garden tractor
Jacobsen built

Engine Detail — 391 cc / 23.9 ci Gasoline

Manufacturer	Kohler K241S
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	391 cc 23.9 ci
Bore/Stroke	3.25x2.875 inches 83 x 73 mm
Power (gross)	10 hp 7.5 kW
Starter volts	12
Oil capacity	1.5 qts 1.4 L

Transmission

	1972 - 1983 Model year 1972-19761977-1983 LGT SeriesGarden tractorJacobsen built
1972 - 1983
Model year 1972-19761977-1983
LGT Series
Garden tractor
Jacobsen built

1972 - 1983
Model year 1972-19761977-1983
LGT Series
Garden tractor
Jacobsen built

Transmission — 4 forward and 1 reverse belt-driven gear

Type	belt-driven gear
Gears	4 forward and 1 reverse

Dimensions

	1972 - 1983 Model year 1972-19761977-1983 LGT SeriesGarden tractorJacobsen built
1972 - 1983
Model year 1972-19761977-1983
LGT Series
Garden tractor
Jacobsen built

1972 - 1983
Model year 1972-19761977-1983
LGT Series
Garden tractor
Jacobsen built

Ford LGT-100 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x8.50-12

Dimensions
Wheelbase	46 inches 116 cm
Length	71.5 inches 181 cm
Width	42 inches 106 cm
Height (steering wheel)	42 inches 106 cm
Weight	755 lbs 342 kg
Ground clearance	5.75 inches (front mounts) 14 cm
	14 inches (frame) 35 cm
Clearance (front axle)	9.1 inches 23 cm
Clearance (rear axle)	6.6 inches 16 cm
Clearance (drawbar)	8 inches 20 cm

Attachments

	1972 - 1983 Model year 1972-19761977-1983 LGT SeriesGarden tractorJacobsen built
1972 - 1983
Model year 1972-19761977-1983
LGT Series
Garden tractor
Jacobsen built

1972 - 1983
Model year 1972-19761977-1983
LGT Series
Garden tractor
Jacobsen built

Attachment overview
42" mid-mount mower deck
50" mid-mount mower deck
Snowblower
Blade
Front-end loader
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

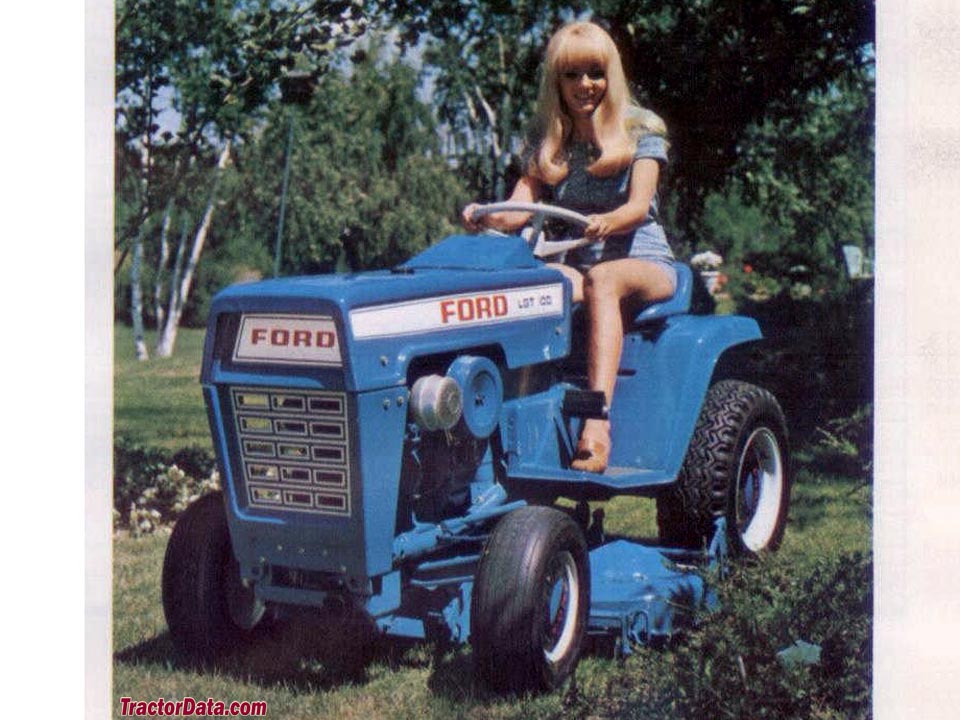

Ford open-sided LGT-100 advertising photo.

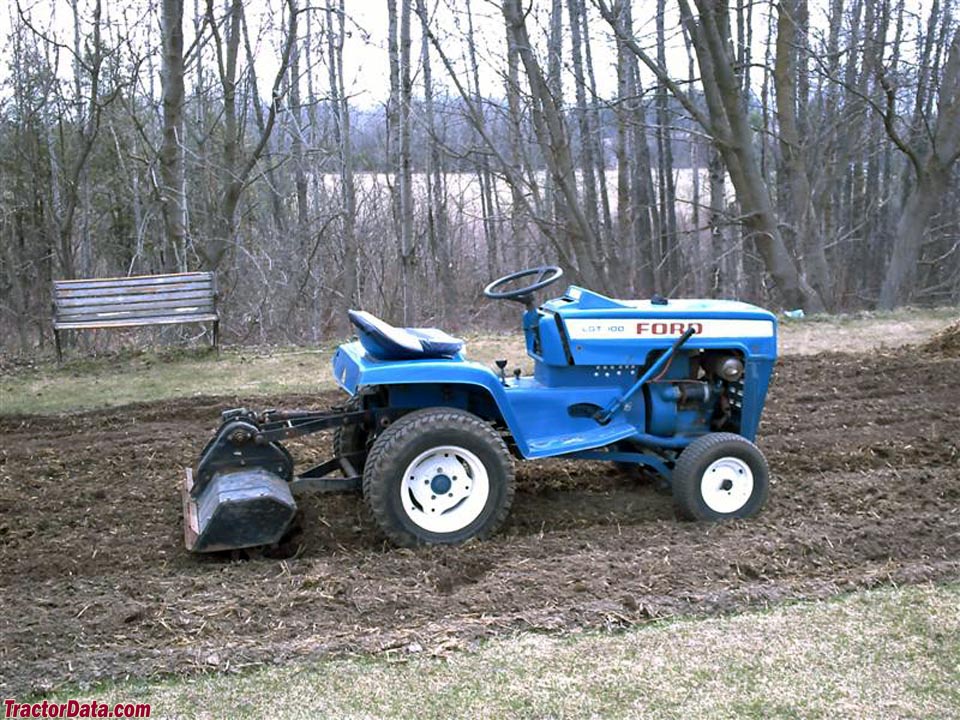

Ford LGT-100 with rear tiller.

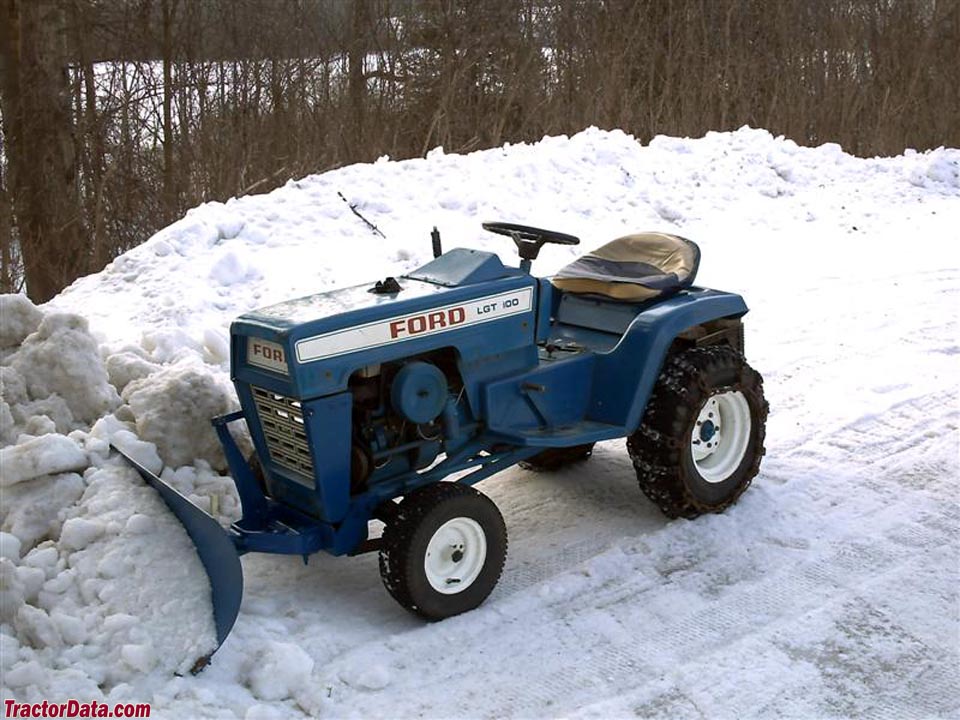

Ford LGT-100 plowing snow with front-mounted blade.

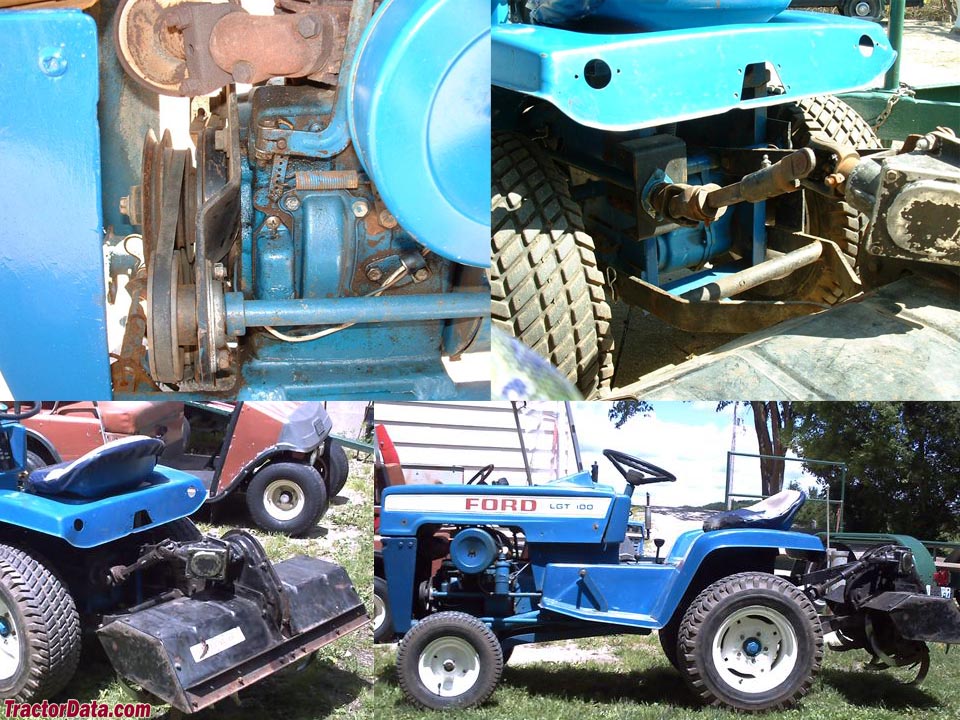

Detail of the rear PTO and tiller attachment on the Ford LGT-100.
