Ford LT-100

The Ford LT-100 is a tractor produced by Ford Lawn Tractors. It is equipped with a 399 cc 24.36 ci engine. The listed engine power is Gasoline (gross): 10 hp / 7.5 kW. Transmission: 3 forward and 1 reverse. Operating weight: 540 lbs 244 kg.

Engine Power
Gasoline (gross): 10 hp / 7.5 kW
Fuel & Capacities
Gasoline
Transmission
3 forward and 1 reverse
Operating Weight
540 lbs 244 kg

Overview

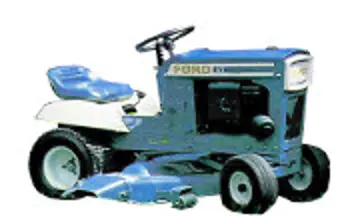

Ford LT-100 tractor photo
1977 - 1979 Lawn tractor
Production
Manufacturer
Ford
Lawn tractor
Variants
100
similar Jacobsen model
Ford LT-100 Engine
10HP Briggs & Stratton 399cc 1-cyl gasoline
Engine details ...
Ford LT-100 Transmission
3-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Power Take-off (PTO)
Mid PTO
independent
Clutch
manual
Mid PTO Type
pulley
Dimensions & Tires
Wheelbase
42 inches 106 cm
Weight
540 lbs 244 kg
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
LT-100 references literature
Lawn and Garden Tractors published in 1978, by Ford
Lawn and Garden Tractor Attachments published in 1977, by Ford

Engine

Engine Detail — 399 cc / 24.36 ci Gasoline

Manufacturer
Briggs & Stratton 252707
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled vertical-shaft
Displacement
399 cc 24.36 ci
Bore/Stroke
3.4375x2.625 inches 87 x 67 mm
Power (gross)
10 hp 7.5 kW
Starter volts
12
Oil capacity
1.25 qts 1.2 L

Transmission

Transmission — 3 forward and 1 reverse belt-driven gear

Type
belt-driven gear
Gears
3 forward and 1 reverse

Dimensions

Ford LT-100 Tires
Dimensions
Wheelbase
42 inches 106 cm
Length
58 inches 147 cm
Weight
540 lbs 244 kg

Attachments

42" Mower deck
Type
mid-mount Ford
Cutting width
42 inches 106 cm

Photos

Ford LT-100 tractor photo

Ford LT-100 tractor photo

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Ford Lawn Tractors Ford LT-100.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Ford Lawn Tractors Ford LT-100 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Ford Lawn Tractors Ford LT-100.

Converted Equivalents:

Horsepower (HP)10 hp
Kilowatts (kW)7.5 kW
Metric Horsepower (PS / CV)10.1 PS
