fordson new major

OverviewEngineTransmissionDimensionsTestsPhotos
Fordson E1A New Major tractor photo
1952 - 1958
1952 - 1958
1952 - 1958
1952 - 1958
Tractor Tests
NTTL 500: diesel 6-speed 2WD
NTTL 501: gasoline 6-speed 2WD
Nebraska Tractor Test 500

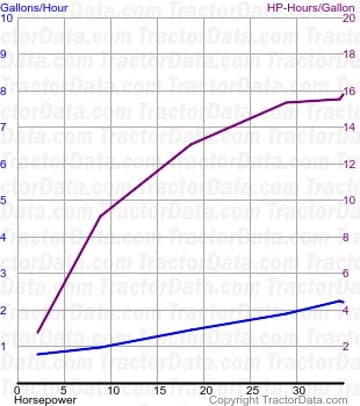

E1A New Major fuel use from test 500
E1A New Major fuel use from test 500
E1A New Major fuel use from test 500
E1A New Major fuel use from test 500
Nebraska Tractor Test 500
Diesel 6-speed 2WD August 17 - 27, 1953 Link: Nebraska Tractor Test 500 file
Belt power (max)
38.49 hp 28.7 kW
Belt fuel use (max)
2.5 gal/hour 9.5 l/hour
Drawbar performance
Max power
34.2 hp 25.5 kW
Gear 3 used for power test.
Max pull
5315 lbs 2410 kg
Gear 1 used for pull test.
Nebraska Tractor Test 501

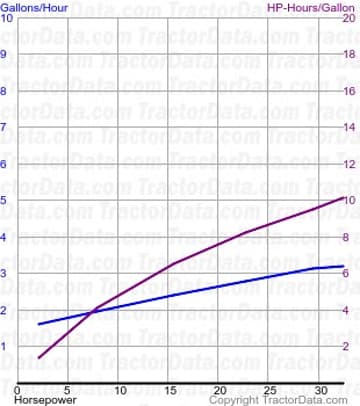

E1A New Major fuel use from test 501
E1A New Major fuel use from test 501
E1A New Major fuel use from test 501
E1A New Major fuel use from test 501
Nebraska Tractor Test 501
Gasoline 6-speed 2WD August 17 - 26, 1953 Link: Nebraska Tractor Test 501 file
Belt power (max)
33.56 hp 25.0 kW
Belt fuel use (max)
3.3 gal/hour 12.5 l/hour
Drawbar performance
Max power
30 hp 22.4 kW
Gear 3 used for power test.
Max pull
5016 lbs 2275 kg
Gear 1 used for pull test.
