fordson new major
 | 1952 - 1958 | 1952 - 1958 |
|---|---|---|
1952 - 1958 | ||
1952 - 1958 |
|---|
Transmission | |||||||
|---|---|---|---|---|---|---|---|
Type | gear | ||||||
Gears | 6 forward and 2 reverse | ||||||
Clutch | dry disc | ||||||
Oil capacity | 21.6 qts
20.4 L | ||||||
Oil type | 90oF [32oC]↑ : SAE140 90o↔10oF [32o↔-12oC] : SAE90 10oF [-12oC]↓ : SAE80 | 90oF [32oC]↑ | : SAE140 | 90o↔10oF [32o↔-12oC] | : SAE90 | 10oF [-12oC]↓ | : SAE80 |
90oF [32oC]↑ | : SAE140 | ||||||
90o↔10oF [32o↔-12oC] | : SAE90 | ||||||
10oF [-12oC]↓ | : SAE80 | ||||||
Three speeds, plus reverse, in two ranges. | |||||||
90oF [32oC]↑ | : SAE140 |
|---|---|
90o↔10oF [32o↔-12oC] | : SAE90 |
10oF [-12oC]↓ | : SAE80 |

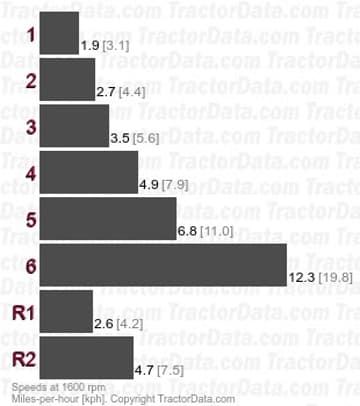

Speeds | |
|---|---|
 |

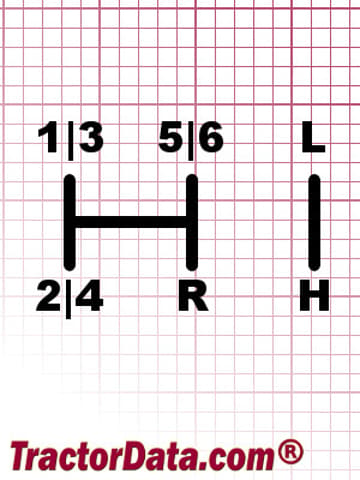

Shift Pattern | |
|---|---|
 |
