fordson power major
 | 1958 - 1961 | 1958 - 1961 |
|---|---|---|
1958 - 1961 | ||
1958 - 1961 |
|---|
Engine options | |
|---|---|
Ford 3.6L 4-cyl diesel | |
Ford 3.3L 4-cyl gasoline |
Engine Detail | |
|---|---|
Ford | |
diesel | |
4-cylinder | |
liquid-cooled | |
Displacement | 220 ci
3.6 L |
Bore/Stroke | 3.937x4.524 inches
100 x 115 mm |
Air cleaner | oil bath |
Compression | 16.1:1 |
Rated RPM | 1600 |
Firing order | 1-2-4-3 |
Starter | electric |
| inertia starter optional |
Starter volts | 12 |
Oil capacity | 7.2 qts
6.8 L |
Coolant capacity | 14.4 qts
13.6 L |

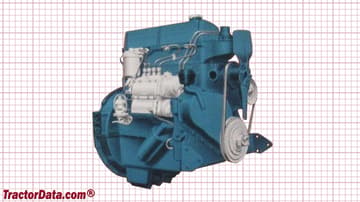

Fordson Power Major Engine | |
|---|---|
 |
Engine Detail | |
|---|---|
Ford | |
gasoline | |
4-cylinder | |
liquid-cooled | |
Displacement | 199 ci
3.3 L |
Bore/Stroke | 3.74x4.524 inches
95 x 115 mm |
Compression | 5.9:1 |
Rated RPM | 1600 |
Firing order | 1-2-4-3 |
Starter volts | 12 |
Oil capacity | 7.2 qts
6.8 L |
Sparkplug gap | 0.025 inches
0.635 mm |
Point gap | 0.015 inches
0.381 mm |
