fordson power major
![]() | 1958 - 1961 | 1958 - 1961 |
|---|---|---|
1958 - 1961 | ||
1958 - 1961 |
|---|
Nebraska Tractor Test 685 | ||
|---|---|---|
![]() | ![]() | |
![]() | ||
![]() |
|---|
Nebraska Tractor Test 685 | |
|---|---|
Diesel 6-speed 2WD
February 27, 1959 - March 16, 1957
Link: Nebraska Tractor Test 685 file | |
PTO performance | |
Power at rated engine speed | 47.65 hp
35.5 kW |

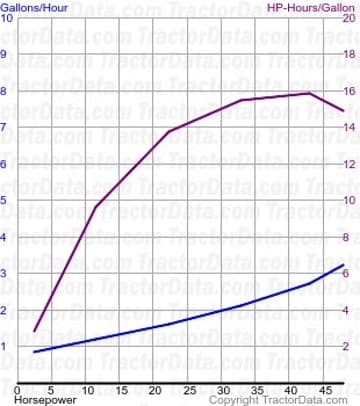

Fuel use | 3.2 gal/hour
12.1 l/hour |
Power at rated PTO speed | 45.39 hp
33.8 kW |
Fuel use | 3.0 gal/hour
11.4 l/hour |
Drawbar performance | |
Max power | 42.63 hp
31.8 kW |
Fuel use | 3.2 gal/hour
12.1 l/hour |
Gear 3 used for power test. | |
Max pull | 8,038 lbs
3646 kg |
Gear 1 used for pull test. | |
