Fox River Tractor Company 20-40

The Fox River Tractor Company 20-40 is a tractor produced by Fox River Tractor Company. It is equipped with a 713 ci 11.7 L engine. Transmission: 3 forward and 1 reverse. Operating weight: 6700 lbs 3039 kg.

Overview

	1920 - 1922 Standard-tread tractor

Production
Manufacturer	Fox River Tractor Company
Standard-tread tractor
Built in Appleton, Wisconsin, USA

Fox River Tractor Company 20-40 Engine
Fox River Tractor Company 11.7L 4-cyl kerosene
Fuel tank	20 gal 75.7 L
Aux. fuel	2 gal 7.6 L
Engine details ...

Fox River Tractor Company 20-40 Transmission
3-speed gear
Transmission details ...

Fox River Tractor Company 20-40 Power
Drawbar (claimed)	20 hp 14.9 kW
Belt (claimed)	40 hp 29.8 kW
Plows	4 (14-inch)

Mechanical
Two-wheel drive
Final drives	spur gear
Steering	manual
Open operator station.

Dimensions & Tires
Weight	6700 lbs 3039 kg
Rear tire	60x12
Full dimensions and tires ...

Belt Pulley
Diameter	18 inches 45 cm
Width	10 inches 25 cm
RPM	650
Speed	3060 ft/min 932.69 meters/min

Engine

Engine Detail — 713 ci / 11.7 L Kerosene

Manufacturer	Fox River Tractor Company
Fuel Type	Kerosene
Configuration	4-cylinder 8-valve, liquid-cooled
Displacement	713 ci 11.7 L
Bore/Stroke	5.50x7.50 inches 140 x 190 mm
Fuel system	Kingston carburator
Rated RPM	650
Starter type	hand-crank

Transmission

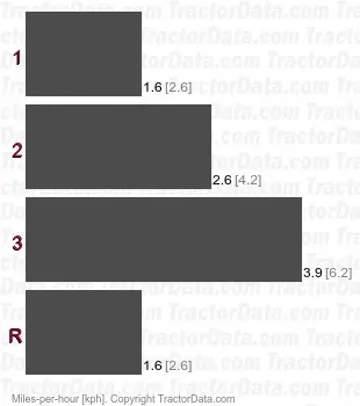

Transmission — 3 forward and 1 reverse gear

Type	gear
Gears	3 forward and 1 reverse

Dimensions

Fox River Tractor Company 20-40 Tires
Ag rear	60x12 (steel)

Dimensions
Length	138 inches 350 cm
Width	72 inches 182 cm
Height	72 inches 182 cm
Weight	6700 lbs 3039 kg

Photos

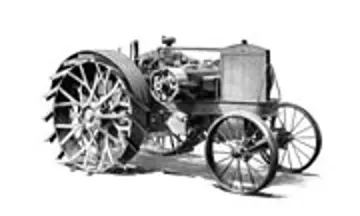

Fox River Tractor Company 20-40 tractor photo
