Gibson Super D2
The Gibson Super D2 is a tractor produced by Gibson. It is equipped with a 54 ci 0.9 L engine. The listed engine power is Gasoline (listed): 12 hp / 8.9 kW. Transmission: 3 forward and 1 reverse. Operating weight: 1,375 lbs 623 kg.
Engine Power
Gasoline (listed): 12 hp / 8.9 kW
Fuel & Capacities
Gasoline
Transmission
3 forward and 1 reverse
Operating Weight
1,375 lbs
623 kg
Overview
 | 1950 - 1958 |
|---|
Production | |
|---|---|
Manufacturer | Gibson |
Built in Longmont, Colorado, USA | |
Gibson Super D2 Engine | |
|---|---|
Wisconsin 0.9L 2-cyl gasoline | |
Engine details ...  |
Gibson Super D2 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Gibson Super D2 Power | |
|---|---|
Engine | 12 hp
8.9 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Wheelbase | 52 inches
132 cm |
Weight | 1,375 lbs
623 kg |
Front tire | 4.00x12 |
Rear tire | 7/8/9.00x24 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 54 ci / 0.9 L Gasoline
Manufacturer | Wisconsin TF |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled |
Displacement | 54 ci
0.9 L |
Bore/Stroke | 3.25x3.25 inches
83 x 83 mm |
Power | 12 hp
8.9 kW |
Transmission
Transmission — 3 forward and 1 reverse gear
Type | gear |
Gears | 3 forward and 1 reverse |
Dimensions
Gibson Super D2 Tires | |
|---|---|
Ag front | 4.00x12 |
Ag rear | 7/8/9.00x24 |
Dimensions | |
|---|---|
Wheelbase | 52 inches
132 cm |
Weight | 1,375 lbs
623 kg |

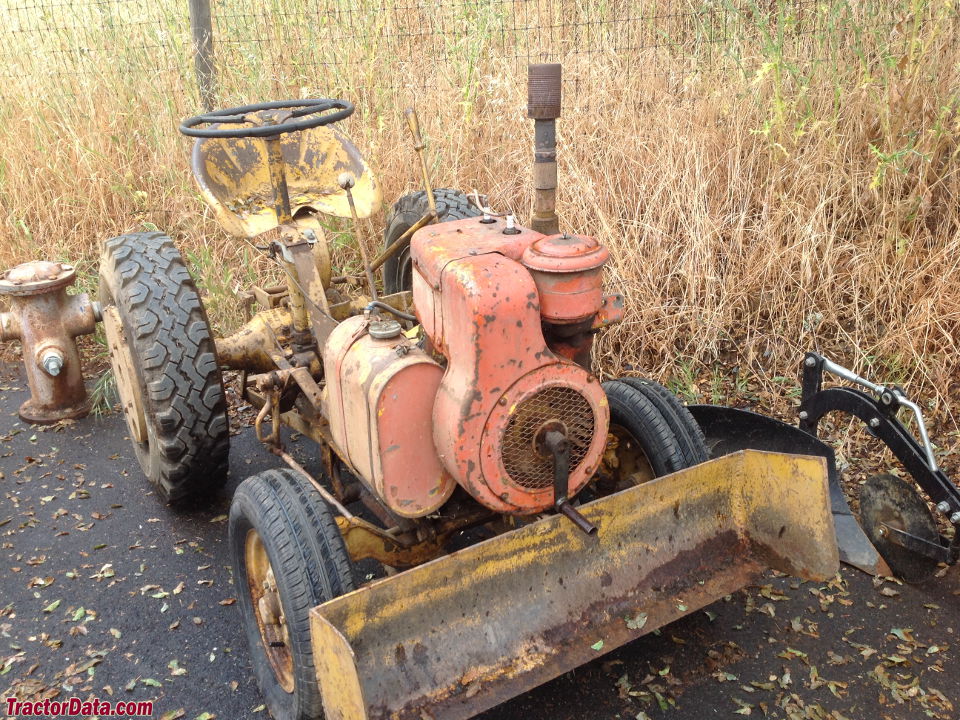

Photos

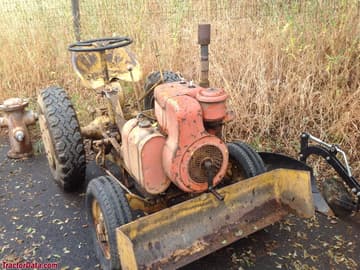

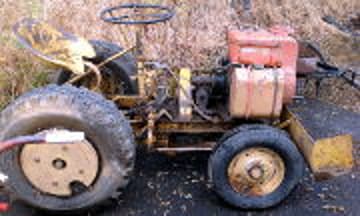

Gibson Super D2
Gibson Super D2
Gibson Super D2
Gibson Super D2
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Gibson Super D2.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Gibson Super D2 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Gibson Super D2.
Converted Equivalents:
Horsepower (HP)12 hp
Kilowatts (kW)8.9 kW
Metric Horsepower (PS / CV)12.2 PS
