Gilson 52081 LT11S

The Gilson 52081 LT11S is a tractor produced by Gilson Lawn Tractors. It is equipped with a 399 cc 24.36 ci engine. The rated power output is 11 hp 8.2 kW. Transmission: Peerless 800. Operating weight: 454 lbs 205 kg.

Overview

	1983 - 1987 Lawn tractor
1983 - 1987
Lawn tractor

Production
Manufacturer	Gilson
Lawn tractor

Gilson 52081 Engine
11HP Briggs & Stratton 399cc 1-cyl gasoline
Fuel tank	1 gal 3.8 L
Engine details ...

Gilson 52081 Transmission
5-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	manual idler

Dimensions & Tires
Weight	454 lbs 205 kg
Front tire	15x6.00-6
Rear tire	18x8.50-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Tractors Mower Tillers published in 1983, by Gilson
Tractors Mower Tillers published in 1983, by Gilson
Tractors - Rear Engine Riders - Tillers - Mowers published in 1985, by Gilson
Tractors - Riders - Tillers - Mowers - Snowthrowers published in 1985, by Gilson

Engine

Engine Detail — 399 cc / 24.36 ci Gasoline

Manufacturer	Briggs & Stratton 252707
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	399 cc 24.36 ci
Bore/Stroke	3.4375x2.625 inches 87 x 67 mm
Power (gross)	11 hp 8.2 kW
Starter	electric
Starter volts	12

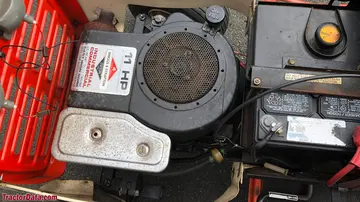

Gilson 52081 Engine
Image courtesy of Dan Coppola

Transmission

Transmission — Peerless 800

Transmission	Peerless 800
Type	belt-driven gear
Gears	5 forward and 1 reverse

Dimensions

Gilson 52081 Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	18x8.50-8

Dimensions
Shipping weight	454 lbs 205 kg

Attachments

Attachment overview
38" mid-mount mower deck
Snowblower
Blade

38" Mower deck
Type	mid-mount Gilson
	2-blade with manual lift
Cutting width	38 inches 96 cm

Photos

Gilson 52081 LT11S
