Gravely 1138
The Gravely 1138 is a tractor produced by Gravely Lawn Tractors. The listed engine power is Gasoline (gross): 11 hp / 8.2 kW. Transmission: 6 forward and 1 reverse. Operating weight: 477 lbs 216 kg.
Engine Power
Gasoline (gross): 11 hp / 8.2 kW
Fuel & Capacities
1.75 gal
6.6 L
Transmission
6 forward and 1 reverse
Operating Weight
477 lbs
216 kg
Overview
 | 1984 - 1987
1100 SeriesGarden tractor
1100 Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Gravely (a part of Ariens) |
Garden tractor | |
Gravely 1138 Engine | |
|---|---|
11HP Briggs & Stratton 1-cyl gasoline | |
Fuel tank | 1.75 gal
6.6 L |
Engine details ...  | |
Gravely 1138 Transmission | |
|---|---|
6-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Wheelbase | 46 inches
116 cm |
Weight | 477 to 540 pounds |
Front tire | 13x5.00-6 |
Rear tire | 18x8.50-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 3 |
Battery volts | 12 |
References | |
|---|---|
 | |
Riding Tractors published in 1986, by Gravely |
Engine
Engine Detail — Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Power (gross) | 11 hp
8.2 kW |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.5 qts
1.4 L |
Transmission
Transmission — 6 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 6 forward and 1 reverse |
 | |
Dimensions
Gravely 1138 Tires | |
|---|---|
Lawn/turf front | 13x5.00-6 |
Lawn/turf rear | 18x8.50-8 |
Dimensions | |
|---|---|
Wheelbase | 46 inches
116 cm |
Length | 61 inches
154 cm |
Height | 36 inches
91 cm |
Weight | 477 lbs
216 kg |
Shipping weight | 540 lbs
244 kg |
Attachments
Attachment overview | |
|---|---|
38" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
38" Mower deck | |
|---|---|
Type | mid-mount Gravely |
manual lift | |
Cutting width | 38 inches
96 cm |
Overall width | 49.5 inches
125 cm |
Cut height | 1.5 to 4 inch
3 to 10 cm |
Photos

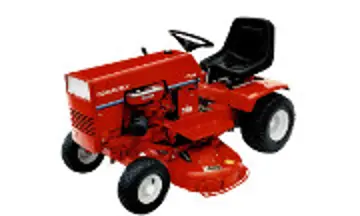

Gravely 1138 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Gravely Lawn Tractors Gravely 1138.
Estimated Continuous Field Runtime: 3.1 hrs
Approximately 3.1 hours of continuous field operation at ~75% rated power on a full tank (1.8 gal / 6.6 L).
Estimated 75% Load Fuel Burn~0.6 gal/hr (2.2 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Gravely Lawn Tractors Gravely 1138 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Gravely Lawn Tractors Gravely 1138.
Converted Equivalents:
Horsepower (HP)11 hp
Kilowatts (kW)8.2 kW
Metric Horsepower (PS / CV)11.2 PS
