Gravely 14-G

The Gravely 14-G is a tractor produced by Gravely Lawn Tractors. It is equipped with a 398 cc 24.3 ci engine. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: 8 forward and 4 reverse. Operating weight: 853 lbs 386 kg.

Engine Power
Gasoline (gross): 14 hp / 10.4 kW
Fuel & Capacities
5.3 gal 20.1 L
Transmission
8 forward and 4 reverse
Operating Weight
853 lbs 386 kg

Overview

Gravely 14-G tractor photo
1992 - 2000 Model year 1992-19981999-2000 Professional G SeriesGarden tractor Professional G Series Garden tractor
Production
Manufacturer
Gravely
Garden tractor
Gravely 14-G Engine
14HP Kohler 398cc 1-cyl gasoline
Fuel tank
5.3 gal 20.1 L
Engine details ...
Gravely 14-G Transmission
8-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.
Dimensions & Tires
Wheelbase
52.3 inches 132 cm
Weight
853 lbs 386 kg
Front tire
16x6.50-8
Rear tire
23x8.50-12
Full dimensions and tires ...
Electrical
Ground
negative
Charging amps
15
Battery volts
12
Battery AH
42
Battery Group
22F
References
14-G references literature
Riding Tractors published in 1991, by Gravely
Operator's Manual G Series (53213) published in 1992
Service Manual Professional-G Series (26793B)

Engine

Engine Detail — 398 cc / 24.3 ci Gasoline

Manufacturer
Kohler CH14S
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled horizontal shaft
Displacement
398 cc 24.3 ci
Bore/Stroke
3.43x2.64 inches 87 x 67 mm
Power (gross)
14 hp 10.4 kW
Rated RPM
3300
Starter
electric
Starter volts
12
Oil capacity
2 qts 1.9 L

Transmission

Transmission — 8 forward and 4 reverse shaft-driven gear

Type
shaft-driven gear
Gears
8 forward and 4 reverse
Oil capacity
6 qts 5.7 L
Oil type
SC10W-30
14-G shaft-driven gear speeds
SC10W-30

Dimensions

Gravely 14-G Tires
Lawn/turf front
16x6.50-8
Lawn/turf rear
23x8.50-12
Dimensions
Wheelbase
52.3 inches 132 cm
Length
82 inches 208 cm
Width
41.5 inches 105 cm
Height
51 inches 129 cm
Weight
853 lbs 386 kg

Attachments

Attachment overview
40" mid-mount mower deck
50" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

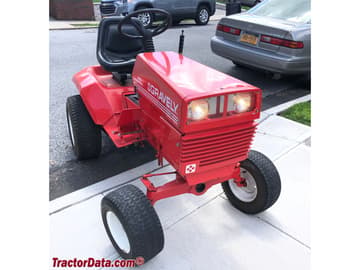

Gravely 14-G

Gravely 14-G

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Gravely Lawn Tractors Gravely 14-G.

Estimated Continuous Field Runtime: 7.3 hrs

Approximately 7.3 hours of continuous field operation at ~75% rated power on a full tank (5.3 gal / 20.1 L).

Estimated 75% Load Fuel Burn~0.7 gal/hr (2.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Gravely Lawn Tractors Gravely 14-G Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Gravely Lawn Tractors Gravely 14-G.

Converted Equivalents:

Horsepower (HP)14 hp
Kilowatts (kW)10.4 kW
Metric Horsepower (PS / CV)14.2 PS
