Gravely 432
The Gravely 432 is a tractor produced by Gravely Lawn Tractors. It is equipped with a 512 cc 31.27 ci engine. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: Swiftamatic 8. Operating weight: 900 lbs 408 kg.
Overview
 | 1967 - 1972
400 SeriesGarden tractor
400 Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Gravely |
Garden tractor | |
Gravely 432 Engine | |
|---|---|
14HP Kohler 512cc 1-cyl gasoline | |
Fuel tank | 5 gal
18.9 L |
Engine details ...  | |
Gravely 432 Transmission | |
|---|---|
4-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Mechanical band brakes | |
Open operator station. | |
Tractor hitch | |
|---|---|
Type | sleeve hitch OptOptional |
Dimensions & Tires | |
|---|---|
Wheelbase | 46 inches
116 cm |
Weight | 900 lbs
408 kg |
Front tire | 16-6.50x6 |
Rear tire | 23-8.50x12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Owner's Manual 424 - 430 - 432 (14535P1) published in 1969 | |
Service Manual 424, 430, 432, and 450 (14535P1) published in 1972 | |
Gravely '70 published in 1970 | |
The Great Gravely Durability published in 1972 |
Engine
Engine Detail — 512 cc / 31.27 ci Gasoline
Manufacturer | Kohler K321 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Displacement | 512 cc
31.27 ci |
Bore/Stroke | 3.25x3.50 inches
83 x 89 mm |
Power (gross) | 14 hp
10.4 kW |
Air cleaner | single dry element |
Rated RPM | 3600 |
Starter volts | 12 |
Sparkplug | Champion H-10 |
Sparkplug gap | 0.025 inches
0.635 mm |
Intake valve clearance | 0.009 inches (cold)
0.229 mm |
Exhaust valve clearance | 0.018 inches (cold)
0.457 mm |
Oil capacity | 2.5 qts
2.4 L |
Transmission
Transmission — Swiftamatic 8
Transmission | Swiftamatic 8 |
Type | shaft-driven gear |
Gears | 4 forward and reverse |
Clutch | friction cone |
Oil capacity | 5 qts
4.7 L |
Oil type | SAE 90W-EP |
Two-speed shift-on-the-move affects transmission and PTO speed. Additional two-speed range for transmission can be shifted only when stopped. Right-hand directional clutch lever controls forward and reverse. | |
Dimensions
Gravely 432 Tires | |
|---|---|
Lawn/turf front | 16-6.50x6 |
Lawn/turf rear | 23-8.50x12 |
Dimensions | |
|---|---|
Wheelbase | 46 inches
116 cm |
Length | 75.5 inches
191 cm |
Width | 36.25 inches
92 cm |
Height | 43 inches
109 cm |
Shipping weight | 900 lbs
408 kg |
Clearance (front axle) | 10 inches
25 cm |
Clearance (rear axle) | 6.375 inches
16 cm |
Front tread | 30.5 inches
77 cm |
Rear tread | 28 inches
71 cm |
Attachments
Attachment overview | |
|---|---|
40" mid-mount mower deck | |
50" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

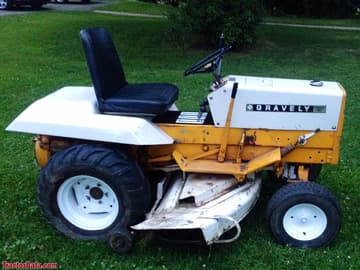

Gravely 432 with mower deck.
Gravely 432 commercial garden tractor.
Gravely 432 commercial garden tractor.
Gravely 432 commercial garden tractor.
Gravely 432 commercial garden tractor.
Gravely 432 commercial garden tractor.
Gravely 432 commercial garden tractor.
Gravely 432 operator station and controls.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Gravely Lawn Tractors Gravely 432.
Estimated Continuous Field Runtime: 6.9 hrs
Approximately 6.9 hours of continuous field operation at ~75% rated power on a full tank (5 gal / 18.9 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Gravely Lawn Tractors Gravely 432 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Gravely Lawn Tractors Gravely 432.
Converted Equivalents:
