Gray Tractor 22-40 Canadian Special
The Gray Tractor 22-40 Canadian Special is a tractor produced by Gray Tractor. It is equipped with a 491 ci 8.0 L engine. Transmission: 2 forward and 1 reverse. Drive type: 3x1 drum drive. Operating weight: 6900 lbs 3129 kg.
Drive & Traction
3x1 drum drive
Fuel & Capacities
Gasoline
Transmission
2 forward and 1 reverse
Operating Weight
6900 lbs
3129 kg
Gray Tractor 22-40 Canadian Special Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1923 - 1927
Standard-tread tractor |
|---|---|
1923 - 1927 | |
Standard-tread tractor | |
Production | |
|---|---|
Manufacturer | Gray Tractor |
Standard-tread tractor | |
Built in Minneapolis, Minnesota, USA | |
Original price was $2,385 in 1925 | |
Gray Tractor 22-40 Engine | |
|---|---|
Waukesha 8.0L 4-cyl gasoline | |
Engine details ...  |
Gray Tractor 22-40 Transmission | |
|---|---|
2-speed gear | |
Transmission details ...  |
Gray Tractor 22-40 Power | |
|---|---|
Drawbar (claimed) | 22 hp
16.4 kW |
Belt (claimed) | 40 hp
29.8 kW |
Plows | 4 |
Mechanical | |
|---|---|
Drive | 3x1 drum drive |
Manual steering | |
Open operator station. | |
Dimensions & Tires | |
|---|---|
Weight | 6900 lbs
3129 kg |
Front tire | 40x8 |
Rear tire | 54x54 |
Full dimensions and tires ...  | |
Belt Pulley | |
|---|---|
Diameter | 11.375 inches
28 cm |
Width | 8.125 inches
20 cm |
Speed | 2850 ft/min
868.68 meters/min |
Engine
Engine Detail — 491 ci / 8.0 L Gasoline
Manufacturer | Waukesha EU |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled inline |
Displacement | 491 ci
8.0 L |
Bore/Stroke | 5.00x6.25 inches
127 x 159 mm |
Rated RPM | 1000 |

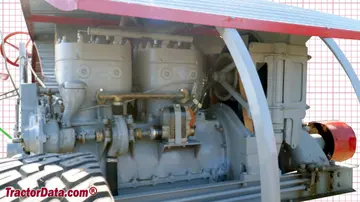

Gray Tractor 22-40 Engine | |
|---|---|
 | |
Image courtesy of Ronald Tulacz |
Transmission
Transmission — 2 forward and 1 reverse gear
Type | gear |
Gears | 2 forward and 1 reverse |
 | |
Dimensions
Gray Tractor 22-40 Tires | |
|---|---|
Ag front | 40x8 steel |
Ag rear | 54x54 steel |
Dimensions | |
|---|---|
Length | 173 inches
439 cm |
Width | 80 inches
203 cm |
Height | 64.5 inches
163 cm |
Weight | 6900 lbs
3129 kg |
Photos
Gray 22-40 Canadian Special tractor.
