Hesston 766

The Hesston 766 is a tractor produced by Hesston. It is equipped with a 224 ci 3.7 L engine. Transmission: 12 forward and 4 reverse. Drive type: 4x2 2WD. Operating weight: 5,800 lbs 2630 kg.

Drive & Traction
4x2 2WD
Fuel & Capacities
Diesel
Transmission
12 forward and 4 reverse
Operating Weight
5,800 lbs 2630 kg

Hesston 766 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

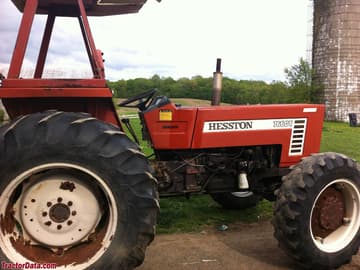

Hesston 766 tractor photo
1983 - 1984 Utility tractor
1983 - 1984
Utility tractor
Production
Manufacturer
Hesston (a part of Fiat)
Utility tractor
Built in Modena, Italy
Original price
$22,650 (1984)
Variants
766DT
4WD
766HC
high-crop
Hesston 766 Engine
Fiat 3.7L 4-cyl diesel
Engine details ...
Hesston 766 Transmission
12-speed
Transmission details ...
Hesston 766 Power
PTO (claimed)
70 hp 52.2 kW
Mechanical
Drive
4x2 2WD
4x4 MFWD 4WD (766DT)
Four-post ROPS standard. Optional canopy.
Hydraulics
Type
open center
Valves
1
Tractor hitch
Rear Type
II
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540
Dimensions & Tires
Weight
5,800 lbs 2630 kg
Front tire
7.50-18
Rear tire
18.4-30
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12

Engine

Engine Detail — 224 ci / 3.7 L Diesel

Manufacturer
Fiat
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
224 ci 3.7 L
Bore/Stroke
4.05x4.33 inches 103 x 110 mm
Rated RPM
2500
Starter
electric
Starter volts
12

Transmission

Transmission — 12 forward and 4 reverse

Gears
12 forward and 4 reverse

Dimensions

Hesston 766 Tires
Ag front
7.50-18
Ag rear
18.4-30
Dimensions
Weight
5,800 lbs 2630 kg
