Hiller Yard Hand 100
The Hiller Yard Hand 100 is a tractor produced by Hiller Lawn Tractors. It is equipped with a 59 cc 3.61 ci engine. The listed engine power is Gasoline (listed): 1.7 hp / 1.3 kW. Transmission: 2 forward and 0 reverse. Drive type: 3x2 2WD. Operating weight: 131 lbs 59 kg.
Engine Power
Gasoline (listed): 1.7 hp / 1.3 kW
Drive & Traction
3x2 2WD
Fuel & Capacities
0.25 gal
0.9 L
Transmission
2 forward and 0 reverse
Operating Weight
131 lbs
59 kg
Overview
 | 1953 - 1955
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Hiller |
Lawn tractor | |
Built in Redwood City, California, USA | |
Original price was $234 in 1953 | |
Hiller Yard Hand 100 Engine | |
|---|---|
1.7HP Power Products 59cc 1-cyl gasoline | |
Fuel tank | 0.25 gal
0.9 L |
Engine details ...  | |
Hiller Yard Hand 100 Transmission | |
|---|---|
2-speed belt-drive | |
Transmission details ...  |
Mechanical | |
|---|---|
Drive | 3x2 2WD |
Steering | manual |
Open operator station with steel pan seat. | |
Dimensions & Tires | |
|---|---|
Weight | 131 lbs
59 kg |
Full dimensions and tires ...  | |
Engine
Engine Detail — 59 cc / 3.61 ci Gasoline
Manufacturer | Power Products 170 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Two-stroke engine. | |
Displacement | 59 cc
3.61 ci |
Bore/Stroke | 1.75x1.50 inches
44 x 38 mm |
Power | 1.7 hp
1.3 kW |
Rated RPM | 3400 |
Starter type | manual recoil |
Transmission
Transmission — 2 forward and 0 reverse belt-drive
Type | belt-drive |
Gears | 2 forward and 0 reverse |
Clutch | mechanical idler pulley |
Belt drive from flywheel to rear axle. Speed changes are accomplished by moving belt from between pulley sets. | |
 | |
Dimensions
Hiller Yard Hand 100 Tires | |
|---|---|
Ag front | 10x3.50-4 |
Ag rear | 14x4.50-6 |
Dimensions | |
|---|---|
Length | 45 inches
114 cm |
Width | 27 inches
68 cm |
Height | 36 inches
91 cm |
Weight | 131 lbs
59 kg |
Attachments
Attachment overview | |
|---|---|
The Yard Hand was offered with several pull-type attachments. A 20-inch reel mower with optional grass catcher, a 390-pound lawn roller, a dump cart (200 pound capacity), and a 24-inch drop-spreader for seed or fertilizer. A 10-inch circular saw kit could be mounted on the hood and driven off the tractor's engine. A Life Magazine feature showed an exhaust-mounted insecticide fogger, sickle-bar hedge trimmer, and three-gang rear mower as future attachments but it is unclear if they made it into production. |
20" Mower deck | |
|---|---|
Type | towed rear-mount Yard Hand |
Cutting width | 20 inches
50 cm |
Photos

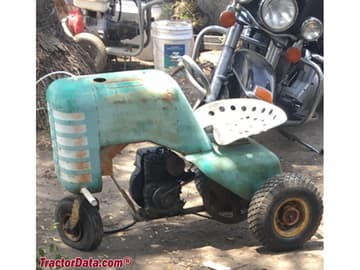

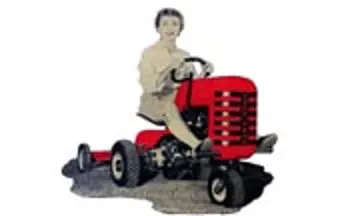

Hiller Yard Hand 100
