Hinomoto NX220
The Hinomoto NX220 is a tractor produced by Hinomoto. It is equipped with a 89.3 ci 1.5 L engine. The listed engine power is Diesel (listed): 21.7 hp / 16.2 kW. Transmission: 16 forward and reverse. Operating weight: 2414 to 2745 pounds.
Engine Power
Diesel (listed): 21.7 hp / 16.2 kW
Fuel & Capacities
7.1 gal
26.9 L
Transmission
16 forward and reverse
Operating Weight
2414 to 2745 pounds
Overview
 | 1993 - 1995
NX SeriesCompact Utility tractorKubota built
NX Series
Compact Utility tractor
Kubota built |
|---|
Series map: NX200NX220NX24014.7kw16.2kw17.7kw
Note: the Hinomoto model NX220 is the same as the Kubota GL220. The following data is from the GL220 listing. |
Production | |
|---|---|
Distributor | Hinomoto |
Manufacturer | Kubota |
Compact Utility tractor | |
Hinomoto NX220 Engine | |
|---|---|
Kubota 1.5L 3-cyl diesel | |
Fuel tank | 7.1 gal
26.9 L |
Engine details ...  | |
Hinomoto NX220 Power | |
|---|---|
Engine | 21.7 hp
16.2 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Mechanical wet disc brakes | |
Two-post ROPS. Cab optional. |
Tractor hitch | |
|---|---|
Rear Type | I |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 546/772/947/1254 (1.375) |
Dimensions & Tires | |
|---|---|
ROPS Wheelbase | 61 inches
154 cm |
Cab Wheelbase | 62.4 inches
158 cm |
Weight | 2414 to 2745 pounds |
Front tire | 6-14 |
Rear tire | 9.5-22 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Series map: NX200NX220NX24014.7kw16.2kw17.7kw
Note: the Hinomoto model NX220 is the same as the Kubota GL220. The following data is from the GL220 listing. |
Engine Detail — 89.3 ci / 1.5 L Diesel
Manufacturer | Kubota D1463 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 89.3 ci
1.5 L |
Bore/Stroke | 3.23x3.64 inches
82 x 92 mm |
Power | 21.7 hp
16.2 kW |
Rated RPM | 2500 |
Starter | electric |
Starter volts | 12 |
Transmission
Series map: NX200NX220NX24014.7kw16.2kw17.7kw
Note: the Hinomoto model NX220 is the same as the Kubota GL220. The following data is from the GL220 listing. |
Transmission options | |
|---|---|
16-speed gear | |
16-speed power shift |

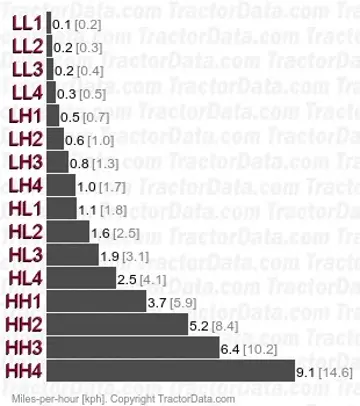

Transmission — 16 forward and reverse gear
Type | gear |
Gears | 16 forward and reverse |
Clutch | dry disc |
Four gears (1-4) in two ranges (low/high) with additional creeper range and shuttle shift. | |
 | |
Transmission — 16 forward and reverse power shift
Type | power shift |
Gears | 16 forward and reverse |
Dimensions
Series map: NX200NX220NX24014.7kw16.2kw17.7kw
Note: the Hinomoto model NX220 is the same as the Kubota GL220. The following data is from the GL220 listing. |
Hinomoto NX220 Tires | |
|---|---|
Standard tires (ag) | Front: 6-14. Rear: 9.5-22 |
Dimensions | |
|---|---|
ROPS Wheelbase | 61 inches
154 cm |
Cab Wheelbase | 62.4 inches
158 cm |
ROPS Length | 116.1 inches
294 cm |
Cab Length | 118.3 inches
300 cm |
ROPS Width | 49.2 inches
124 cm |
Cab Width | 51.2 inches
130 cm |
Height (ROPS) | 77 inches
195 cm |
Height (cab) | 77.6 inches
197 cm |
ROPS Weight | 2414 lbs
1094 kg |
Cab Weight | 2745 lbs
1245 kg |
Ground clearance | 13.2 inches
33 cm |
Front tread | 37.4 inches
94 cm |
Rear tread | 39.8/44.5 inches
101/113 cm |
Photos
Hinomoto NX220 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Hinomoto NX220 based on its 21.7 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Hinomoto NX220.
Estimated Continuous Field Runtime: 6.3 hrs
Approximately 6.3 hours of continuous field operation at ~75% rated power on a full tank (7.1 gal / 26.9 L).
Estimated 75% Load Fuel Burn~1.1 gal/hr (4.3 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Hinomoto NX220 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Hinomoto NX220.
Converted Equivalents:
Horsepower (HP)21.7 hp
Kilowatts (kW)16.2 kW
Metric Horsepower (PS / CV)22 PS
Direct Competitor Comparison
Compare Hinomoto NX220 against same-era industry alternatives in the same horsepower class.
Current Model
Hinomoto
Hinomoto NX220
Engine Power:Diesel (listed): 21.7 hp / 16.2 kW
★ Baseline Reference
