Homelite CT-10

The Homelite CT-10 is a tractor produced by Homelite Lawn Tractors. It is equipped with a 399 cc 24.36 ci engine. The listed engine power is Gasoline (gross): 10 hp / 7.5 kW. Transmission: 3 forward and 1 reverse. Operating weight: 480 lbs 217 kg.

Overview

	1974 - 1976 Garden tractorSimplicity built Garden tractor Simplicity built

Production
Distributor	Homelite (a part of Textron)
Manufacturer	Simplicity
Garden tractor
Original price was $1,450 in 1975

Variants
Broadmoor 5010	similar Simplicity model

Homelite CT-10 Engine
10HP Briggs & Stratton 399cc 1-cyl gasoline
Engine details ...

Homelite CT-10 Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	mechanical

Dimensions & Tires
Weight	480 lbs 217 kg
Front tire	5.30/4.50-6
Rear tire	18x9.50-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 399 cc / 24.36 ci Gasoline

Manufacturer	Briggs & Stratton 251707
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	399 cc 24.36 ci
Bore/Stroke	3.4375x2.625 inches 87 x 67 mm
Power (gross)	10 hp 7.5 kW
Starter	electric
Starter volts	12

Transmission

Transmission — 3 forward and 1 reverse belt-driven gear

Type	belt-driven gear
Gears	3 forward and 1 reverse

Dimensions

Homelite CT-10 Tires
Lawn/turf front	5.30/4.50-6
Lawn/turf rear	18x9.50-8

Dimensions
Weight	480 lbs 217 kg

Attachments

Attachment overview
36" mid-mount mower deck
42" mid-mount mower deck
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

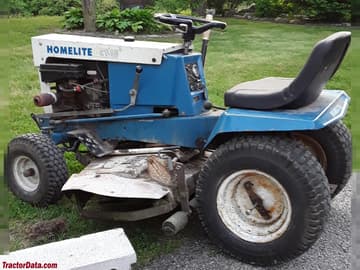

Homelite CT-10
